True 24-bit A/D conversion: UV22:
The AD- There's nothing like Apogee's exclu-
8000 features true 24-bit accuracy and simply sive UV22 encoding process—taking your 24-
stunning technical specifications. Like –110 dB bit digital signal and translating it flawlessly
THD+Noise. 114 dB dynamic range. A frequency into the 20- or 16-bit domains. UV22 is stan-
response that's flat from 20 Hz to 20 kHz
dard in the vast majority of US mastering
±0.025 dB. No wonder the AD-8000 sounds
houses, and a great many hit records have
so good. been made with the process.
Sync Options: Option Card Slot:
44.1 and 48 kHz crystal-
locked sample frequencies, plus "pull-up" and bit stereo D/A or even a full 24-bit, 8-channel
"pull-down" settings for video/film transfers. D/A converter, engineered to the same exact-
The AD-8000 "smart syncs" to any input sig- ing standards as the rest of the unit. With on-
nal, via Apogee's proprietary Low Jitter Clock, board D/A conversion, the AD-8000 may be
in the range 32 to 54 kHz—including video all the converter you need!
with the optional video sync card.
T ' in the digital recording chain
HERE S NOTHING MORE IMPORTANT
than the converter that takes your original analog input signal
and converts it into digital information. The higher the quali-
ty of the A/D converter, the better the sound. It's as simple as
that. So when we decided to create a new conversion system, we
knew we had to listen – and listen hard.
Apogee's engineering team worked with Apogee's Advisory
Board, which includes some of the top names in the
industry. Each contributed ideas and suggestions from
their own area of expertise: mixer/producer Bob
Clearmountain; mastering maestro Bob Ludwig; top film

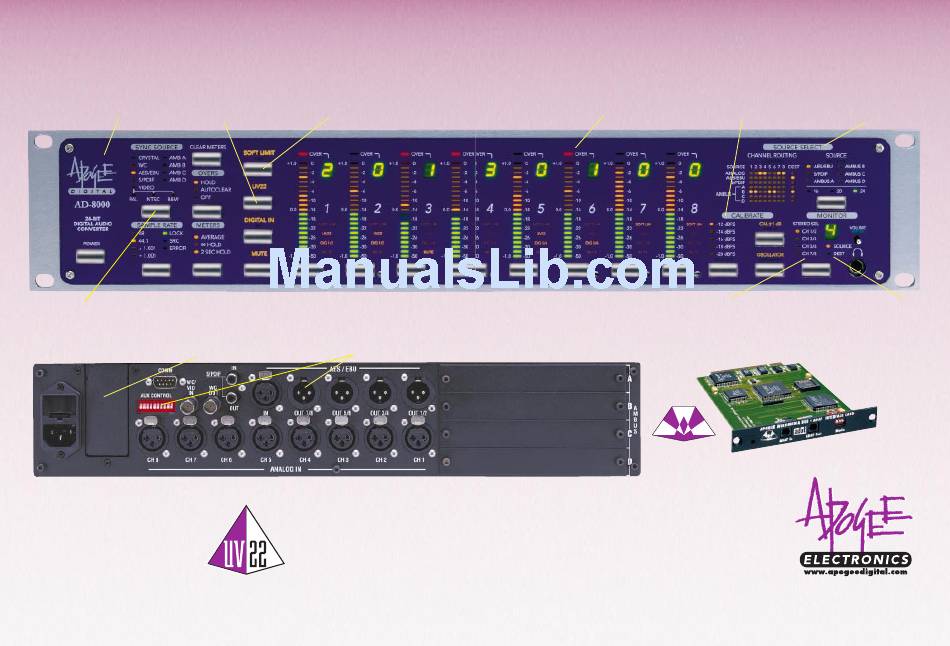

The AD-8000 8-channel 24—bit converter. From Apogee. The AD-8000 8-channel 24—bit converter. From Apogee.
A E C
POGEE LECTRONICS ORPORATION
Trademarks and registered trademarks are the property of their respective owners. AMBus is a trademark, and UV22 and Soft Limit are registered trademarks, of Apogee Electronics Corporation.
L
L
MPORTANT INK
MPORTANT INK
Soft Limit:
Apogee's proprietary Soft Limit
circuitry, available on every channel of the
AD-8000, enables you to get more level on to
tape without risking digital "overs".
Per-channel indication shows when a signal
is activating the Soft Limit circuit.
Built-in Functionality:
Install an optional 24-
AES/EBU and S/PDIF inputs and outputs, plus
Word Clock I/O. Rear-panel DIP switches
define pin 2/3 hot, analog/digital DC removal,
"Over" definition, UV22 resolution (16/20 bit
output), line levels (–10dBV or +4dBu, bal-
anced or unbalanced) and other settings.
composer David Newman; producer Don Was; songwriter/producer
Steve Kipner; guitarist Steve Stevens; and Tony Berg, producer/A&R
at Geffen Records. And as each prototype left the lab, Board mem-
bers submitted it to extensive listening tests, refining and opti-
mizing the design.
The result was the AD-8000 – a conversion system truly
without parallel.
The AD-8000 takes digital conversion to a whole new
level. It's a true 24-bit converter, with 114 dB dynamic
range and all the features you need. Whether you own
the biggest studio in town, a leading post-production facility,
