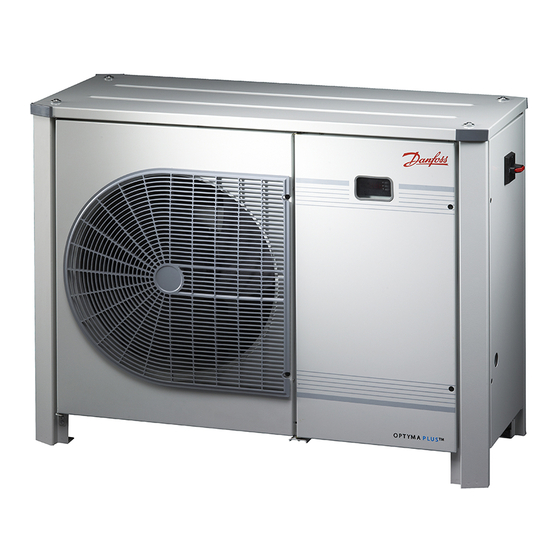

- Page 1 Instructions OP-LPHM018-026 & OP-MPHM007-010-012-015-018 OP-LPHM048-068 & OP-MPHM026-034 & OP-MPUM034-046 & OP-MPGM034 FRCC.EI.019.A2.ML © Danfoss Commercial Compressors 06/12...

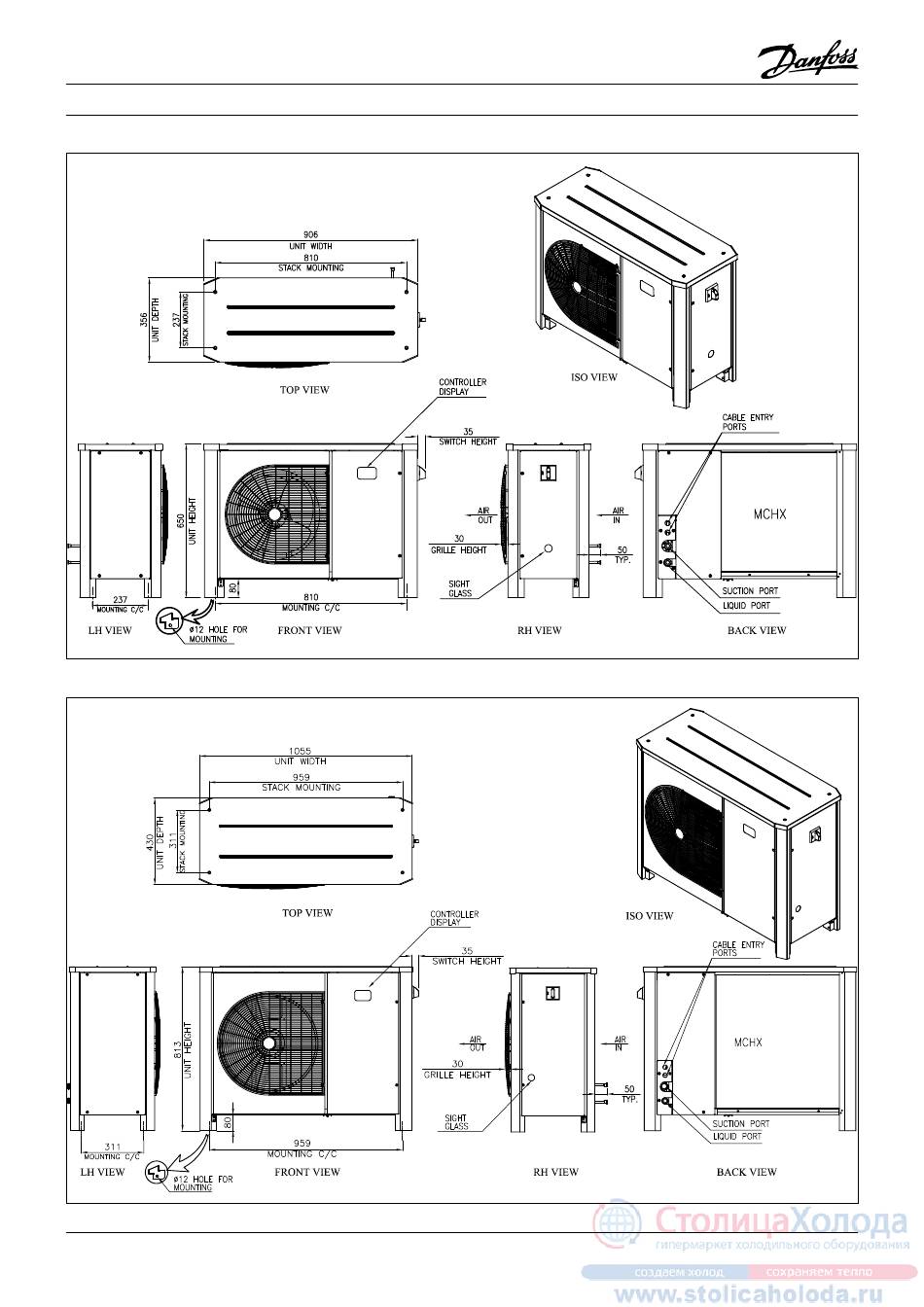

- Page 2 TOP VIEW CONTROLLER CABLE ENTRY DISPLAY PORTS SWITCH HEIGHT MCHX TYP. SIGHT SUCTION PORT GLASS 1702 LIQUID PORT MOUNTING C/C MOUNTING C/C Ø12 HOLE FOR RH VIEW BACK VIEW LH VIEW FRONT VIEW MOUNTING FRCC.EI.019.A2.ML © Danfoss Commercial Compressors 06/12...
- Page 3 Temperature value for suction pressure. Push lower button to switch to tempera- ture value for condensing pressure Picture 3 : Electronic controller display Picture 4 : Normal wiring Picture 5 : Temporary wiring Picture 6: Fan blade position FRCC.EI.019.A2.02 © Danfoss Commercial Compressors 06/12...
- Page 4 • When installing units for HFC refrigerants, • Never use the compressor to evacuate the sys- • The remaining charge is done until the instal- use equipment speciically reserved for HFC lation has reached a level of stable nominal tem. FRCC.EI.019.A2.02 © Danfoss Commercial Compressors 06/12...
- Page 5 • Remove wire 22 (safety input DI3) and wire 24 ning the fan door. • Check compliance between unit and power • Remove surface dirt, leaves, ibres, etc. with (room thermostat DI1) and put them together FRCC.EI.019.A2.02 © Danfoss Commercial Compressors 06/12...
- Page 6 R4 : Auxiliary Temp. Sensor (optional) R5 : Crankcase Heater S1 : Room Thermostat (optional) Supply : Supply Fan : Fan Alarm : Alarm Comp. : Compressor CCH : Crankcase Heater Aux : Auxiliary FRCC.EI.019.A2.02 © Danfoss Commercial Compressors 06/12...
- Page 7 R4 : Auxiliary Temp. Sensor (optional) R5 : Crankcase Heater S1 : Room Thermostat (optional) X1 : Terminal Supply : Supply Fan : Fan Alarm : Alarm Comp. : Compressor CCH : Crankcase Heater Aux : Auxiliary FRCC.EI.019.A2.02 © Danfoss Commercial Compressors 06/12...
- Page 8 Aux : Auxiliary Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in speciications already agreed. All trade- marks in this material are property of the respective companies.
