AMX Modero MVP-7500 Quick Start Manual

Overview
The AMX MVP-7500 panel (FG5965-01) uses an internal wireless compact flash
card to communicate with a NetLinx Master via a standard 802.11g Wireless
Access Point. The MVP-7500 utilizes a 7.5" Color Passive LCD to display a 640
x 480 pixel image using over 4000 colors, and features programmable firmware
that can be upgraded via either the wireless card or the mini-USB port.
The MVP-7500 also features nine programmable external pushbuttons and two
sets of programmable LEDs. On the 4 available IR channels, this panel utilizes
both AMX IR frequencies (38 KHz or 455 KHz) and 2 additional user-defined IR
libraries.
For detailed installation, configuration, programming, file transfer, and operating
instructions refer to the MVP-7500 Modero ViewPoint Touch Panels Operation/
Reference guide, available on-line at www.amx.com (see Related Documents).
Directional pad w/center select button
Pushbuttons (4)
Stylus
C
Docking station interface connector

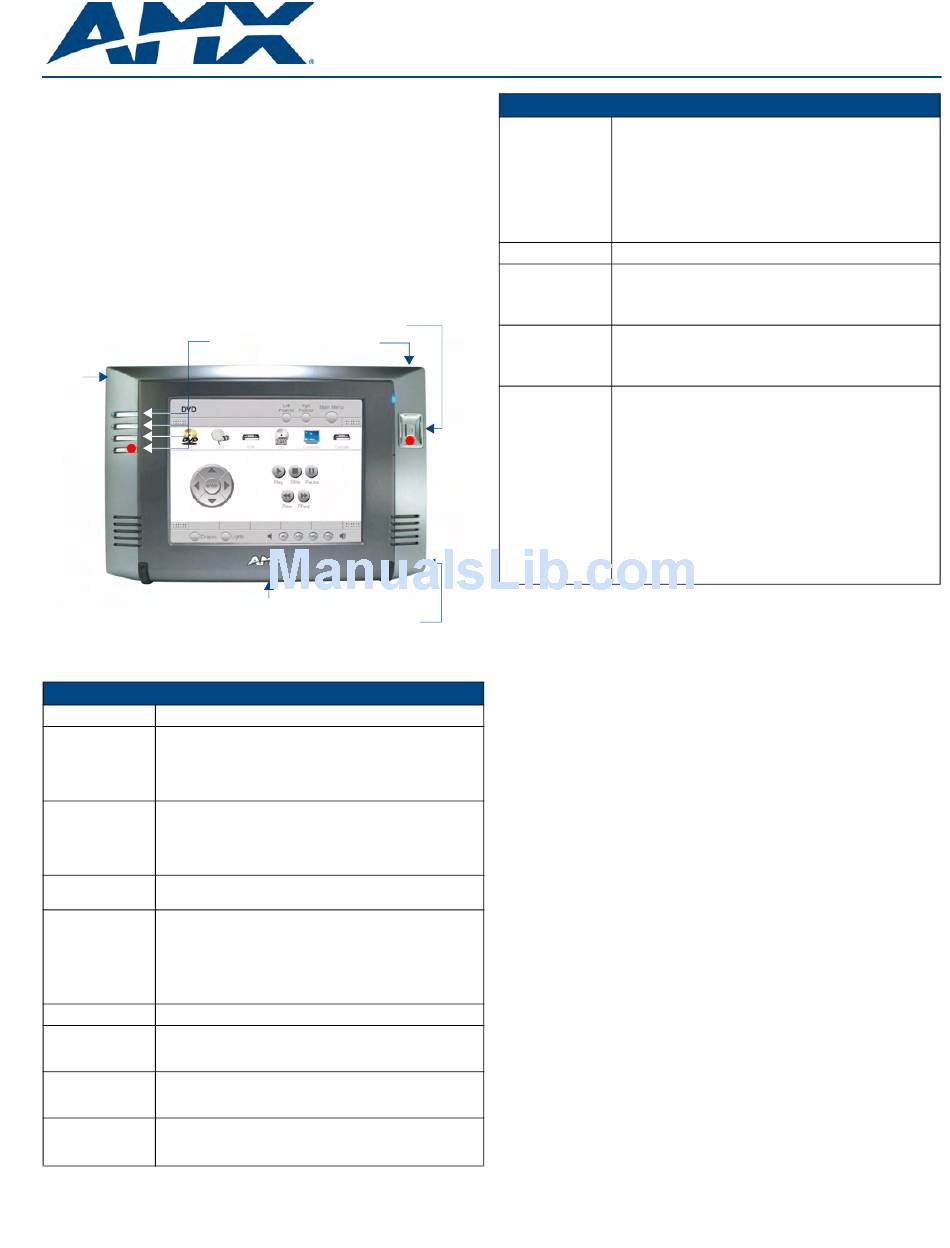

FIG. 1
MVP-7500 Touch Panel components
Specifications
MVP-7500 (FG5965-01) Specifications
Dimensions (HWD): • 7.17" x 10.47" x 1.34" (18.20 cm x 26.60 cm x 3.40 cm)
Power Requirement Panel with batteries fully charged or with no batteries:
(without charging):
• Constant current draw: 1.0 A @ 12 VDC
• Startup current draw: 1.5 A @ 12 VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the
above figures.
Power Requirement Panel while charging batteries:
(while charging):
• Constant current draw: 3.0 A @ 12 VDC
• Startup current draw: 3.6 A @ 12 VDC
• If panel is mounted onto a TDS or WDS, add 0.1 A to the
above figures.
Minimum power PS4.4 Power Supply (FG423-45)
supply required: - All MVP models are shipped with this power supply.
Power Modes: • ON: Panel is fully functional.
• STANDBY: Panel uses low power, the LCD/backlight is
shutdown, LEDs still function. Panel resumes the ON
mode in ~ 1 second.
• OFF: On-board programs not running, touch screen still
powered, LED not functional. Panel resumes the ON mode
in ~ 30 seconds.
Certifications: • FCC Part 15 Class B and CE
Battery Duration: • Four hours of normal use (25% On state, 25% Standby, and
50% Off).
• Two hours of continuous use (continuous On state).
Memory: • 64 MB SDRAM
• 64 MB Compact Flash (upgradable to 1 GB) - factory
programmed
Weight: • Panel (no batteries): 1.85 lbs (0.84 kg)
• Panel with one battery: 2.25 lbs (1.02 kg)
• Panel with two batteries: 2.65 lbs (1.20 kg)
MVP-7500
MVP-7500 Specifications (Cont.)
Screen Properties:
Viewing Angle:
Operating/Storage
Included
Mini-USB
connector
Other AMX
C
Connections and Wiring
The PS4.4 Power Supply (with barrel connector) provides power to the
Power connector
MVP-7500 either directly (via the power connector located on the lower right-
side of the panel) or indirectly (by routing incoming power through the Docking
Station's MVP Interface Connector).
Warning: Although firmware upgrades can be done over wireless Ethernet; it is
strongly recommended that firmware KIT files be transferred over a direct USB
connection and only when the panel is connected to a power supply. If battery
power or wireless connection fails during a firmware upgrade, the panel flash file
system may become corrupted.
Setup Pages
The panel is equipped with setup pages that allow you to set and configure
various features on the panel. Consult the MVP-7500 Modero ViewPoint Touch
Panels operation/reference guide for detailed information on the Setup pages.
Accessing The Protected Setup Page
1.
2.
3.
Setting the Panel's Device Number
In the Protected Setup page:
1.
2.
7.5" Modero ViewPoint Touch Panel
• Screen resolution: 640 x 480 pixels (HV) @ 60 Hz frame
frequency
• Aspect ratio: 4 x 3
• Brightness (luminance): 120 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 20:1
• Display colors: 4096 colors (12-bit color depth)
• Dot/pixel pitch: 0.23 mm
• Panel type: TFT Color Passive-Matrix
• Vertical: + 17° (up from center) and - 17° (down from center)
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
Environments: • Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
• Wireless Interface Compact Flash card (CF Type 1)
Accessories: • PS4.4 Power Supply (FG423-44)
• Stylus (pre-installed onto the left side of the unit)
• MVP-BP Power Pack (FG5965-20)
• CB-MVPWDS Conduit Box (FG037-10)
Equipment: • CC-USB Type A to mini-B programming cable (FG10-5965)
• MVP-BP battery (FG5965-20)
• MVP-KS Kickstand (FG5965-12)
• MVP-STYLUS three pack (FG5965-30)
• MVP-TDS Table Top Docking Station (FG5965-10)
• MVP-WDS Wall Docking Station - Black (FG5965-11)
• MVP-WDS Wall Docking Station - Silver (FG5965-21)
• MVP-WDS-SK Silver Conversion Kit (FG5965-22)
• Upgrade Compact Flash (pre-programmed with firmware):
NXA-84CF128M 128 MB compact flash card (FG2116-50)
NXA-84CF256M 256 MB compact flash card (FG2116-51)
NXA-84CF512M 512 MB compact flash card (FG2116-52)
NXA-84CF1GB 1 GB compact flash card (FG2116-53)
• Once the MVP is connected to a docking station; charging priority is first
given to any MVP-BP battery packs found within the MVP-7500 and then to
any other batteries inserted into the docking station's battery charging com-
partments.
Press down and hold both the bottom, left pushbutton and down on the
directional pad (indicated in FIG. 1) simultaneously for 3-5 seconds. This
opens the Setup page.
Press Protected Setup button on the Setup page. This opens a keypad for
password entry.
Enter the panel password into the keypad (default is 1988) and select
Done to access the Protected Setup page.
Press the Device Number field to open the Device Number keypad.
Enter a unique Device Number assignment for the panel, and press Done
to return to the Protected Setup page.
Press Reboot to reboot the panel, and apply the new Device Number.
