AMX NXT-CV7 Dimension Manual

.94 [24MM]
7.94 [202MM]
2.83 [72MM] 3.33 [84MM]
5.93 [151MM]
NOTICE: This drawing is the
property of AMX Corporation.
All information contained herein
that is not generally known
shall be confidential except
to the extent the information
has been previously established.
This drawing may not be copied,
reproduced, or used as the basis
for manufacture or sale without
written permission.
REV ECN
A 5534 RELEASED TO PRODUCTION
5.33 [135MM]
REL APPR REL DATE REV APPR
UNLESS OTHERWISE SPECIFIED:
DAS 10/16/03
DRAWN
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
MAB 10/27/03
XXX = .005 ENGR SERV
TOLERANCE ON HOLE DIAMETERS:
MAB 10/27/03
ENGINEER
UNDER .250 = +/- .005
.250 TO .500 = +.006 -.005
AVT 10/27/03
PROD ENGR
OVER .500 = +.008 -.005
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
JS 10/27/03
MATL SUP
ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
AK 10/27/03
QUALITY
ALL DIMENSIONS IN INCHES.
THIRD ANGLE
DO NOT SCALE THIS DRAWING.
PROJECTION
REVISIONS
DESCRIPTION DATE APPROVED
10/27/03
7.07 [180MM]
6.10 [155MM]

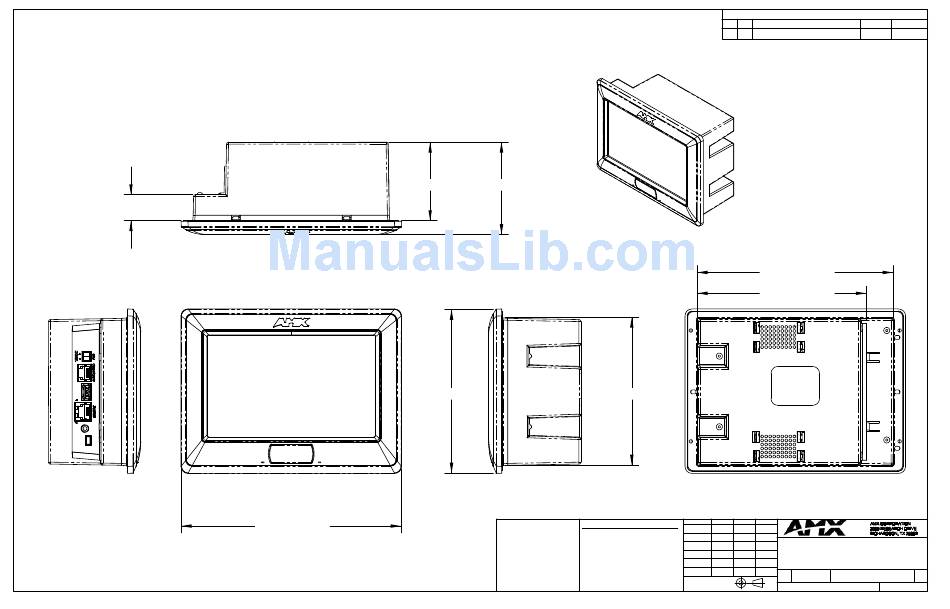

PICTORIAL, NXD-CV7, 7" MODERO
WALLMOUNT WIDESCREEN
VIDEO TOUCH PANEL W/O BUTTONS
SIZE DWG. NO. REV.
95-2258-03
SCALE: 1:2 A
B
SHEET 1 OF 1
95-2258-03
R:\MECH\DEV\_Zionop Level - 95 - SP - Creation \wall\ 95-2258-03
