  • Page 1 Megathon AMD Athlon PCI ISA ® ® Motherboard User's Guide MAN-804 2/9/00...
  • Page 2 Limited Warranty Buyer agrees if this product proves to be defective, that American Megatrends, Inc. is obligated only to replace or refund the purchase price of this product at American Megatrend's discretion according to the terms and conditions on the motherboard warranty card. American Megatrends shall not be liable in tort or contract for any loss or damage, direct, incidental or consequential.

  • Page 3: Table Of Contents

    Table of Contents Hardware Installation ... 1 Overview...1 Megathon PCI Motherboard Layout ...3 Installation Steps...4 Step 1 Unpack the Motherboard ...5 Avoid Static Electricity...5 Step 2 Clear CMOS RAM...6 Step 3 Install Memory...7 Step 4 Install CPU...9 Step 5 Connect CPU Fan...13 Step 6 Connect System Case Fan ...13...
  • Page 4 This manual describes the specifications and features of the Megathon PCI motherboard. It explains how to assemble a system based on the Megathon PCI motherboard and how to use the AMIBIOS that is specifically designed for this motherboard.

  • Page 5: Technical Support

    AMI or you purchased an AMI product from an unauthorized reseller, If an American Megatrends motherboard fails to operate as described or you are in doubt about a configuration option, please call technical support at 770-246- 8600.
  • Page 6 Megathon PCI Motherboard User’s Guide...

  • Page 7: Hardware Installation

    Overview The Megathon motherboard is powered by the AMD Athlon processors at speeds up to 600 MHz. The Megathon provides the high speed data transfer and data integrity required for graphics and audio applications, and supports Ultra DMA/33, and Ultra DMA/66.
  • Page 8 CPU External Clock Frequency 100 MHz 200 MHz Onboard I/O The Megathon AMD Athlon motherboard includes: two 40-pin IDE connectors for 1 – 4 IDE drives, a 34-pin floppy drive connector, two serial bus connectors, along with a connector, J4, to connect USB...

  • Page 9: Megathon Pci Motherboard Layout

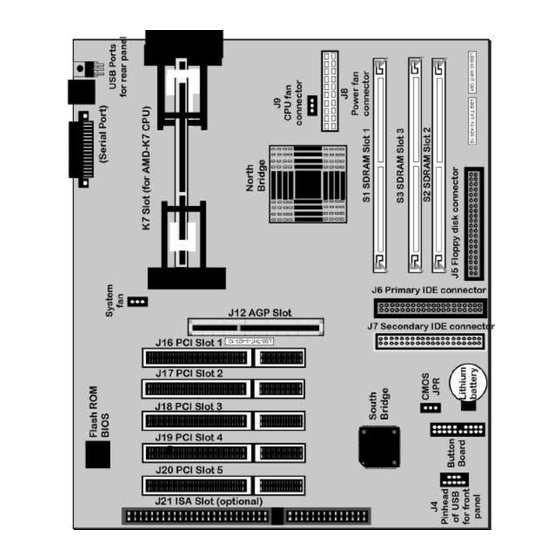

    Megathon PCI Motherboard Layout Chapter 1 Hardware Installation...

  • Page 10: Installation Steps

    Use the following steps to install the motherboard, memory, jumpers, and connectors. Step Unpack the motherboard. Clear CMOS RAM. Install memory. Install CPU. Connect CPU Fan. Connect System Case Fan. Install the motherboard. Attach cables. Connect I/O (input/output). Install drivers. Test and configure. Megathon PCI Motherboard User’s Guide Action...

  • Page 11: Step 1 Unpack The Motherboard

    Step 1 Unpack the Motherboard Step Inspect the cardboard carton for obvious damage. If damaged, call 770-246-8600. Leave the motherboard in its original packing. Perform all unpacking and installation procedures on a ground- connected anti-static mat. Wear an anti-static wristband grounded at the same point as the anti-static mat.

  • Page 12: Step 2 Clear Cmos Ram

    Set the jumper back to NORMAL: Turn the computer on. During bootup, hold the <Delete> key down to enter BIOS setup, where you can reset your preferences. Megathon PCI Motherboard User’s Guide Action Clear: Normal (default):...

  • Page 13: Step 3 Install Memory

    System memory must be PC100 Specification and populated one bank at a time. Each bank has one socket. The minimum amount of system memory supported by the Megathon PCI is 8 MB. Each socket can hold one DIMM. You can use: 8 MB 168-pin 3.3V SDRAM, 16 MB 168-pin 3.3V SDRAM,...
  • Page 14 DIMM facing you, firmly push the DIMM into the socket at an angle, then push it up. When properly inserted, the DIMM clicks into place as the latching pins engage. The DIMM installation process is shown below: Megathon PCI Motherboard User’s Guide...

  • Page 15: Step 4 Install Cpu

    Step 4 Install CPU The AMD Athlon CPU is on Slot A adapter cards. The CPU card fits into the Retention Mechanism Assembly in Slot A. The Retention Mechanism Assembly has folding arms to save space in shipping. Improper CPU installation can damage the CPU and the motherboard.
  • Page 16 CPU slot firmly. Pull the buttons outward until they click in the right position. Hook the heat sink top support to the heat sink support base to firmly hold the CPU module in place. Megathon PCI Motherboard User’s Guide Action Cont’d...
  • Page 17 Step 4 Install CPU, Continued Install the Heat Sink If the heat sink is not already installed on the CPU module, slide the heat sink top support into the lowest gap on the CPU module, as shown below: Then slide the CPU module into the Retention Mechanism Assembly, as shown below: Chapter 1 Hardware Installation Cont’d...
  • Page 18 Install the Heat Sink, cont’d Press the buttons on either side of the CPU module, as shown below: Hook the top support of the heat sink to the support base of the heat sink to complete the CPU module installation: Megathon PCI Motherboard User’s Guide...

  • Page 19: Step 5 Connect Cpu Fan

    Step 5 Connect CPU Fan J9 (shown below) is a 3-pin berg that connects the fan on the CPU heat sink to the motherboard power. J9 is located next to the ATX Power Connector. All AMD Athlon CPUs are shipped with a heat sink and a CPU fan. J9 and J11 are keyed in such a way that the CPU connector can be attached only in the correct manner.

  • Page 20: Step 7 Install The Motherboard

    If using metallic screws, make sure you use them only in the plated mounting holes. If using metallic screws, make sure the head of the screw fits completely inside the plated mounting holes. Megathon PCI Motherboard User’s Guide Action Warning...

  • Page 21: Step 8 Attach Cables

    Step 8 Attach Cables Connectors The Megathon PCI motherboard includes many connectors. Connection instructions, illustrations of connectors, and pinouts are supplied in the following pages. A list of all connectors described in this section follows: Connector Power supply connector Drain CMOS RAM power J3...
  • Page 22 Attach the cables from the power supply to the power connector(s) on the motherboard. ATX-compatible power supplies have one 20-pin connector, J8. The power connector pinout is: Description +3.3V -12V Ground -PWR_ON Ground Ground Ground Megathon PCI Motherboard User’s Guide Description +3.3V +3.3V Ground Ground Ground PWR+GOOD 5V_VR +12V Cont’d...
  • Page 23 Step 8 Attach Cables, Continued Drain CMOS RAM Power J3 J3 is a 3-pin berg that can be used to erase the contents of CMOS RAM, where all system configuration information is stored. The Normal (default) setting is: If you forget the AMIBIOS password, you can place a shorting bridge on this berg for a few seconds to erase the old password (and all system configuration information as well).

  • Page 24: Reset Switch

    Power Switch Connector This is a two-pin berg that is attached via a cable to an externally- mounted power switch. Power LED Connector This is a two-pin connector that attaches to a cable that connects to the hard disk LED mounted on the computer enclosure. The LED indicates data transfers. Megathon PCI Motherboard User’s Guide Cont’d...
  • Page 25 Step 8 Attach Cables, Continued Hard Drive LED Connector This is a two-pin connector that attaches to a cable that connects to the hard disk LED mounted on the computer enclosure. The LED indicates data transfers. Sleep LED Connector This is a two-pin connector that attaches to a cable that connects to the hard disk LED mounted on the computer enclosure.

  • Page 26: Step 9 Connect I/O

    AMIBIOS minimizes conflicts between onboard and offboard I/O devices. AMIBIOS automatically checks the adapter cards installed in the expansion slots on the Megathon PCI motherboard for a hard disk or floppy controller and serial or parallel ports. Megathon PCI Motherboard User’s Guide...
  • Page 27 Step 9 Connect I/O, Continued J22 Parallel Port J22 is a 25-pin D-Sub female connector for a parallel port. The J22 pinout is shown below. The parallel port interface supports: the standard Centronics-compatible parallel port, the ECP (Extended Capabilities Port), and the EPP (Enhanced Parallel Port) port.
  • Page 28 34-pin edge connectors for attaching the floppy disk drives. There is a small twist in the cable between the floppy connectors. The last (end) connector should be connected to floppy drive A: as shown below. Megathon PCI Motherboard User’s Guide Cont’d...

  • Page 29: Twist In Floppy Cable

    Step 9 Connect I/O, Continued Floppy Connector Pinout Twist in Floppy Cable Floppy B to A Floppy B to A 10 to 16 11 to 15 DENSE1 DRATE0 -INDEX -MOTOR0 -FDSEL1 -FDSEL0 -MOTOR1 -WDATA -WGATE -TRK0 -WRPROT -RDATA HDSEL DSKCHNG Floppy B to A Floppy B to A 12 to 14...
  • Page 30 Step 9 Connect I/O, Continued IDE Drives Attach the IDE drives in the following manner. Choose Peripheral Setup in AMIBIOS Setup to enable the onboard IDE controller. Megathon PCI Motherboard User’s Guide Cont’d...
  • Page 31 Step 9 Connect I/O, Continued Attach IDE Cable to J6 J6 is the primary IDE (Integrated Drive Electronics) hard disk drive connector. Both the primary master and the primary slave IDE drives must be connected by cable to J6, as shown below. J6 is a 40-pin dual-inline berg that connects an IDE drive to the primary onboard IDE connector.

  • Page 32: J6 Pinout

    J6 is the primary IDE connector. The J6 pinout is: -RESET DATA7 DATA6 DATA5 DATA4 DATA3 DATA2 DATA1 DATA0 -REQ -IOW -IOR IDERDY -ACK INT14 -CS0 -IDEACT Megathon PCI Motherboard User’s Guide DATA8 DATA9 DATA10 DATA11 DATA12 DATA13 DATA14 DATA15 KEY (N/C) Pulldown -CS1 Cont’d...

  • Page 33: Step 10 Install Drivers

    Step 9 Connect I/O, Continued J7 Secondary IDE Controller J7, the secondary IDE connector, is a 40-pin dual-inline berg that connects the secondary primary and slave IDE drives to the secondary onboard IDE controller. Attach the secondary master and slave IDE drives to J7 via a standard 40-pin IDE cable as shown on page 25.

  • Page 34: Step 11 Test And Configure

    Configure the System Run AMIBIOS Setup. You must enter the requested information and save the configuration data in NVRAM. The system will then reset, run POST, and boot the operating system. See the following chapter for information on configuring the computer. Megathon PCI Motherboard User’s Guide...

  • Page 35: Amibios Setup

    AMIBIOS Setup In ISA and PCI computers, the system parameters (such as amount of memory, type of disk drives and video displays, and many other elements) are stored in CMOS RAM. Unlike the DRAM (dynamic random access memory) that is used for standard system memory, CMOS RAM requires very little power.

  • Page 36: Amibios Main Setup Menu

    You can use this screen to change the system date and time, IDE hard disk, and the floppy disk drive types for drives A and B. AMIBIOS SETUP-STANDARD CMOS SETUP (C)1998 American Megatrends, Inc. All Rights Reserved Main Advanced...

  • Page 37: Primary Ide Master, Primary Ide Slave

    AMIBIOS Main Menu Setup, Floppy Drive A: and B: Move the cursor to these fields via settings are 360 KB 5¼ inch, 1.2 MB 5¼ inch, 720 KB 3½ inch, or 1.44 MB 3½ inch. Primary IDE Master, Primary IDE Slave, Secondary IDE Master, Secondary IDE Slave Select one of these hard disk drives to configure the hard disk drive named in the option.
  • Page 38 Possible VIRUS: Continue (Y/N)? _ The following appears after any attempt to format any cylinder, head, or sector of any hard disk drive via the BIOS INT 13 Hard Disk Drive Service: Format!!! Possible VIRUS: Continue (Y/N)? _ Megathon PCI Motherboard User’s Guide Continued...

  • Page 39: Advanced Setup

    Advanced Chipset Setup, and press <Enter>. The Setup Help section describes each of the Advanced Setup options. AMIBIOS SETUP-STANDARD CMOS SETUP (C)1998 American Megatrends, Inc. All Rights Reserved Main Advanced Security...

  • Page 40: Security Setup

    Security Setup You can use the Security Setup screen to set Supervisor and User passwords. The Security Setup screen displays as shown below. AMIBIOS SETUP-STANDARD CMOS SETUP (C)1998 American Megatrends, Inc. All Rights Reserved Main Advanced Security Set Supervisor Password...

  • Page 41: Security Setup

    Security Setup, Continued Two Levels of Password Protection AMIBIOS provides a Supervisor and a User password. You can set either a Supervisor or User password. If you do not want to use a password, press <Enter> when the password prompt displays. The system can be configured so that all users must enter a password every time the system boots or when AMIBIOS Setup is executed, using either or both the Supervisor password or User password.

  • Page 42: Set Supervisor Password

    The password is stored in NVRAM after AMIBIOS completes. The next time the system boots, a password prompt appears if the Password Check option is set to Always. Megathon PCI Motherboard User’s Guide...

  • Page 43: Exit Setup

    Exit Setup You can use the Exit Setup screen to exit, save or discard changes, or load different types of settings. The screen displays as shown below. AMIBIOS SETUP-STANDARD CMOS SETUP (C)1998 American Megatrends, Inc. All Rights Reserved Main Advanced Security...

  • Page 44: Load Original Values

    Load Original Values AMIBIOS will automatically set all AMIBIOS Setup options to your last set of previous settings. This is helpful if you change settings and decide that you want to return to the original settings. Megathon PCI Motherboard User’s Guide...

  • Page 45: Programming Flash Rom

    Programming Flash ROM All versions of the Megathon PCI motherboard use Flash EPROM to store the system BIOS. The advantage of Flash EPROM is the EPROM chip does not have to be replaced to update the BIOS. The end user can actually reprogram the BIOS, using a ROM file supplied by American Megatrends.

  • Page 46: S804P.rom

    S804P.ROM S804P.ROM resides on a floppy disk and contains the updated main BIOS code. American Megatrends will provide this file when the AMIBIOS for the Megathon PCI ISA motherboard must be updated. S804P.ROM must be present in the root directory of the floppy disk before the onboard Flash EPROM can be reprogrammed.
  • Page 47 Programming the Flash ROM, Beep Codes The bootblock code produces a series of beeps during Flash ROM programming to: signify completion of a step (as shown on the previous page), or to signal an error. Error beeps are arranged in a coded sequence and have different meanings depending on when they occur.

  • Page 48: Bootblock Code Checkpoint Codes

    Flash ROM. Detect the flash type. Start erasing flash blocks. Program the Flash ROM in the E0000-EFFFFh region. Start programming Flash at F0000-FFFFF region. Flash programming is successful. The computer reboots. Megathon PCI Motherboard User’s Guide Description...

  • Page 49: Deleting A Password

    Deleting a Password If you forget the passwords you set up through AMIBIOS Setup, the only way you can restart the computer is to erase the system configuration information where the passwords are stored. System configuration data is stored in CMOS RAM, a type of memory that consumes very little power.

  • Page 50: Avoid Static Electricity

    Make sure you stand on an anti-static mat when handling the motherboard. Avoid contact with any component or connector on any adapter card, printed circuit board, or memory module. Handle these components by the mounting bracket. Megathon PCI Motherboard User’s Guide...

  • Page 51: A Specifications

    Specifications Engineering Specifications Temperature Ranges The following values are ambient temperatures inside the computer case. The board temperatures reflect the dual AMD Athlon II CPU Heat dissipation requirements because they will be the hottest motherboard components. Temperature specifications vary with the CPU frequency. Frequency Heat Sink...
  • Page 52 Megathon PCI Motherboard User’s Guide...

  • Page 53: Index

    Index Advanced Setup, 33 AMD Athlon, 1 AMIBIOS Main Setup Menu, 30 AMIBIOS Password Support, 36 AMIBIOS Setup, 29 AMIFlash Beep Codes, 41 ARMD, 31 Auto-Detect Hard Disk, 32 BIOS Password Support, 35 BIOS Errors, 28 Board layout, 3 Boot Sector Virus Protection, 32 Bootblock Checkpoint Codes, 42 Cables...
  • Page 54 Password Deleting, 43 Password Support Levels of, 35 PCI Bus Speed, 2 Pinout Parallel Port, 21 Megathon PCI Motherboard User’s Guide Primary IDE connector, 26 Pinouts Reset Switch, 18 Power LED Connector, 18 Power Supply, 16 Connecting, 16 Power Switch Connector, 18...
  • Page 55 Index...
