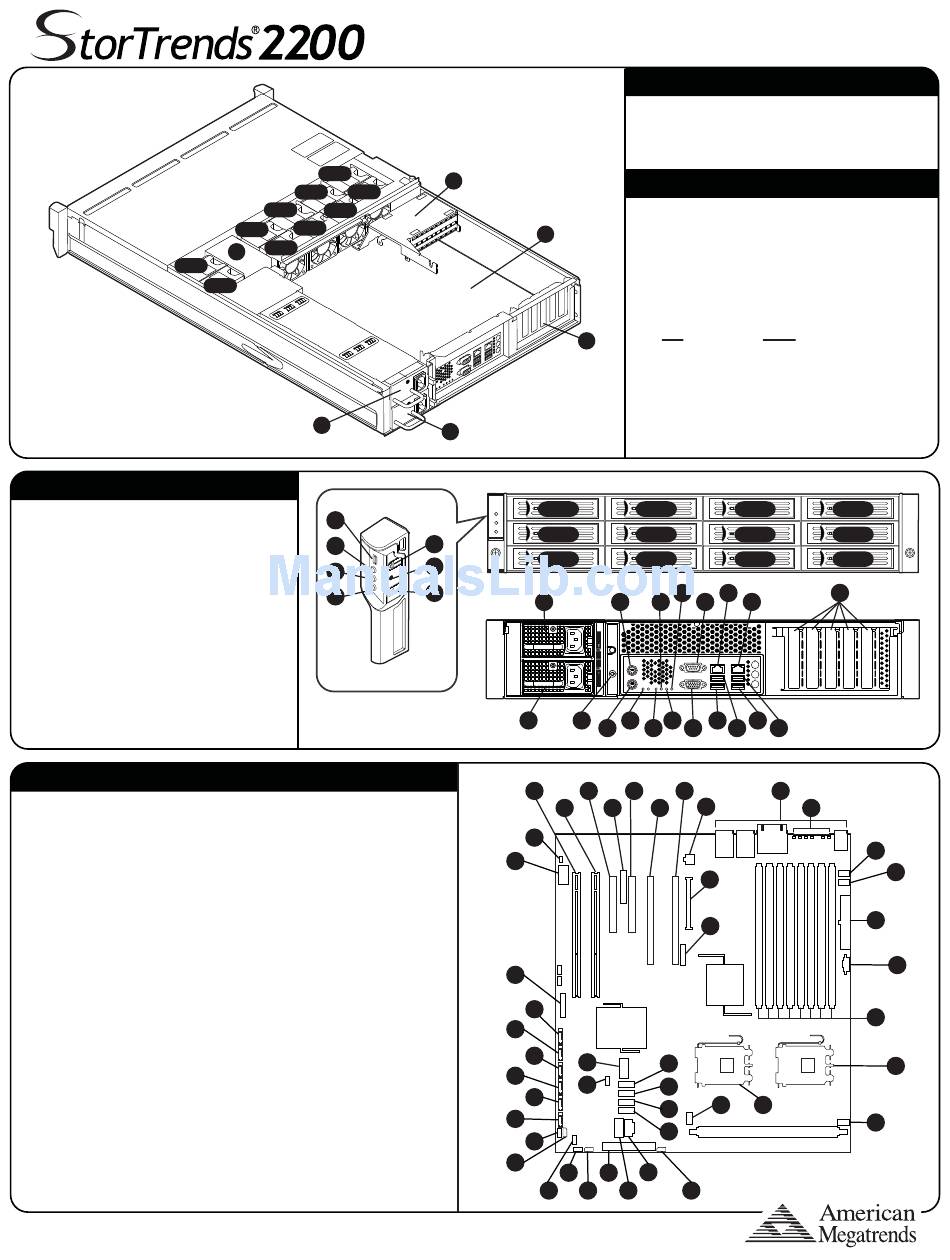

American Megatrends StorTrends 2200 Overview

Fan0
*Shown without Processor Air Duct
FRONT/ BACK
1 USB Port 16 Bit 1 (POST LED)
2 Power Active LED 17 LSB (POST LED)
3 Unit Fault LED 18 Serial Port
4 19
ID LED Video Port
5 On/ Off Switch 20 NIC Port 1 (1Gb)
6 Reset Button 21 NIC Port 2 (1Gb)
7 22
ID LED Activation Switch USB Port 3
8 23
Power Supply Unit 2 USB Port 2
9 Power Supply Unit 1 24 USB Port 1
10 ID LED 25
USB Port 0
11 26
PS2 Mouse Port Expansion Slots
12
PS2 Keyboard Port
13
System Status LED
14
MSB (POST LED)
15
Bit 2 (POST LED)
SERVERBOARD
1 PCI-X 64-bit, 100-MHz (slot 1)
2 PCI-X 64-bit, 100/133-MHz (slot 2)
3 PCI Express x4 (slot 3)
4 RMM NIC connector
5 PCI Express x4 (slot 4, ROMB)
6 PCI Express x8 (slot 5)
7 PCI Express x8 (slot 6)
8 P12V4 connector
9 Remote Management Module connector
10 CMOS battery
Back panel I/O ports
11
12 Diagnostic and Identity LEDs
System fan 6 header
13
System fan 5 header
14
15 Main power connector
16 Auxiliary power signal connector
17 FBDIMM sockets
18 Processor 1 socket
19 Processor 2 socket
20 Processor 1 fan header
21 Processor 2 fan header
System fan 4 header
22
23 System fan 3 header
System fan 2 header
24
System fan 1 header
25
Copyright 2008 American Megatrends Inc.
Overview
Fan8
Fan6 Fan9
Fan4
Fan7
Fan5
Fan2
Fan3
1
Fan1
6
1
2
3
4
FRONT PANEL
26 IPMB connector
27 Processor power connector
28 USB header
29 IDE connector
30 Enclosue Management SATA
SGPIO header
31 USB Port
32 Local Control Panel header
33 Hot-swap Backplane B header
34 Enclosure Management SAS
SGPIO header
Enclosure Management SAS SES2
35
Hot-swap Backplane A header
36
SATA 0
37
SATA 1
38
SATA 2 or SAS 0
39
SATA 3 or SAS 1
40
41 SATA 4 or SAS 2
42 SATA 5 or SAS 3
Front control panel header
43
44 Serial B / Emergency management
port header
45 Chassis intrusion header
Please refer to the StorTrends® 2200 User's Guide for detailed information.
2
3
4
5
Disk 0
Disk 4
5
Disk 8
6
7
8
9 10
12
1 3
2 4
45
44
43
42
41
40
31
39
30
38
37
36
35
33 29
34 32
INSIDE
1 SAS Expander card 4
2 Boot Drive 5
3 Server Board 6
LED Descriptions
