MACKIE.
Digital X bus Supermicro motherboard replacement installation guide
Overview:
The Supermicro P4spa+ is a replacement motherboard for the previously used Iwill P4se. The
Supermicro P4spa+ will use all of the previous peripheral components such as the P4 3.0 GHz
processor, Zalman heat sink, PC3200 RAM, and the ATI 9200 video card.
The only item that will not be used is the 16 pin flat ribbon. The 16 pin flat ribbon cabled was used
to connect the MIDI/Footswitch daughter board to the game port of the Iwill motherboard. This
connection will require a new conversion cable made with the correct pinout to correspond with
the Supermicro P4spa+.
Please read, and follow all installation
Instructions before proceeding.
• Keep the new motherboard in its protective anti-static bag until
the exact moment you are ready to use it.
• This repair requires opening your Digital X bus and handling sensitive electronic components.
Anti-static precautions must be taken in order to prevent damage to the unit or to the new
motherboard from electro-static discharge (ESD).
It is highly recommended that you read getting inside the digital X bus located at the link below.
http://www.mackie.com/products/digitalxbus/pdfs/Getting_Inside.pdf
Tools required:
In order to perform this procedure you will need to provide the tools listed below

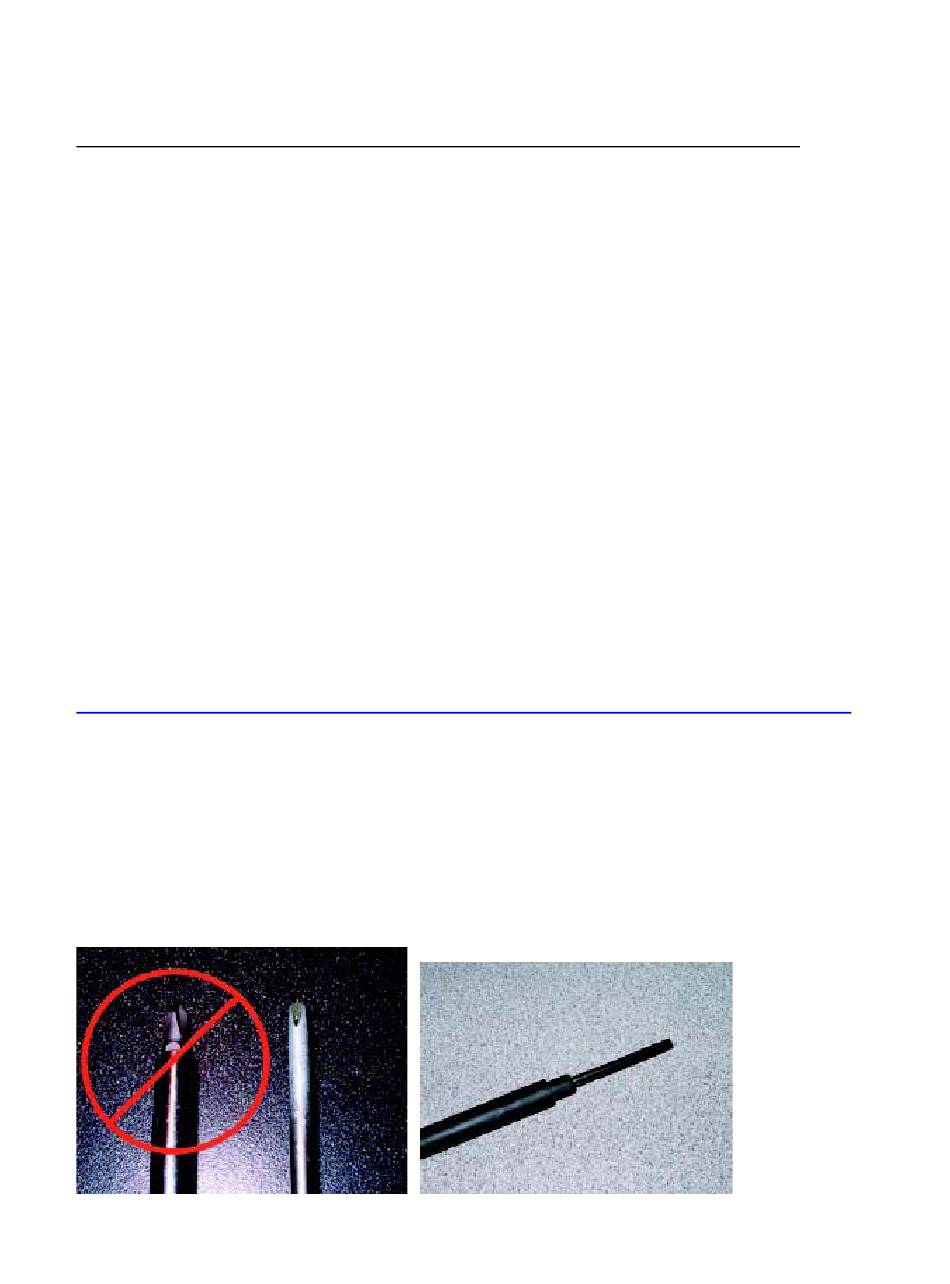

1. A new condition #2 Philips head Screwdriver (Figure 1, below left).
2. Flathead "Jeweler's" Screwdriver (Figure 2, below right)
3. Anti-static Wrist Strap
4. Thermal paste (Thermal paste can be purchased at any computer supply store.)
5. 2 zip ties
Figure 1
Figure 2

Advertisement

loading

Summary of Contents for Mackie Digital X bus

  • Page 1 Anti-static precautions must be taken in order to prevent damage to the unit or to the new motherboard from electro-static discharge (ESD). It is highly recommended that you read getting inside the digital X bus located at the link below. http://www.mackie.com/products/digitalxbus/pdfs/Getting_Inside.pdf...
  • Page 2: Parts Supplied

    • Unplug any USB peripherals, mouse, keyboard, or anything other cables attached to the rear panel. • Place the Digital X Bus on a surface larger than the console, away from any carpeting or static- prone area(s). This surface will need to extend beyond the rear side of the Digital X Bus by at least three feet (or one meter) of distance, because the rear panel will eventually slide out (like a drawer) and you will need to make sure it is supported and doesn’t fall out of the mixer.
  • Page 3 Start by removing the aluminum cross brace. This will be held in place by 5 Philip head screws located in each corner of the brace and one holding the Digital X bus PCI card. Remove all 5 screws and set them to the side in a safe place.
  • Page 4 Note: this will be a blue header labeled IDE1. Next we will remove the ribbon cabled used to connect the USB from the Digital X Bus daughter board to the Iwill motherboard. Remove the end of the cabled connected to the Iwill motherboard (figure 3 below).
  • Page 5 Iwill motherboard. Start by removing the end of the ribbon cabled connected to the Iwill motherboard (refer to figure 5 below). Leave the other end of the ribbon cable connected to the Digital X Bus daughter board (refer to figure 6 below). Figure 5...
  • Page 6 Note: Set the AGP video card in a safe place away from any potential electro-static discharge. Now it is time for the most important part. Take the Digital X bus PCI card is located in PCI Do not remove the PCI slot 5.
  • Page 7 This could cause damage to the processor that Mackie will not be responsible for. If you do not feel comfortable please contact Mackie tech support for referral to a qualified service center.
  • Page 8 Figure 8 Remove the processor from the processor’s socket. Start by lifting the arm located on the side of the processor socket. Slowly lifts the processor from the processor socket make sure you do not feel any resistance the processor should come free very easily Note : Set the processor in a safe place away from any potential electro-static discharge.
  • Page 9 Now it is time to remove the Iwill motherboard. The motherboard is held in place by 9 screws. Remove all 9 screws then lift the Iwill motherboard from the stand offs. Place all 9 screws in a safe place for later use.
  • Page 10 Installing the Supermicro motherboard Start by removing the new Supermicro motherboard from its packaging. Be very carful when removing the new motherboard from its anti-static bag as not to disturb any component located on the motherboard its self. Make sure you are properly connected to the chassis of the console using anti-static Wrist Strap.
  • Page 11 To install the processor in the processor’s socket. Start by lifting the arm located on the side of the processor socket. Slowly put the processor in the processor socket, make sure to orient the processor with the golden triangle matched to the triangle on the processor’s socket. Note: be very carful when handling the processor, keep the processor away from any potential electro-static discharge.
  • Page 12 Take the processor heat sink and place it over the processor. Orient the heat sink screw holes so they align with the screw holes on the mounting brackets. Take the heat sink bracket screws and place them in the screw holes. Slowly tighten the screws on each side of the heat sink.
  • Page 13 Next we will reinstall the AGP video card. Start by holding the AGP video card over the AGP slot (figure 9 below). Tilt the AGP video card backwards towards the rear of the AGP slot. Slowly lower the front of the AGP video card into the AGP slot. Once the AGP video card is in position in place press down firmly to make sure the card is seated all the way (figure 10 below).
  • Page 14: Very Important

    Now we will install the new MIDI/Footswitch conversion cable. You will notice one side of the MIDI/Footswitch conversion cable labeled motherboard and the other labeled daughter board. You will also notice that there is a little blue or white (figure 11 below) dote indicating pin 1. It is very important that the MIDI/Footswitch conversion cable is installed in the correct orientation in regards to pin 1 otherwise there could be damage to the motherboard.
  • Page 15 Supermicro motherboard (figure 14 below). Take the 10 pin ribbon cable located on the left hand side of the Digital X Bus daughter board and connect it to USB header 6/7. You will need to make sure to position the red strip on the ribbon cable indicating pin 1 so that it is facing the motherboard battery.
  • Page 16 Now we will connect Com 2 from the rear Digital X Bus daughter board to the Supermicro motherboard. Take the10 pin ribbon cable located on the right hand side of the of the Digital X Bus daughter board (figure 15 below) and connect it to Com port 2 on the Supermicro motherboard (figure 16 below).
  • Page 17 It is time to install the most important part the Digital X Bus PCI card. Previously you set the DXB PCI card safely between the hard drive and back plain. Carefully take the Digital X Bus PCI card and position it over the fifth PCI slot. Push down slowly on the PCI card until it is firmly...
  • Page 18 Next we will connect the IDE ribbon cable. This cable will connect to IDE 1. The IDE 1 header is colored blue. Connect the 20 pin Molex connector to the primary power supply header. Connect the 4 pin 12V power supply cable to the 4 pin 12 V header.
  • Page 19 Now it is time reinstall the aluminum cross brace. Take the aluminum cross brace and place it over the motherboard and PCI card. Position the cross brace so the screw holes line up with PCI card and mounting brackets. Take 4 of 5 screws we sat aside earlier and begin tightening down each corner of the cross brace.
  • Page 20 The PCB will be labeled PW-ON about ¾ of the way up the row of jumpers. Note: If you did not receive a momentary power switch please contact Mackie tech support and we will ship one out to you.
  • Page 21 Operating system. Although the Digital X bus will boot and allow you to recover any stored session files the system is not stable. You can use an external USB flash drive to transfer and backup a stored session files.
  • Page 22 DXB BIOS settings for Supermicro motherboard MAIN Date (mm:dd:yy) Time (hh:mm:ss) Legacy diskette A [None] Legacy diskette B [None] ……………………………………………………………………………………………… IDE Channel 0 Master [xxxxxxxxx] IDE Channel 0 Master (sub menu) IDE HDD Auto Detection [N/A] IDE Channel 0 Master [Auto] Access Mode [Auto] ………………………………………………………………………………………………...
  • Page 23 >Advanced Chipset Control Graphics Apertures [64] CSA LAN (Giga-LAN) [Enabled] On-Chip VGA Setting On-Chip VGA [Disabled] On-chip Frame buffer size 16MB On-Chip Serial ATA Setting On-Chip Serial ATA [Disabled] X Serial ATA Port 0 Mode SATA0 master X Serial ATA Port 1 Mode SATA1 master USB Controller [Enabled] USB 2.0 Controller...
  • Page 24 >PnP/PCI Configuration Init Display From [Onboard/AGP] Reset Configuration Data [Disabled] Resources Controlled By [Auto(ESCD)] X IRQ Resources ……………………………………………………………………………………………… >Hardware Monitor CPU Warning Temperature [Disabled] The remaining parameters will be grayed out and are for monitoring your system only. ……………………………………………………………………………………………… >Processor & Clock Option Limit CPUID MaxVal [Disabled] Hyper-Threading Technology [Enabled] Spread Spectrum...
