Broadata LinkBridge LB-H2-SP2E Manual

18g/4k hdmi enhanced splitter 1x2 or 1x4
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

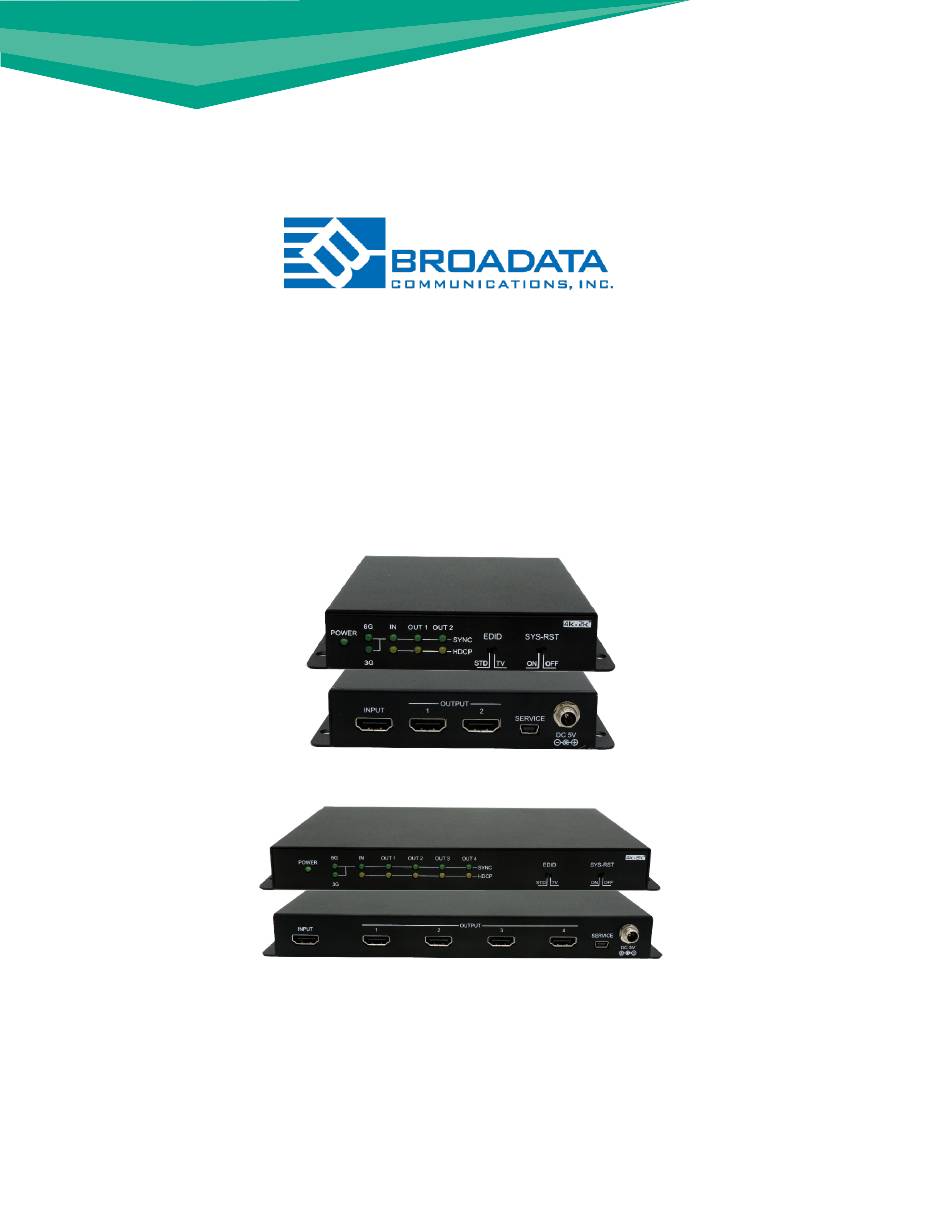

LinkBridge™ 18G/4K HDMI Enhanced Splitter
1x2 or 1x4
LB-H2-SP2E
LB-H2-SP4E
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or application.
All rights reserved.
©2019 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Related Manuals for Broadata LinkBridge LB-H2-SP2E

Summary of Contents for Broadata LinkBridge LB-H2-SP2E

  • Page 1 1x2 or 1x4 LB-H2-SP2E LB-H2-SP4E BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2019 Broadata Communications, Inc.
  • Page 2 SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATION PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes,surges,electric shock,lightning strikes, etc. Use of surge proctection system is highly recommended in order to protect and extend the life of your equipment.
  • Page 3 SAFETY INFORMATION Do not use this device near water/liquids. This device should not be exposed to dripping and splashing or liquids. Clean only with dry cloth. Do not use solvents such as paint thinners and acetone to clean external casing. Such agents will remove any labels on the device.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PRODUCT DESCRIPTION OPERATION CONTROL AND FUNCTIONS FRONT/REAR PANEL CONNECTION DIAGRAM SPECIFICATIONS MAINTENANCE AND TROUBLESHOOTING SERVICE PROCEDURE REPLACEMENT POLICY RETURN AND REPAIR SERVICE LIMITED WARRANTY LinkBridge 18G/4K 18G Enhanced HDMI Splitter User Manual (LB-H2-SP2E / LB-H2-SP4E)

  • Page 5: Product Description

    PRODUCT DESCRIPTION The LB-H2-SP2E and LB-H2-SP4E is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0 specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to 4 outputs.

  • Page 6: Operation Control And Functions

    OPERATION CONTROL AND FUNCTIONS FRONT PANEL LB-H2-SP2E FRONT PANEL LB-H2-SP4E FRONT PANEL LinkBridge 18G/4K 18G Enhanced HDMI Splitter User Manual (LB-H2-SP2E / LB-H2-SP4E)

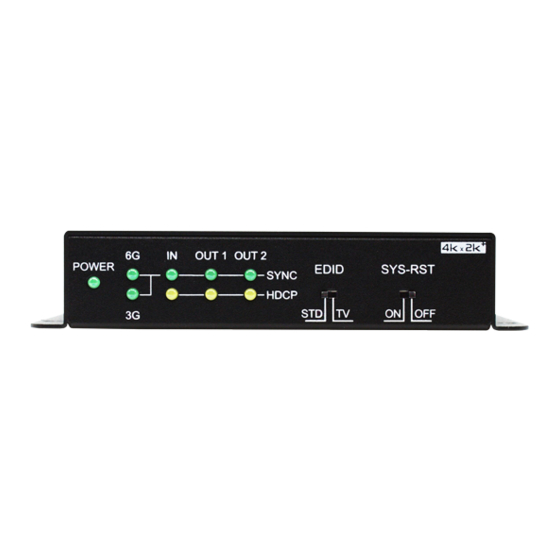

  • Page 7 OPERATION CONTROL AND FUNCTIONS FRONT PANEL POWER LED: This LED will illuminate to indicate the unit is on and receiving power. 6G LED: When the input source bandwidth is above 340MHz, the 6G LED will illuminate. 3G LED: When the input source bandwidth is between 275MHz and 340MHz, the 3G LED will illuminate.

  • Page 8: Front/Rear Panel

    OPERATION CONTROL AND FUNCTIONS REAR PANEL LB-H2-SP2E FRONT PANEL LB-H2-SP4E FRONT PANEL LinkBridge 18G/4K 18G Enhanced HDMI Splitter User Manual (LB-H2-SP2E / LB-H2-SP4E)
  • Page 9 OPERATION CONTROL AND FUNCTIONS REAR PANEL INPUT: Connect to HDMI source equipment such as a media player, game console or set-top box. OUTPUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. Note: This unit employs automatic 4K to 1080p down-scaling and color space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID.

  • Page 10: Connection Diagram

    CONNECTION DIAGRAM LinkBridge 18G/4K 18G Enhanced HDMI Splitter User Manual (LB-H2-SP2E / LB-H2-SP4E)
  • Page 11 CONNECTION DIAGRAM LinkBridge 18G/4K 18G Enhanced HDMI Splitter User Manual (LB-H2-SP2E / LB-H2-SP4E)

  • Page 12: Specifications

    SPECIFICATIONS PHYSICAL INPUT PORTS Dimensions LB-H2-SP2E 5.04"(W) x 4.60"(D) x 1.18"(H) Ports HDMI x 1, USB Mini B (Service Port) Dimensions LB-H2-SP4E 9.09”(W) x 4.60”(D) x 1.18”(H) Power Rating LB-H2-SP2E 5V DC, 0.4A OUTPUT PORTS Power Rating LB-H2-SP4E 5V DC, 0.55A Ports HDMI x 2 (LB-H2-SP2E) Operating Temperature...
  • Page 13 VIDEO SPECIFICATIONS SUPPORT RESOLUTION/TIMING (HZ) CONVERT CONVERT TO 1080P TO 4:2:0 640×480P@60 ✓ ✓ 640×480P@72 ✓ ✓ 640×480P@75 ✓ ✓ 640×480P@85 ✓ ✓ RESOLUTION/TIM- 720×400P@70 ✓ ✓ ING (HZ) SUPPORT 720×400P@85 ✓ ✓ CAN CONVERT TO 720×480I@59 ✓ ✓ 1080P CAN CON- 720×480I@60 ✓...
  • Page 14 VIDEO SPECIFICATIONS SUPPORT RESOLUTION/TIMING (HZ) CONVERT CONVERT TO 1080P TO 4:2:0 1280×720P@29 ✓ ✓ 1280×720P@30 ✓ ✓ 1280×720P@50 ✓ ✓ 1280×720P@59 ✓ ✓ 1280×720P@60 ✓ ✓ 1280×768P@60 ✓ ✓ 1280×768P@60 (RB) ✓ ✓ 1280×768P@75 ✓ ✓ THE BACK 1280×768P@85 ✓ ✓...
  • Page 15 VIDEO SPECIFICATIONS SUPPORT RESOLUTION/TIMING (HZ) CONVERT CONVERT TO 1080P TO 4:2:0 1600×1200P@65 ✓ ✓ 1600×1200P@70 ✓ ✓ 1600×1200P@75 ✓ ✓ 1600×1200P@85 ✓ ✓ 1680×1050P@60 ✓ ✓ 1680×1050P@60 (RB) ✓ ✓ 1920×1080P@23 ✓ ✓ 1920×1080P@24 ✓ ✓ KGROUND 1920×1080P@25 ✓ ✓ R ALLOWS 1920×1080P@29 ✓...
  • Page 16 VIDEO SPECIFICATIONS SUPPORT RESOLUTION/TIMING (HZ) CONVERT CONVERT TO 1080P TO 4:2:0 3840×2160P@25 (4:2:2) ✓ ✓ 3840×2160P@29 (4:2:2) ✓ ✓ 3840×2160P@30 (4:2:2) ✓ ✓ 3840×2160P@50 (4:2:2) ✓ ✓ 3840×2160P@59 (4:2:2) ✓ ✓ 3840×2160P@60 (4:2:2) ✓ ✓ 3840×2160P@50 (4:2:0) ✓ ✓ ✓ 3840×2160P@59 (4:2:0) ✓...
  • Page 17 VIDEO SPECIFICATIONS SUPPORT RESOLUTION/TIMING (HZ) CONVERT CONVERT TO 1080P TO 4:2:0 4096×2160P@25 (4:4:4) ✓ ✓ 4096×2160P@29 (4:4:4) ✓ ✓ 4096×2160P@30 (4:4:4) ✓ ✓ 4096×2160P@50 (4:4:4) ✓ ✓ 4096×2160P@59 (4:4:4) ✓ ✓ ✓ 4096×2160P@60 (4:4:4) ✓ ✓ ✓ KGROUND R ALLOWS O INSTANT- ANGE THE LIGHTING...

  • Page 18: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING 3.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 3.2 Troubleshooting If the LB-H2-SP2E & LB-H2-SP4E units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections.

  • Page 19: Service Procedure

    The LB-H2-SP2E and LB-H2-SP4E contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •...

  • Page 20: Limited Warranty

    LIMITED WARRANTY 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained.
  • Page 21 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: Sales@Broadatacom.com 2545 West 237th Street Website: www.broadatacom.com Torrance, CA 90505 800•214•0222 310•530•1416 e-mail: Sales@broadatacom.com www.broadatacom.com LinkBridge 18G/4K 18G Enhanced HDMI Splitter User Manual (60000LBH2SP2E4E)

This manual is also suitable for:

Linkbridge lb-h2-sp4e
