Quick Start Guide

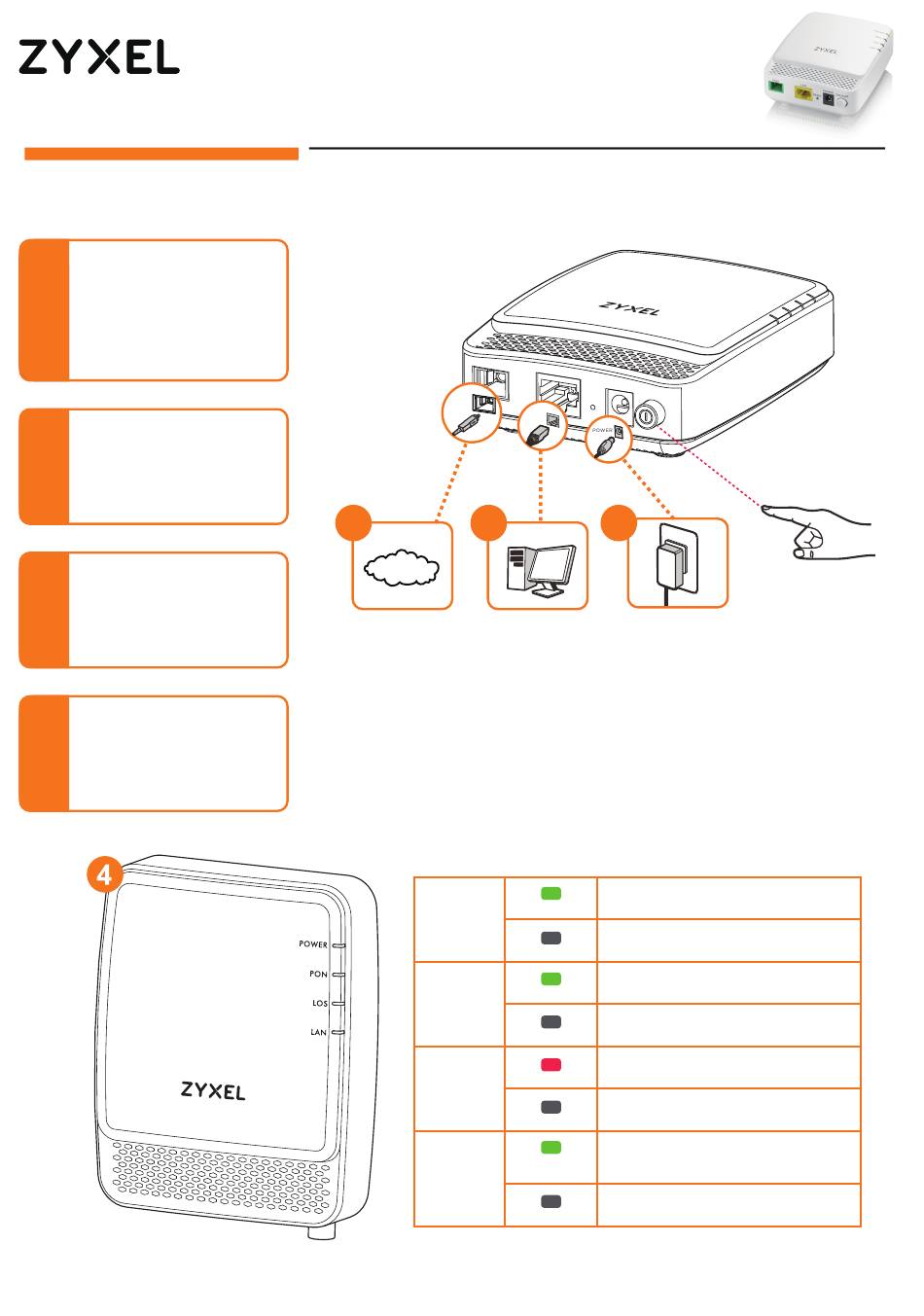

Hardware Connections
Connect the fiber optic cable to
the PON port.
1
Warning! To avoid possible eye
injury, do NOT look into an
operating fiber-optic module's
connector.
Connect a computer using an
2 Ethernet cable.
Connect the power cable and press
3 the power button.
Make sure the LEDs are on and
4 check the status.
1/2

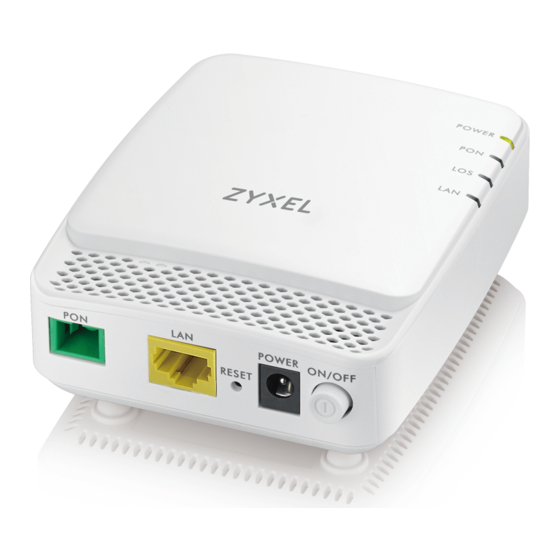

GPON SFU with 1-port GbE LAN
PON
1 2
INTERNET
POWER
PON
LOS
(Loss of Signal)
LAN
PMG1005-T20B
LAN
3
On: Power on and system ready
Green
Off: Power off
Off
On: Successful GPON fiber link
Blinking: Synching with OLT (fiber terminal)
Green
Off: Power off
Off
On: Not receiving an optical signal
Blinking: Receiving a weak optical signal
Red
Off: Receiving a normal optical signal
Off
On: Successful Ethernet link
Blinking: Transmitting/Receiving data on the
Green
Ethernet link
Off: Ethernet link down
Off
