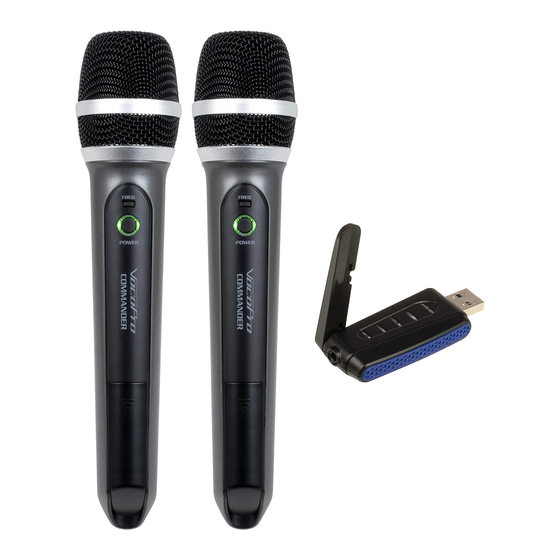

- Page 1 Vocopro Commander Professional Wireless Plug-in System Switch Frequency at Your Command! User Manual For All Devices Commander model numbers: HR, HT, IT, CT (1-4), PR (12, 34), UR (12, 34), GT3, GT9, SA, HM...
-
Page 2: Date Of Purchase
Welcome And thank you for purchasing the Commander Series from VocoPro. Along with quality products our commitment to customer satisfaction means we have technical support professionals ready to assist you. Be sure to visit our website: www.vocopro.com for the latest information on new products. -
Page 3: Legal Disclaimer
Legal Disclaimer All rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. VocoPro Products, logo and identifying product names and numbers herein are trademarks of VocoPro. Copyright protection claimed includes all forms and matters... -
Page 4: Contact And Support

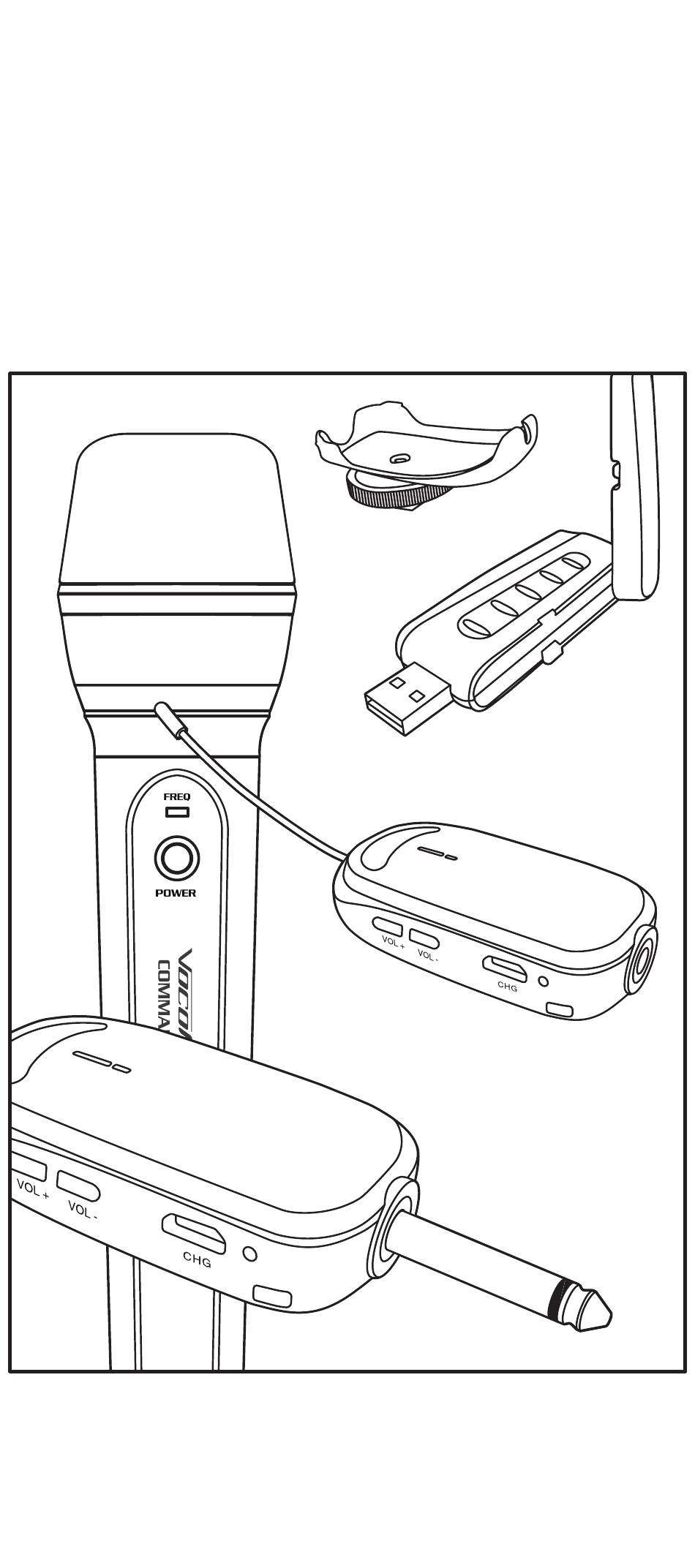

Contact and Support: We are at: VocoPro 1728 Curtiss Court La Verne, CA 91750 Phone: Toll Free: 800-678-5348 TEL: 909-593-8893 FAX: 909-593-8890 E-mail: info@vocopro.com Tech Support: techsupport@vocopro.com Visit us on Twitter, Instagram, and Facebook... - Page 5 Devices: HR / CT PR / IT -Accessories not shown...
- Page 6 CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
- Page 7 11. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means of an appliance is not defeated. 12. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
- Page 8 Continues on page 9...
- Page 10 Features: Commander HT (Wireless Handheld Microphone) • All digital 900 MHz with Mic on Chip™ technology. • UHF Band (900 MHZ) (PLL synthesized) with simple, one-key, automatic scan and pair function. • 100 feet of wireless coverage. Commander CT (Wireless Condenser Microphone Transmitter) •...
- Page 11 Features: Commander IT (Wireless Instrument Transmitter) • UHF Band (900 MHz) (PLL synthesized) with simple,one-key, automatic scan and pair function. • Transmitter communicates with unlimited receivers and fits conveniently on instrument without need for extension cables. Commander GT3 (Wireless Guitar/Bass Transmitter) •...
- Page 12 Functions: IT/GT3/ GT9/PR HR and CT All receiver and transmitter body: Chg- connect micro USB charging cable here to recharge the internal battery. Chg LED- Red light indicates battery is low or charging. Blue light indicates that battery status is full after charging and has sufficient charge. 3.5mm jack- connect a condenser microphone, line in audio source (CT only) or connect a headphone source here (HR only).
- Page 13 (PR only) 1/4" jack connector- plug this end into a high impedance mic input connector (680 Ohm). Transmitters: Handheld, Condenser MIC, and Instruments AF LED- this light shows when an audio input signal is present. (IT/GT3/GT9) 1/4" jack connector – plug this end into an instrument with a 1/4"...
- Page 14 Commander HT FREQ- Press this button when the unit is on in order to change and re-sync the current transmitting frequency channel. Power- press once rapidly to power unit on, press once more to power unit off. Battery- Use 2 AA batteries inserted as shown.
-
Page 15: Technical Specifications
Technical Specifications: Available in Four frequency groups: • Group 1 (HT/CT/HR/IT/PR-1): 902.0-908.5 MHz • Group 2 (HT/CT/HR/IT/PR-2): 915.0-921.5 MHz • Group 3 (HT/CT/HR/IT/PR-3): 908.5-915.0 MHz • Group 4 (HT/CT/HR/IT/PR-4): 921.5-928.0 MHz HT Wireless Handheld Transmitter • Microphone pattern: Uni-Directional • Frequency response: 75 Hz-18 kHz ± 3 dB •... -
Page 16: Getting Connected
Getting Connected: Commander HT The Commander-HT ( wireless handheld microphone) requires any of the corresponding receiver models in order to operate: Commander-HR, Commander-PR, or Commander-UR* • Insert fresh batteries. • Power ON the Commander-HT by pressing the Power Button once (a green power LED light will now be visible) Note: A flashing green LED indicates low battery. - Page 17 Getting Connected Continued: Commander HR The Commander HR will (wireless portable receiver) function with any of the corresponding transmitter models: Commander-HT, Commander-IT or Commander-CT* • Connect a pair of headphones to the 3.5mm jack. • Press power button once to power ON •...
- Page 18 Commander-HT, Commander-IT or Commander-CT • Plug 1/4" jack into a mic input connector. • Press power button once to power ON. • Check that the RF LED light is ON, this confirms a solid connection. • Adjust the output volumes to your preference.
- Page 19 SA and HM Accessories: Commander SA Link Shoe Mount Adapter Carefully position then snap HR Wireless Condenser Mic firmly into Shoe Mount Adapter. Shoe Mount Adapter square base slides into hot shoe mount on camera. Rotate wheel to hand tighten SA mount. Camera or other recording device with hot shoe mount.
- Page 20 Additional information and support can be found at- vocopro.com/support Toll Free: 800-678-5348 TEL: 909-593-8893 FAX: 909-593-8890 Email Tech Support at: techsupport@vocopro.com Commander Owner’s Manual © VocoPro 2019 v2.0828 www.vocopro.com...
