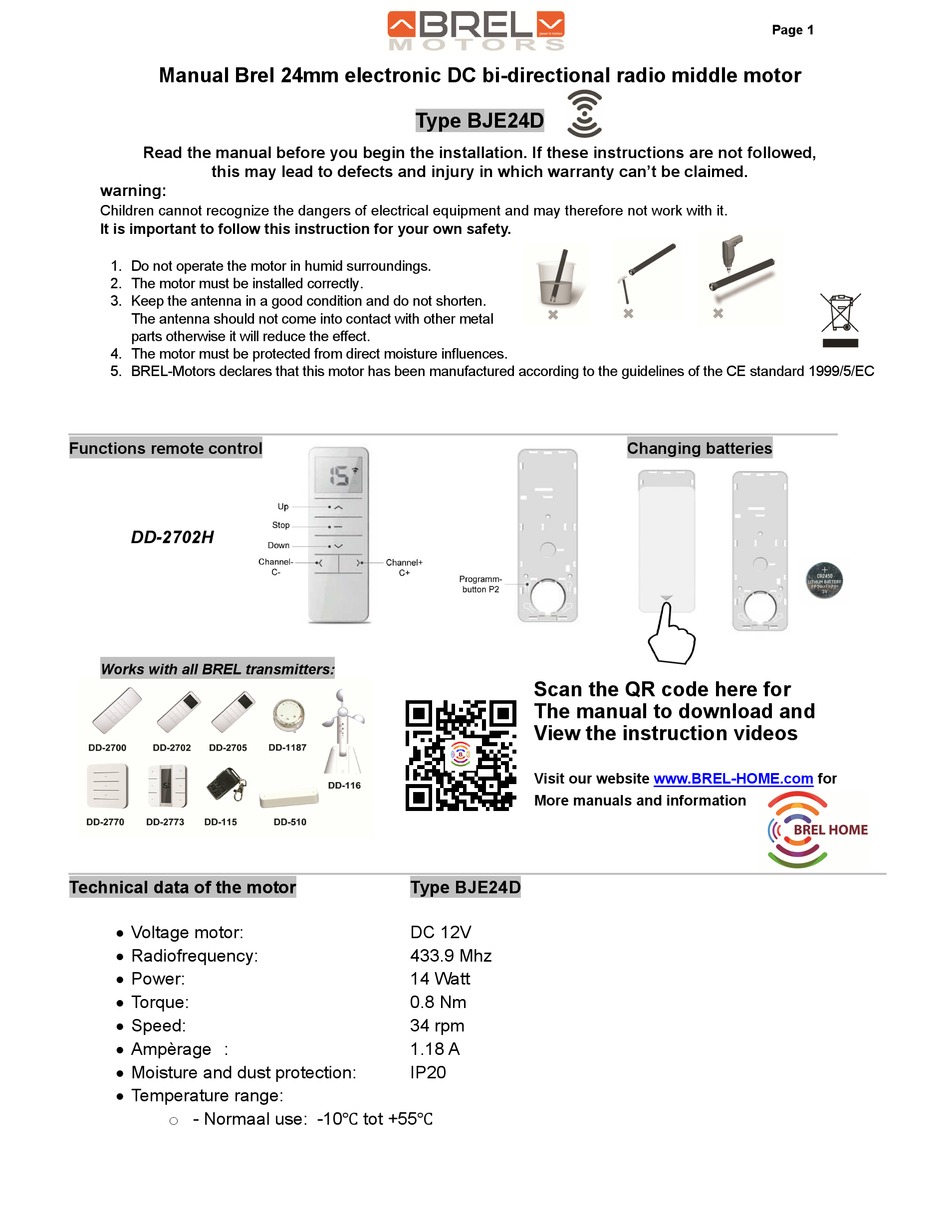

Manual Brel 24mm electronic DC bi-directional radio middle motor

Read the manual before you begin the installation. If these instructions are not followed,

this may lead to defects and injury in which warranty can't be claimed.

warning:

Children cannot recognize the dangers of electrical equipment and may therefore not work with it.

It is important to follow this instruction for your own safety.

1. Do not operate the motor in humid surroundings.

2. The motor must be installed correctly.

3. Keep the antenna in a good condition and do not shorten.

The antenna should not come into contact with other metal

parts otherwise it will reduce the effect.

4. The motor must be protected from direct moisture influences.

5. BREL-Motors declares that this motor has been manufactured according to the guidelines of the CE standard 1999/5/EC

_______________________________________________________________________________

Functions remote control

DD-2702H

Works with all BREL transmitters:

____________________________________________________________________________________

Technical data of the motor

 Voltage motor:

 Radiofrequency:

 Power:

 Torque:

 Speed:

 Ampèrage :

 Moisture and dust protection:

 Temperature range:

o - Normaal use: -10℃ tot +55℃

Type BJE24D

Scan the QR code here for

The manual to download and

View the instruction videos

Visit our website

More manuals and information

Type BJE24D

DC 12V

433.9 Mhz

14 Watt

0.8 Nm

34 rpm

1.18 A

IP20
