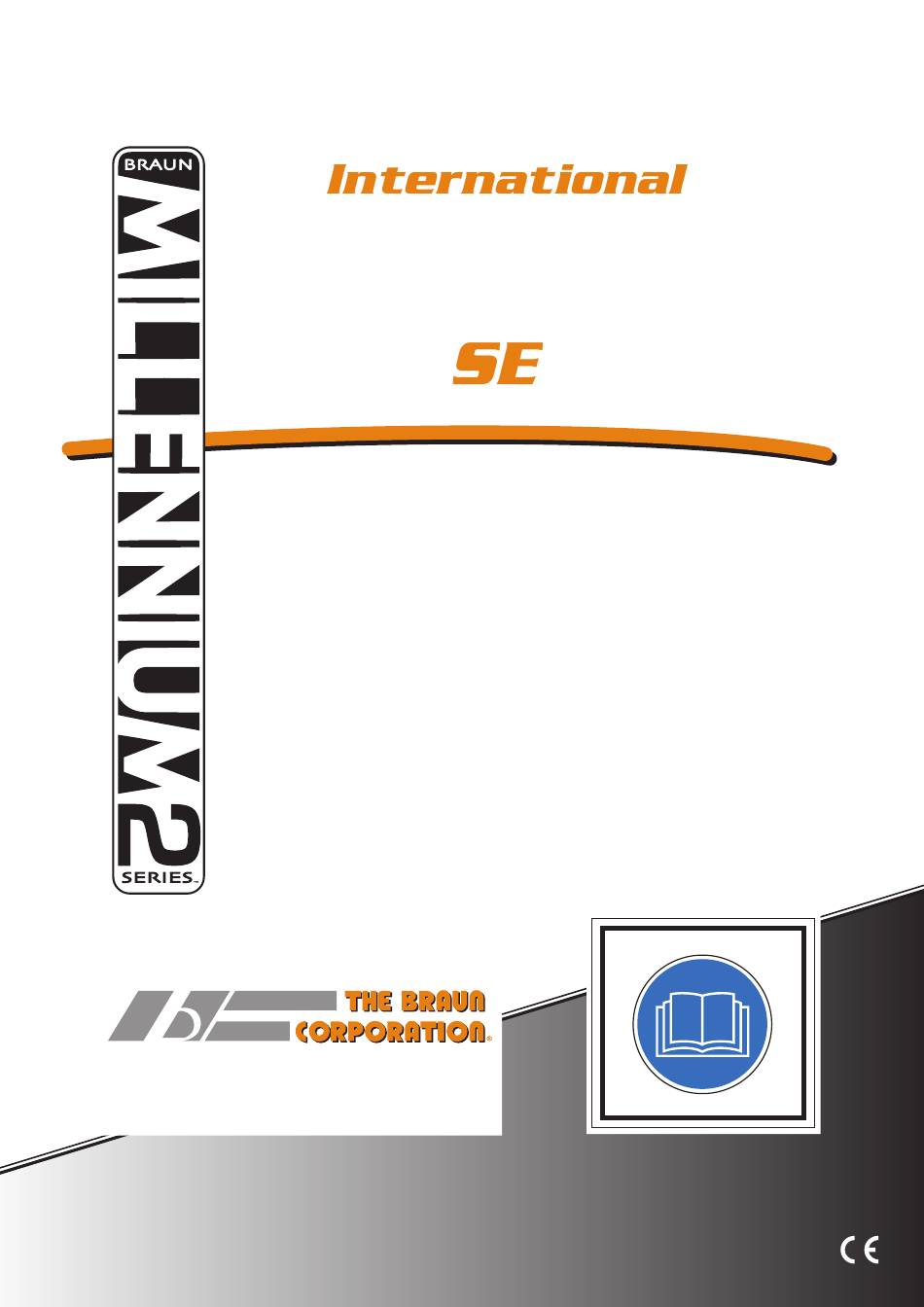

- Page 1 Owner Manual International Millennium Private Use Wheelchair Lifts www.braunability.com/international ISO 9001:2008 631 West 11th Street, Winamac, IN 46996, USA Phone: +1 574 946 6153 Fax: +1 574 946 4670 36815 Rev. B August Original Instructions Original Instructions 2013...
- Page 2 Congratulations The Braun employee family thanks you for purchasing your new wheelchair lift. We design and build each Braun product for reliability, quality and safety. Our founder, Ralph Braun, instilled that ethic from day one and we live by that commitment today.
-
Page 3: Table Of Contents
Contents Installation and Service Safety Precautions ..2 - 3 Lift Operation Safety ..........4 - 6 Specifications .............. 7 Center of Gravity ............8 Lift Terminology ............9 Lift Installation Position Lift ..........10 - 11 Secure Lift ............12 Attach Power and Ground Cables .... -
Page 4: Installation And Service Safety Precautions
CAUTION Installation and Service Safety Precautions CAUTION Safety Symbols SAFETY FIRST! Know That..The information contained W ARNING CAUTION in this manual and supplements (if included), This symbol indicates This symbol indicates is provided for your use and important safety in- important information safety. - Page 5 Maintenance and Lubrication Schedule contained in this manual. W ARNING Disconnect the power cable at the battery prior to servicing. W ARNING Never modify (alter) a Braun Corporation lift. W ARNING Replacement parts must be Braun authorized replacements. W ARNING Never install screws or fasteners (other than factory equipped).
-
Page 6: Lift Operation Safety
CAUTION Lift Operation Safety CAUTION Safety Symbols SAFETY FIRST! Know That..The information contained W ARNING CAUTION in this manual and supplements (if included), This symbol indicates This symbol indicates is provided for your use and important safety in- important information safety. - Page 7 W ARNING Engage vehicle parking brake before operating lift. not fully understood, contact The Braun W ARNING Provide adequate clearance outside the vehicle to accom- Corporation immedi- modate the lift before opening lift door(s) or operating lift.
- Page 8 W ARNING Replace missing, worn or illegible decals. W ARNING Never modify (alter) a Braun Corporation lift. Do not use accessory devices not authorized by The Braun Corporation. W ARNING W ARNING Do not remove any guards or covers. W ARNING Keep clear of any hydraulic leak.
-
Page 9: Specifications
Specifications The lift must be installed, operated, and maintained as detailed in applicable manuals. Any use of equipment other than instructed in this manual is prohibited. The 363kg (800 lb.) lift capacity Millennium -2 series lifts have completed 15,600 cycles with a 363kg load and a static load test with a 1090kg (2400 lb.) load. -
Page 10: Center Of Gravity
Center of Gravity Center of Gravity is the intersection of X, Y, and Z. Notice: X must be measured from opposite pump side as shown. Lift Model X (cm) Y (cm) Z (cm) L955SE3143IB-2 64.84 45.97 21.37 L955SE3455IB-2 64.84 60.20 21.37 L952SE2740IB-2 55.14... -
Page 11: Lift Terminology
Roll Stop Inboard Right Left Outboard Front Inboard Braun wheelchair lifts provide a method The lift must be installed, operated, (driver's side) (of vehicle) of boarding and exiting applicable and maintained as detailed in this motor vehicles. Braun wheelchair lifts manual. -
Page 12: Lift Installation
Lift Installation Position Lift Align Align (Parallel) (Parallel) Center lift in door opening Vertical Arm Vertical Arm must clear must clear door opening. door opening. 90° Lift towers and Figure B vertical arms must be parallel (aligned) with vertical sides of door jamb and Side to Side Alignment perpendicular (90˚) - Page 13 Lift Installation Position Lift Alignment: Side-to-Side Alignment: See Figure B on previous page. The lift vertical arms and platform should be perpendicular (90°) to the vehicle floor and parallel (aligned) with the ver- Minimum tical sides of door jamb. The vertical arms and 12 mm Clearance the parallel arms must clear the door opening...
-
Page 14: Secure Lift
Lift Installation Secure lift Figure G 1. Drill two mounting holes 4. Install below floor mounting W ARNING (holes 6 and 7). hardware per instructions supplied in kit. Check for obstruc- 2. Temporarily secure lift using tions such as gas two mounting bolts (holes 6 5. -
Page 15: Attach Power And Ground Cables
Lift Installation Attach Power and Ground Cables OEM (+) Cable OEM (-) Cable Lead Cable 36513 Circuit Protection Device Vehicle Battery Ground Cable to Chassis 4 Gauge (21.1mm2) (not supplied) Figure I Battery Cable to Circuit Protection Device Power Feed Stud Star Washer Floor 3/8”... - Page 16 CAUTION Lift Installation Attach Power and Ground Cables POS. CAUTION Battery to Frame NEG. Ground Cable 4 Gauge (21.1mm2) Position and secure (not supplied) ground cable clear of lift operation. Figure J Grommet Pump Mounted Ground Cable 4 Gauge (21.1mm2) 9/32”...
-
Page 17: Connect Interlocks
Lift Installation Connect Interlocks Vehicle and Lift Interlocks The pump module is equipped with a lift interface 9-circuit connector (female socket). A mating 9-circuit 36513 connector (male plug) is supplied. To meet minimum CE requirements, connect to vehicle interlock harness as outlined below (Steps 1-5). INTERLOCK PUMP MODULE CONNECTOR - P21... -
Page 18: Platform Angle Adjustment
Lift Installation Platform Angle Adjustment Figure B Lowering Sequence Requirements 1. The outboard end (toe) of the platform must contact the ground first to ensure the Barrier spring-loaded outer barrier unfolds fully. See Figure B. Heel 2. The inboard end (heel) of the platform must lower fully Ground Level (vertical arms must contact... -
Page 19: Tower Microswitch Adjustment
Lift Installation Tower Microswitch Adjustment 36514 TOWER TOWER TOWER TOWER Figure D 32943 32942 TOWER TOWER TOWER TOWER 32942 32943 Review adjustment TOWER TOWER TOWER TOWER procedures below and adjust as needed only. 32942 32943 Tower 1 (Unfold) Switch Adjustment Tower 2 (Up) Switch Adjustment Floor Position from Stow Floor Position from Below Floor... - Page 20 Lift Installation Tower Microswitch Adjustment Figure E TOWER TOWER TOWER TOWER 32943 32942 TOWER TOWER TOWER TOWER 32943 32942 Review adjustment TOWER TOWER TOWER TOWER procedures below and adjust as needed only. 32942 32943 Tower 3 (Count) Switch Adjustment Radius of Tower 4 microswitch blade activated by apex of Cycle Counter Switch activation plate.
-
Page 21: Installer Verification
Installer Verification Compatibility between the lift and the vehicle The installer shall confirm the compatibility between the lift and the vehicle. Static Test Deformation The unladen platform is positioned mid-way between ground level and vehicle floor level and measurements are taken of the height of the platform and its angular attitude relative to the vehicle floor. A load of “B”... - Page 22 Installer Verification Dynamic Test With “A” kg (see table below) applied to the platform, verify that the lift is able to operate throughout its full range of normal lifting and lowering. 1. Lower platform to the ground. 2. Place “A” kg (see table below) at center of platform. 3.
-
Page 23: Lift Operation Safety
CAUTION Lift Operation Safety CAUTION Safety Symbols SAFETY FIRST! Know That..The information contained W ARNING CAUTION in this manual and supplements (if included), This symbol indicates This symbol indicates is provided for your use and important safety in- important information safety. - Page 24 W ARNING Engage vehicle parking brake before operating lift. not fully understood, contact The Braun W ARNING Provide adequate clearance outside the vehicle to accom- Corporation immedi- modate the lift before opening lift door(s) or operating lift.
- Page 25 W ARNING Replace missing, worn or illegible decals. W ARNING Never modify (alter) a Braun Corporation lift. Do not use accessory devices not authorized by The Braun Corporation. W ARNING W ARNING Do not remove any guards or covers. W ARNING Keep clear of any hydraulic leak.
-
Page 26: Lift Operating Instructions
Lift Operating Instructions 36514 Before lift operation, park the vehicle on a level Power Door(s): Open and close power door(s) surface, away from traffic. Place the vehicle using the pump module OPEN/CLOSE switch, transmission in “Park” and engage the parking or optional remote control. - Page 27 Lift Operating Instructions Door(s) Platform FOLD CLOSE Yellow Orange Lift-mounted Control Switches: The lift-mounted control switches activate lift functions and optional power door operators. The switches are function labeled. Press the switches in the direction of the function label to activate the intended lift function. Yellow Orange OPEn...
- Page 28 Lift Operating Instructions Before lift operation, park on Place the vehicle transmission Refer to the Manual Operating a level surface, away from in “Park” and engage the park- Instructions to manually oper- vehicular traffic. ing brake. ate lift. 36514 TO OPEn DOOR(S): Automatic Door Operator(s): Press yellow OPEN...
- Page 29 Lift Operating Instructions DOWn 2. Press red DOWN switch until the entire platform reaches ground level (stops) and roll stop unfolds fully (see Photos H and I). Release switch. AI/26797/001 Switch Arm Switch: Slide knob in to DOWN position. See Photo G. 3.
- Page 30 Lift Operating Instructions 2. Press red UP switch until platform stops (reaches floor level). Release switch. Switch Arm Switch: Slide AI/26797/001 knob out to UP position. Note: Roll stop must be UP when raising platform. Roll stop must be UP and roll stop latch must be fully engaged.
-
Page 31: Manual Operating Instructions
Manual Operating Instructions 36514 Hand Pump Release Valve approximate 1.5 mm intervals maximum Valve Tightening 3 Nm Specification: minimum Once valve seats 2 Nm (stops), tighten 2 to 3 Nm as shown. seats (stops) Release Valve Notice: Close hand pump release valve securely before operating electric pump. - Page 32 Manual Operating Instructions To Unfold Platform (Out): Up (To Raise): Using hand pump handle (Photo B): Using hand pump handle: a. Place slotted end of pump handle onto 1. Close hand pump valve (place slotted release valve and turn clockwise to close end of pump handle onto release valve securely.
-
Page 33: Emergency (E-Stop) Operating Instructions
Emergency Stop (E-Stop) Operating Instructions E-Stop To Activate E-Stop: Push E-Stop button down. To Reset E-Stop: 1. Turn lift power OFF. 2. Pull E-Stop button up. 3. Turn lift power ON. Lift Power Switch Page 31... - Page 34 Maintenance and Lubrication 36512 36513 36514 Proper maintenance is necessary to ensure safe, to contaminants W ARNING trouble-free lift operation. Inspecting the lift for when lowered to the any wear, damage or other abnormal conditions ground may require Maintenance and should be a part of a regular service program.
-
Page 35: Maintenance And Lubrication Schedule
Latch Slot Pivot Points (4) (Both Sides) Roll Stop Hinge Pivot Points (2) See the Maintenance/Lubrication Schedule for recommended applications per number of cycles. Specified (recommended) Available Braun Lubricant Type Lubricant Amount Part no. LPS2, General Purpose 16 oz. Light Penetrating Oil... - Page 36 Maintenance and Lubrication Schedule Roll stop pivot bearings (2) Apply Light Oil - See Lubrication Diagram Roll stop latch pivot point Apply Light Oil - See Lubrication Diagram Roll stop latch slot Apply Light Grease to both sides of slot. See Lubrication Diagram Roll stop lever bearings (2) Apply Light Oil - See Lubrication...
- Page 37 Maintenance and Lubrication Schedule Bridge plate pivot bearings (2) Apply Light Oil - See Lubrication Diagram Saddle support bearings (8) Apply Light Oil - See Lubrication Diagram Parallel arm pivot pin bearings (16) Apply Light Oil - See Lubrication Diagram Handrail pivot pin bearings (4) Apply Light Oil - See Lubrication Diagram...
- Page 38 • Circuit breakers, relays, and switches for securement or damage Inspect cotter pins on platform pivot pin Resecure, replace or correct as needed Use Braun 32840-QT hydraulic fluid Hydraulic Fluid (Pump) - Check level. (Exxon Univis HVI 26). Do not mix ®...
- Page 39 Maintenance and Lubrication Schedule Inspect saddle bearings (2) / buttons (4) Apply Door-Ease or replace if needed. See Lubrication Diagram. Inspect vertical arms and plastic Resecure or replace if needed. covers Inspect power cable Resecure, repair or replace if needed. 4500 Mounting Check to see that the lift is securely...
-
Page 40: Declaration Of Conformity - Machinery
Century -2, Millennium -2, Vista -2, GL Series 04 and newer, GCL and GVL Series 05 and newer Lifts Manufacturer: Braun Corporation 631 West 11 Street Winamac, IN 46996 USA Braun Corporation Authorized Representative Authorized Representative: AUTOADAPT AB Åkerivägen 7 S-443 61 Stenkullen SWEDEN Telephone: +46 (0) 302 254 00 E-mail: contact@autoadapt.se... - Page 41 ® Notes on Declared Standards referenced in the Declaration. EN 13857:2008 Safety of machinery. Safety distances to prevent hazard zones being reached by upper and lower limbs. EN ISO 13850:2008 Safety of machinery - Emergency stop - Principles for design. EN ISO 14121-1:2007 Safety of machinery - Risk assessment - Part 1: Principles.
-
Page 42: Declaration Of Noise Emission
® Declaration of Noise Emission The Braun Corporation Millennium -2 International Series System Sound Pressure Levels per EN ISO 11202 as based on testing on similar models are as follows: Operating Idle 68 dB (A) (Operator Position) 75 dB (A) -
Page 43: Declaration Of Conformity - Emc
GCL and GVL Series 05 and newer Lifts Manufacturer: Braun Corporation 631 West 11 Street Winamac, IN 46996 USA Braun Corporation Authorized Representative Authorized Representative: AUTOADAPT AB Åkerivägen 7 S-443 61 Stenkullen SWEDEN Telephone: +46 (0) 302 254 00 E-mail: contact@autoadapt.se... - Page 44 Page 42...
