Summary of Contents for Minelab MF5

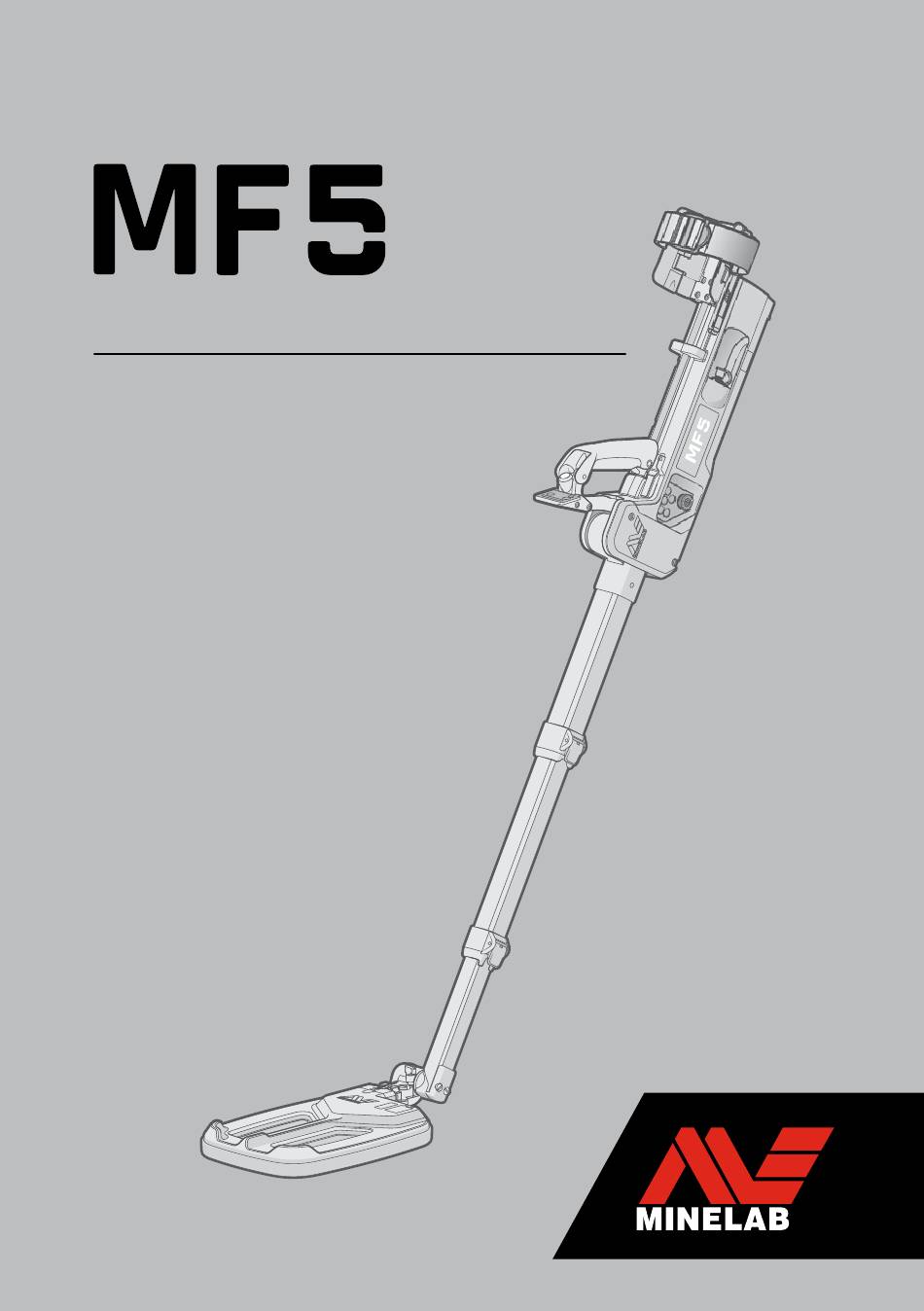

  • Page 1 Metal and Conductive Detector Operations Manual...
  • Page 2 No part of this document may be used or reproduced by any means or by any process, in any form, without the prior written permission of the copyright owner Minelab Electronics Pty Ltd of 2 Second Avenue, Mawson Lakes SA 5095, Australia.
  • Page 3 Metal and Conductive Detector Operations Manual Item Number: 4901-0373-1...
  • Page 4: Table Of Contents

    Contents System Overview MF5 Overview ������������������������������������������������������������������������������������������������������������������������������������ 6 Detecting Set��������������������������������������������������������������������������������������������������������������������������������������7 Standard Items MF5 Main Detector Parts �������������������������������������������������������������������������������������������������������������� 8 MF5 Detector Getting Started MF5 Preparation ������������������������������������������������������������������������������������������������������������������������������10 Functional Description Basic Functions �������������������������������������������������������������������������������������������������������������������������������14 Additional Functions ���������������������������������������������������������������������������������������������������������������������� 17 Functional Tones ������������������������������������������������������������������������������������������������������������������������������18 Procedures Operating Procedures ��������������������������������������������������������������������������������������������������������������������21...
  • Page 5 Target Edge Mapping Procedure Target Pinpointing Mapping Multiple Targets Operating Multiple Detectors in Close Proximity Troubleshooting, Safety and Maintenance Routine Care �������������������������������������������������������������������������������������������������������������������������������������31 Troubleshooting ������������������������������������������������������������������������������������������������������������������������������32 Advisory Errors General Error and Coil Error Initial Action Safety Advice �����������������������������������������������������������������������������������������������������������������������������������34 Specifications MF5 Detector Specification ��������������������������������������������������������������������������������������������������������36...
  • Page 6: System Overview

    MF5 Overview Since 1996, Minelab has designed, developed and manufactured its range of metal detectors to meet the requirements of landmine, unexploded ordnance and Improvised Explosive Device (IED) clearance operations throughout the world. Minelab continually strives to improve equipment detection capability and Operator safety throughout the development of its unique technologies and products.
  • Page 7: Detecting Set

    Detecting Set The MF5 is supplied as a detecting set with the following items: Items and specifications may vary slightly from those shown and may be subject to change. Standard Items 10% scale MF5 Detector 5. Earset 2. Carry Bag 6.
  • Page 8: Mf5 Main Detector Parts

    MF5 Main Detector Parts Major component parts of the MF5 include: 8 | System Overview...
  • Page 9: Mf5 Detector

    MF5 Detector Shaft Hinge Pivot point for unfolding or folding the shafts. Battery Compartment The hinge is only locked in position when the Handle Assembly is in its deployed position. 2. Earset Connector Main Body Upper, Middle & Lower Shafts 4.
  • Page 10: 10 | Getting Started

    MF5 Preparation To prepare the detector for use, conduct the following procedure: 1� Remove from the case / bag Open the Hard Transit Case and / or Carry Bag. 2� Inspect for damage Inspect for obvious signs of damage. If damage is evident, report to the supervisor / team leader.
  • Page 11 4� Unfold and adjust a. Slide down armrest strap b. Fold out coil and shafts c. Slide handle up d. Extend coil outwards e. Rotate coil 270° f. Unlock camlocks and extend shafts g. Slide back armrest h. Adjust armrest and strap Getting Started | 11...
  • Page 12 NOTE: The MF5 requires four C cell batteries for operation. Use only high quality NiMH rechargeable or Alkaline batteries. Minelab recommends that only rechargeable batteries with capacity of 4000 mAh or greater to be used with the MF5.
  • Page 13 Earset Socket and firmly slide the collar onto the socket. The MF5 is now ready for operations. NOTE: The Earset Connector is waterproof and must be connected and disconnected from the Earset Socket by holding the rubber collar.
  • Page 14: 14 | Functional Description

    Basic Functions For ease of use, all controls and displays for the MF5 are located on the Handle Assembly and Main Body. Conventional Operations 1 — 5 IED Operations 1 — 5 Primary Secondary Dual Function function icon function icon Several buttons have a dual function as notated on the decal icon.
  • Page 15 1. LED Display 4. Power Button A display of nine LED provides a visual To switch the MF5 ON or OFF, Long Press indication of detection signal strength when in (> 0.5 s) Power Button. The MF5 will complete Detection and Pinpoint Modes and information...
  • Page 16 IED or Conventional Tactical Mode at anytime during the operation Operations for the first time, a Ground of the MF5 or when the detector is switched Balance procedure should be completed. ON. Tactical Mode provides a vibration alert Provided the detector software is not response which can be deselected if required.
  • Page 17: Additional Functions

    • LED / IR OFF • Volume Level 6 NOTE: Unless Factory Reset is conducted, or the MF5 starts in Tactical Mode, the MF5 will operate using the previously selected additional functions when restarted. Battery Status indication will be accurate for NiMH batteries but not for other battery chemistries.
  • Page 18: Functional Tones

    Functional Tones The MF5 emits tones that vary in pitch and volume to alert the Operator to targets, automatic detector functions or equipment alarm conditions. The following table summarises the tones emitted by the MF5. Tone Event Description Internal diagnostic checks when Start-Up Slow repeating low-pitched beep.
  • Page 19 Tone Event Description When entering Interrogation Mode Entering or exiting Interrogation a single mid pitched beep. When Mode Change or Pinpoint Mode. exiting Interrogation Mode a double mid pitched beep. Interrogation Mode: Single beep with very Indicates target likely to be ferrous. Ferrous Target low-pitched tone.
  • Page 20 Tone Event Description Mid-pitch single beep with volume Changing Volume Increasing or reducing volume. dependent on setting, except when changed to default value. Indicates battery charge is low and Two high-pitched tones every Low Battery Alert detection time is limited. 45 seconds.
  • Page 21: Procedures | 21

    Operating Procedures The MF5 is designed to ensure that the operation of the detector is as simple and intuitive as possible thereby eliminating the need for lengthy training requirements. Local Standard Operating Procedures and drills should take primacy provided Minelab recommended safety procedures are observed.
  • Page 22 STEP 3: Test Piece Procedure surface of the Coil with the tip of the Test Piece. Smoothly and slowly move the Test NOTE: The MF5 is supplied with a Piece across the Coil from one side to Test Piece designed to confirm that the other.
  • Page 23: Optional Procedures

    Standard Procedure Steps 2 and 3. be first tested with the supplied Test Piece before the use of local test pieces. NOTE: If the MF5 is restarted, it remembers the Noise Cancel setting and Warning: If the Test Piece therefore another Noise Cancel may not procedure fails, the detector is be required.
  • Page 24 ≈ 60 cm (24 in) STEP 1 Switch on Optional Procedure Noisy/uneven Noise Cancel Turn on LEDs Short Press LED Button Turn on vibration Short Press Vibration Button 10 mm (0.4 in) STEP 2 Ground Balance STEP 3 Test piece 24 | Procedures...
  • Page 25: Sensor Modes

    Sensor Modes The MF5 may be operated in the following sensor modes: Detection Mode Warning: Interrogation mode Detection Mode is optimised for maximum only provides information on detection performance and is the default mode the characteristics of a target used for searching new ground. In Detection...
  • Page 26: Pinpoint Mode

    By • overload tone will repeat pressing and holding the Mode Button the MF5 enters into Pinpoint Mode providing a Sensor overload will continue until the Coil is static response to a target. This means a moved away from the location of overload.
  • Page 27: Search Techniques | 27

    Search Speed In Detection Mode, the MF5 should be swept with a smooth and even motion ideally between 0.5 and 1 m/s (1.7 and 3.3 ft/s). If the detector is swept too fast or too slow then it is possible that small or deep targets may be missed.
  • Page 28: Locating The Target

    Locating the target When a target is initially detected, the Operator should stand in place and continue to sweep beyond the target (Local Standard Operating Procedure [SOP] takes primacy) in an attempt to find clear ground beyond the target. In doing so the Operator will: •...
  • Page 29: Target Edge Mapping

    Target Edge Mapping Target Pinpointing The Target Edge Mapping procedure uses an Having mapped the area of a suspected target, ’edge detection’ technique to locate the outer the Target Pinpointing procedure can be used edges of a target thereby mapping the size and to determine the centre of a target.
  • Page 30: Mapping Multiple Targets

    Operating Multiple Detectors in Close Proximity On occasion, it may be necessary to operate MF5 detectors in close proximity. In normal circumstances, an MF5 detector can operate within two metres (7 ft) without suffering excessive mutual interference.
  • Page 31: Troubleshooting, Safety And Maintenance | 31

    The following should be observed: • Do not use solvents or chemicals to clean the MF5. If any part of the detector comes into contact with corrosive substances, wash the detector with clean fresh water and dry with a clean cloth.
  • Page 32: Troubleshooting

    2. Increase the Volume by pressing the Volume + Button. No LED / Audio / Vibration 3. Factory Reset the MF5 — press and hold the Power Button for five seconds on start-up. Press the Vibration Button to enable the vibration feedback.
  • Page 33: Advisory Errors

    Power Button for for identifying faults and errors. five seconds. When a fault occurs, the MF5 will emit an 3. If the fault alarm is removed conduct the alarm via enabled audio, vibration and Test Piece procedure to confirm correct visual responses.
  • Page 34: Safety Advice

    Safety Advice The MF5 is safe to transport, store and operate when handled with the due care. Safety hazards applicable to this equipment are identified below. Hazard Precaution The MD Sensor emits very low power magnetic fields and Radio Frequency (RF) energy.
  • Page 35 The MF5 has been designed to avoid the presence of pinch-points, but is a compact, collapsible piece of equipment that requires moderate care when extending or collapsing.
  • Page 36: 36 | Specifications

    MF5 Detector Specification General Specifications Volume Control 1 to 9 Collapsed Size 400 × 99 × 194 mm (16 × 4 × 7.5 in) Extended Size 1610 × 194 × 237 mm (63 × 7.5 × 9.5 in) Weight, Operational 2.8 kg (6.2 lbs) with NiMH Rechargeable C cell batteries...
  • Page 37 Sciences et Developpement economique Canada (ISDE). Simplified EU Declaration of Conformity Hereby, Minelab Electronics Pty Ltd declares that the radio equipment type MF5 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.minelab.com/compliance.
  • Page 38 Part Number: 4901-0373-1...
