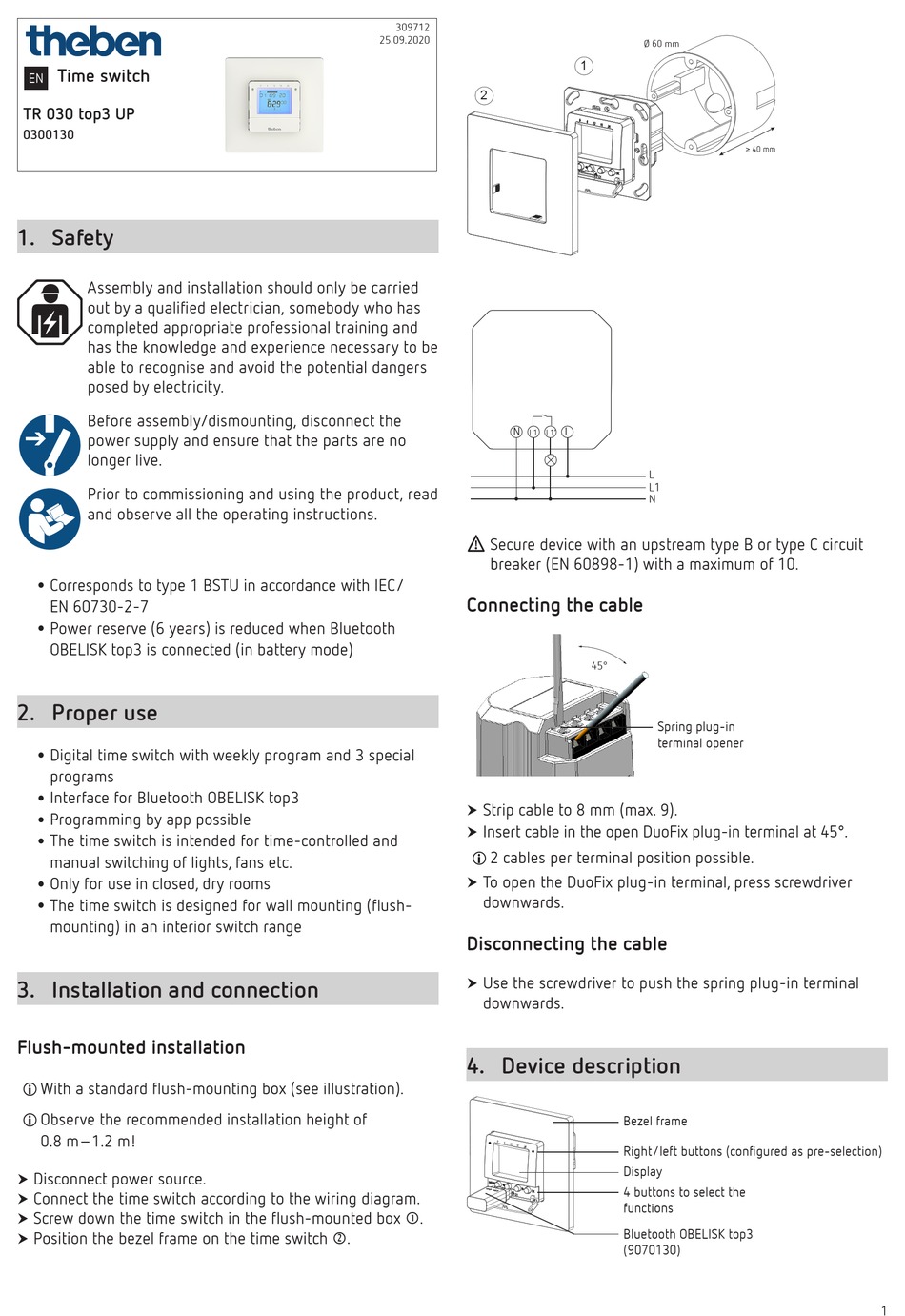

Theben TR 030 top3 UP Manual

Time switch
EN
TR 030 top3 UP
0300130
1. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before assembly/dismounting, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
and observe all the operating instructions.
•
Corresponds to type 1 BSTU in accordance with IEC/
EN 60730-2-7
•
Power reserve (6 years) is reduced when Bluetooth
OBELISK top3 is connected (in battery mode)
2. Proper use
•
Digital time switch with weekly program and 3 special
programs
•
Interface for Bluetooth OBELISK top3
•
Programming by app possible
•
The time switch is intended for time-controlled and
manual switching of lights, fans etc.
•
Only for use in closed, dry rooms
•
The time switch is designed for wall mounting (flush-
mounting) in an interior switch range
3. Installation and connection
Flush-mounted installation
L With a standard flush-mounting box (see illustration).
L Observe the recommended installation height of
0.8 m–1.2 m!
Disconnect power source.
†
Connect the time switch according to the wiring diagram.
†
Screw down the time switch in the flush-mounted box .
†
Position the bezel frame on the time switch .
†
309712
25.09.2020
2
N
L1 L1'
!
Secure device with an upstream type B or type C circuit
breaker (EN 60898-1) with a maximum of 10.
Connecting the cable
Strip cable to 8 mm (max. 9).
†
Insert cable in the open DuoFix plug-in terminal at 45°.
†
L 2 cables per terminal position possible.
To open the DuoFix plug-in terminal, press screwdriver
†
downwards.
Disconnecting the cable
Use the screwdriver to push the spring plug-in terminal
†
downwards.
4. Device description
Ø 60 mm
1
L
L
L1
N
45°
Spring plug-in
terminal opener
Bezel frame
Right/left buttons (configured as pre-selection)
Display
4 buttons to select the
functions
Bluetooth OBELISK top3
(9070130)
≥ 40 mm
1
