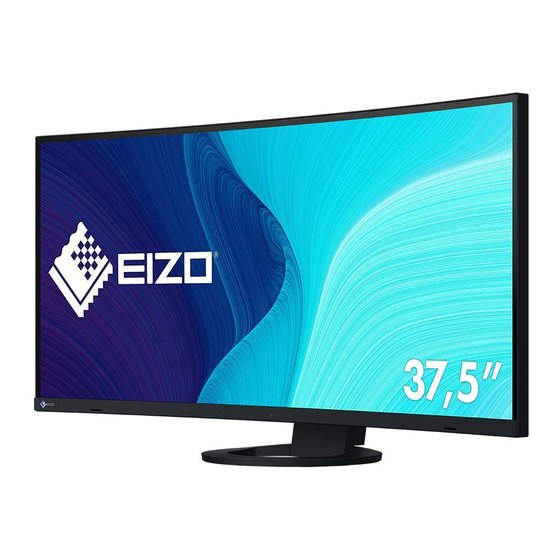

Eizo FlexScan EV3895 User Manual
  1. Manuals
  2. Brands
  3. Eizo Manuals
  4. Monitor
  5. FlexScan EV3895
  6. User manual

Eizo FlexScan EV3895 User Manual

Color lcd monitor
Hide thumbs Also See for FlexScan EV3895:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
Color LCD Monitor
Important
Please read this "User's Manual", and "PRECAUTIONS" (separate
volume) carefully to familiarize yourself with safe and effective
usage.
• Refer to the "Setup Guide" for information on the installation /
connection of the monitor.
• For the latest product information including the "User's Manual",
refer to our web site :
www.eizoglobal.com

Advertisement

Table of Contents
loading

Related Manuals for Eizo FlexScan EV3895

Summary of Contents for Eizo FlexScan EV3895

  • Page 1 User’s Manual Color LCD Monitor Important Please read this “User’s Manual”, and “PRECAUTIONS” (separate volume) carefully to familiarize yourself with safe and effective usage. • Refer to the “Setup Guide” for information on the installation / connection of the monitor. •...
  • Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 3: Notice For This Monitor

    When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not press on the LCD panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc.

  • Page 4: Cleaning

    About the Installation If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use. When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor.

  • Page 5: Table Of Contents

    CONTENTS Notice for this monitor ......... 3 Chapter 4 Connecting Multiple PCs ....27 Cleaning ..............4 4-1. Connecting Multiple PCs ......27 ● Connection examples ........27 To use the monitor comfortably ......4 4-2. Using PbyP Display ........28 CONTENTS .............

  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features ● Curved Monitor This monitor comes equipped with a curved LCD panel with a resolution of 3840 x 1600. Two windows can be aligned side-by-side for seamless display.

  • Page 7: Support For Displayport Alt Mode / Usb Power Delivery

    ● Support for DisplayPort Alt Mode / USB Power Delivery This product is equipped with a USB-C connector and supports the transmission of video signals (DisplayPort Alt Mode) as well as the charging of USB devices (USB Power Delivery). It supplies a maximum of 85 W of power to a connected notebook PC when used as an external monitor.

  • Page 8: Realizing More Convenient Operations Using Screen Instyle

    ● Realizing More Convenient Operations Using Screen InStyle The "Screen InStyle" monitor control utility enables you to use the monitor more conveniently. • The monitor color mode can be switched automatically to suit the software to be used. • You can switch input signals using the shortcut keys on the keyboard. •...

  • Page 9: Rear

    ● Rear 6. Handle This handle is used for transportation. 7. Security lock slot Complies with Kensington’s MicroSaver security system. 8. Lock button Use this button to remove the monitor from the stand. 9. Cable holder Stores the cables. 10. Stand Adjusts the height and angle (tilt and swivel) of the monitor.

  • Page 10: Supported Resolutions

    1-3. Supported Resolutions The monitor supports the following resolutions. ● DisplayPort Two window display (2 PbyP) Layout 1 Layout 2 Layout 3 PbyP-A PbyP-A PbyP-B PbyP-C PbyP-C PbyP-B Three window display (3 PbyP) Layout 1 Layout 2 Layout 3 PbyP-D PbyP-D PbyP-B PbyP-B...

  • Page 11: Hdmi

    ● HDMI Two window display (2 PbyP) Layout 1 Layout 2 Layout 3 PbyP-A PbyP-A PbyP-B PbyP-C PbyP-C PbyP-B Three window display (3 PbyP) Layout 1 Layout 2 Layout 3 PbyP-D PbyP-D PbyP-B PbyP-B PbyP-C PbyP-C PbyP-C PbyP-D PbyP-D Single Window Vertical Scan PbyP Display Display...

  • Page 12: Usb-C

    ● USB-C Two window display (2 PbyP) Layout 1 Layout 2 Layout 3 PbyP-A PbyP-A PbyP-B PbyP-C PbyP-C PbyP-B Three window display (3 PbyP) Layout 1 Layout 2 Layout 3 PbyP-D PbyP-D PbyP-B PbyP-B PbyP-C PbyP-C PbyP-C PbyP-D PbyP-D Single Window PbyP Display Vertical Scan Display...

  • Page 13: Changing The Computer Display Settings

    1-4. Changing the Computer Display Settings If the image is not displayed properly after connecting the monitor to a PC, follow the procedure below to change the display settings on the computer. ● Windows 10 1. Right-click the mouse anywhere on the desktop except on icons. A menu is displayed. 2.

  • Page 14: Chapter 2 Basic Adjustment / Setting

    Chapter 2 Basic Adjustment / Setting The input signals and display modes of this monitor can be switched according to your usage environment and preferences. This chapter describes the basic functions that can be adjusted and set using the switches on the front of the monitor.

  • Page 15: Switching Input Signals

    2-2. Switching Input Signals When a monitor has multiple signal inputs, the signal to display on-screen can be changed. For details on PbyP, see “4-2. Using PbyP Display” (page 28). Note • "Screen InStyle" allows you to switch input signals using the shortcut keys on the keyboard. 2-3.

  • Page 16: Adjusting Brightness

    2-4. Adjusting Brightness The brightness of the screen can be adjusted to suit the installation environment or personal preference. The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel). Setting Value 0 to 100 2-5.

  • Page 17: Chapter 3 Advanced Adjustment / Setting

    Chapter 3 Advanced Adjustment / Setting This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For basic functions, see “Chapter 2 Basic Adjustment / Setting” (page 14). 3-1. Basic Operation of the Setting Menu Menu display 1.

  • Page 18: Setting Menu Functions

    3-2. Setting Menu Functions ● Color Adjustment The color mode settings can be adjusted according to personal preference. Functions that can be adjusted differ depending on the color mode. √: Adjustable -: Not adjustable Color Mode Function User1 sRGB Paper Movie DICOM User2...
  • Page 19 Function Setting Value Description Color Mode User1 Select the desired mode according to the monitor application. User2 The color mode settings can also be adjusted according to sRGB personal preference. Select the mode for adjustment and perform Paper adjustment using the relevant functions. Movie Note DICOM...
  • Page 20 Function Setting Value Description Advanced Overdrive Off This function allows you to set the overdrive based on the use of Settings the monitor. Image lag can be reduced by using the “On” setting when displaying moving images. Note • Depending on the display resolution and the setting of “Picture Expansion”...

  • Page 21: Signal Settings

    ● Signal Settings Set the details regarding input signal, such as the screen display size and color format. Function Setting Value Description Window Selection Left Select the window to apply the “Signal Settings” to during PbyP Right display. For details on layouts for PbyP display, see “4-2.
  • Page 22 Function Setting Value Description Input Color Format Auto The color format of the input signal can be specified. YUV 4:2:2 Try changing this setting if colors are not displayed correctly. YUV 4:4:4 Input Range Auto Depending on the video reproduction device, there may be a Full restriction on black and white video signal levels output to the Limited...

  • Page 23: Preference Settings

    ● Preference Settings The monitor’s settings can be configured to suit the usage environment or personal preference. Function Setting Value Description Power Save The monitor can be set to enter power saving mode according to the state of the PC. The monitor changes to power saving mode about 15 seconds after signal input ceases to be detected.
  • Page 24 Function Setting Value Description DisplayPort USB-1 (USB-C) When two or three PCs are connected to one monitor, you can Selection HDMI 1 USB-2 link the input signal with the USB upstream port. For details, see HDMI 2 USB-3 “4-3. Linking the Input Signal and USB Port” (page 31).

  • Page 25: Ecoview Settings

    ● EcoView Settings This monitor is equipped with EcoView functions to enable users to conserve energy. If you use Auto EcoView, which is one of the EcoView functions, the screen brightness is automatically adjusted according to the ambient brightness. Function Setting Value Description Auto EcoView...

  • Page 26: Language

    ● Language The display language for menus and messages can be selected. Setting Value English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese Attention • The display language of the “Administrator Settings” menu cannot be changed. ● Information You can check the monitor information (model name, serial number (S/N), firmware version, usage time) and the input signal information.

  • Page 27: Chapter 4 Connecting Multiple Pcs

    Chapter 4 Connecting Multiple PCs 4-1. Connecting Multiple PCs This product can be connected to multiple PCs and allows you to switch between the connections for display. ● Connection examples HDMI DisplayPort USB-C CC200SS-5A HH200PR PP200 HDMI cable DisplayPort cable CC200SSW-5A (HDMI - HDMI) (DisplayPort - DisplayPort)

  • Page 28: Using Pbyp Display

    4-2. Using PbyP Display If you select PbyP display and input multiple signals to the monitor, you can display multiple windows side-by-side. Up to three windows can be displayed on one screen, so switching signals is no longer necessary and work productivity improves. The combination of signals can also be changed. ●...
  • Page 29 Three window display (3 PbyP) Layout 1 Layout 2 Layout 3 Upper Right Upper Left Left Right Left Center Right (Main window) (Main window) Lower Right Lower Left Function Setting Value Description Layout Layout 1 Select a layout. Layout 2 Layout 3 Main Window Swap Upper Left Select the window to use as the main window.

  • Page 30: Swapping The Main Window Of Three Window Display

    ● Swapping the Main Window of Three Window Display When using three window PbyP display, select the operation switch ( ) on the front of the monitor to swap the main window. • When “Upper Right” is selected for “Main Window Swap” •...

  • Page 31: Linking The Input Signal And Usb Port

    4-3. Linking the Input Signal and USB Port When two or three PCs are connected to one monitor, you can link the input signal with the USB upstream port. This makes it possible to connect USB devices such as a mouse or keyboard to the monitor and use them from multiple PCs.
  • Page 32 Switching USB Ports Use either of the following methods to switch the USB upstream port. ● Change the input signal. The USB upstream port switches automatically. Input signal: USB-C Input signal: DisplayPort Switches automatically USB port: USB-C USB port: USB-B ●...

  • Page 33: Chapter 5 Administrator Settings

    Chapter 5 Administrator Settings This chapter describes how to configure monitor operation using the “Administrator Settings” menu. 5-1. Basic Operation of the “Administrator Settings” Menu Menu display 1. Touch to turn off the monitor. 2. While touching the leftmost switch, touch for more than 2 seconds to turn on the monitor.

  • Page 34: Functions Of The "Administrator Settings" Menu

    5-2. Functions of the “Administrator Settings” Menu Function Setting Value Description Auto Input Detection On This function automatically recognizes the connector through which PC signals are input, and displays images on the screen accordingly. • “On” When the monitor is connected to multiple PCs, if a specific PC enters power saving mode or no signals are input to the monitor, the connector is automatically changed to another one to which signals are input.
  • Page 35 USB communication speed of 480 Mbps. On-Screen Logo When the monitor is turned on, the EIZO logo appears on the screen. When this function is set to “Off”, the EIZO logo does not appear.

  • Page 36: Chapter 6 Troubleshooting

    Chapter 6 Troubleshooting 6-1. No Picture Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. • Power indicator does not light up. • Turn on the main power switch on the rear side of the monitor. •...
  • Page 37 Problem Possible cause and remedy • This message appears when the • Check whether “USB” in the “Administrator Settings” menu is set to USB port of the monitor is disabled. “On” (see “USB” (page 35)). Example: Chapter 6 Troubleshooting...

  • Page 38: Imaging Problems

    18)). (The LCD monitor backlight has a limited life span. If the screen becomes dark or begins to flicker, contact your local EIZO representative.) • If the screen is too bright, try changing the Auto EcoView setting to “On”. The monitor detects the ambient brightness to adjust the screen brightness automatically (see “Auto EcoView”...

  • Page 39: Other Problems

    46)). • If the peripheral devices work correctly when they are directly connected to the PC, contact your local EIZO representative. • Depending on the USB host controller you are using, the connected USB device may not be recognized properly. Update to the latest USB driver provided by the manufacturer, or connect the monitor to the USB 2.0 port.
  • Page 40 Problem Possible cause and remedy 7. The PC does not work when • Check whether the PC has the specifications to operate with 85 W power is supplied from the of power supply. monitor (USB Power Delivery) • Use the following USB cables for 85 W power supply. - CC200SS-5A or CC200SSW-5A (Included) - CC100 (Separately sold accessory) Chapter 6 Troubleshooting...

  • Page 41: Chapter 7 Attaching/Removing The Stand

    Chapter 7 Attaching/Removing the Stand 7-1. Removing the Stand The stand section of this product can be removed. Attention • Do not move the stand up and down after removing it. If you move the stand up and down while it is not attached to the monitor, this may cause damage or injury.

  • Page 42: Attaching The Optional Arm

    7-2. Attaching the Optional Arm By removing the stand from the monitor, it is possible to attach the monitor to a different arm or stand. Attention • When attaching an arm or stand, follow the instructions of the respective User’s Manual. •...

  • Page 43: Attaching The Original Stand

    7-3. Attaching the original stand Lay the LCD monitor on a cushion or a soft cloth spread over a stable and flat surface with the LCD panel surface facing down. Attention • The LCD panel is curved and may be damaged if placed on a hard surface. Remove the fixing screws on the optional arm (or optional stand), and detach the optional arm (or optional stand).

  • Page 44: Chapter 8 Reference

    Chapter 8 Reference 8-1. Using the Docking Station Function This product is equipped with a LAN port and USB hub so that it can be used as a docking station. By connecting a USB-C cable, you can create a stable network environment even on notebook PCs or tablet devices that are not equipped with LAN ports.
  • Page 45 Attention • When the OS of the PC you are using is Windows 8.1, it is necessary to install the driver to use the LAN port. The driver is stored in the monitor. If you connect the PC and the monitor with a USB cable, the installation screen appears.

  • Page 46: Specifications

    8-2. Specifications LCD Panel Type IPS (Anti-Glare) Backlight Size 95.3 cm (37.5 inch) Resolution 3840 dots × 1600 lines Display Size (H × V) 879.7 mm × 366.5 mm Pixel Pitch 0.229 mm × 0.229 mm Display Colors 8-bit colors: 16.77 million colors Viewing Angle 178˚...

  • Page 47: Accessories

    Audio Audio Input Format DisplayPort: 2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz) HDMI: 2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz) USB-C (DisplayPort Alt Mode): 2ch linear PCM (32 kHz / 44.1 kHz /...

  • Page 48: Appendix

    Ethernet is a registered trademark of Fuji Xerox Co., Ltd. EIZO, the EIZO Logo, ColorEdge, CuratOR, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorEdge Tablet Controller, ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO Monitor Configurator, EIZO ScreenSlicer, G-Ignition, i•Sound, Quick Color Match, RadiLight, Re/Vue, SafeGuard, Screen...
  • Page 49 03V28545B1 UM-EV3895 Copyright © 2020 EIZO Corporation. All rights reserved. 2nd Edition - October, 2020...
