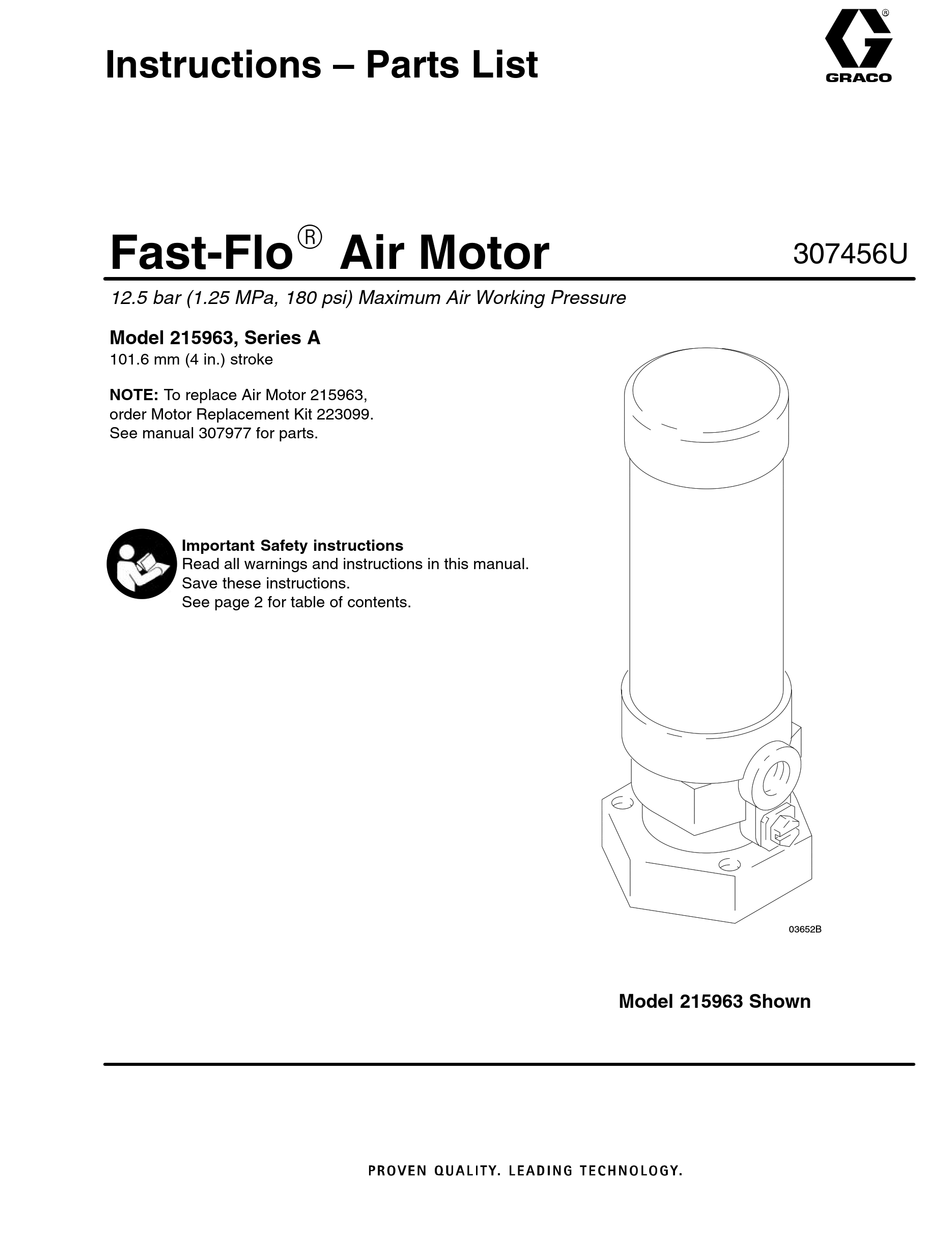

Instructions – Parts List
Fast-Flo
12.5 bar (1.25 MPa, 180 psi) Maximum Air Working Pressure
Model 215963, Series A
101.6 mm (4 in.) stroke
NOTE: To replace Air Motor 215963,
order Motor Replacement Kit 223099.
See manual 307977 for parts.
Important Safety instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for table of contents.
R
Air Motor
307456U
03652B
Model 215963 Shown
Advertisement
Related Manuals for Graco Fast-Flo 215963
Summary of Contents for Graco Fast-Flo 215963
- Page 1 Instructions – Parts List Fast-Flo Air Motor 307456U 12.5 bar (1.25 MPa, 180 psi) Maximum Air Working Pressure Model 215963, Series A 101.6 mm (4 in.) stroke NOTE: To replace Air Motor 215963, order Motor Replacement Kit 223099. See manual 307977 for parts. Important Safety instructions Read all warnings and instructions in this manual.
- Page 2 D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
- Page 3 WARNING SKIN INJECTION HAZARD Spray from the gun, leaks, or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin might look like just a cut, but it is a serious injury.
- Page 4 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames, or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. D Ground the equipment and the object being sprayed/dispensed. Refer to Grounding on page 5.
- Page 5 Installation Grounding To ground the pump: 1. UL–Listed Pumps: Use a ground wire, connector, Proper grounding is an essential part of maintaining a and clamp. See Fig. 1. Loosen screw (X). Insert safe system. one exposed end of a 12 ga (1.5 mm ) minimum ground wire (Y) through the eye of the ground terminal connector (W) and tighten screw (X)
- Page 6 Troubleshooting Relieve the Pressure before you check or service any WARNING system equipment. To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the NOTE: Check all other possible problems and solu- Pressure Relief Procedure on page 5. tions before disassembling the pump.
- Page 7 Service NOTE: Repair Kit 214584 is available. For best results, 5. A decrease in performance accompanied by a use all the new parts in the kit, even if the old parts slower than normal cycle rate is commonly caused look good. Parts included in the kit are marked with a by icing.
- Page 8 Service 220168 Air Valve and Motor Cap and Cylinder Piston Assembly (11) 6† Piston Rod and Base Apply Sealant Torque to 1.3–1.6 NSm (10–14 in-lb) Use pliers (B) only when removing piston. Do not use when tightening piston to rod (23). †9 Piston Detail 0.8 mm (0.032 in.) Min.
- Page 9 Parts †6 9† 10† 6† Apply Sealant Torque to 1.3–1.6 NSm (10–14 in-lb) 03655B Part No. Description Qty. Part No. Description Qty. 116343 SCREW, grounding, 181485 . SPACER, valve plate for non–listed pumps 189210 . PISTON, air, aluminum 104029 LUG, grounding, for UL–listed pumps 1 181487 .
- Page 10 Dimensions 59 mm (2.32 in.) diameter 201 mm (7.9 in.) 1/4–18 npt(f) 03652B Mounting Hole Layout 32 mm (1.26 in.) 8.50 mm (0.33 in.) Diameter 16 mm (0.63 in.) 27.71 mm (1.09 in.) 307456...
- Page 11 Technical Data Maximum inbound air pressure ..........12.5 bar (1.25 MPa,180 psi) Air inlet size .
- Page 12 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
