Lindy 70577 Manual

Low Profile
PCI Card 2S 16C650
LINDY Art. Nr. 70577
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - APR 2001
English Manual
Low Profile PCI Card 2S 16C650
Description

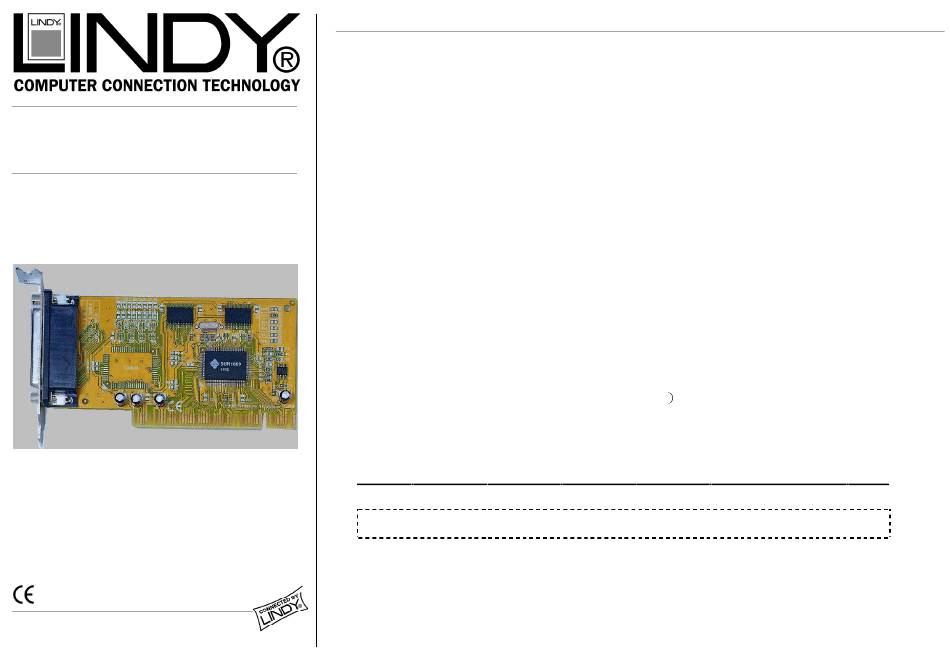

The 70577 32Bit PCI bus Plug & Play 2S I/O card is equipped with two High-Speed RS-232.V24 Standard Serial
Interfaces. The serial ports include 32 Byte FIFO with a speed up to 921Kb/Sec. 70577 includes two 9 pin male
connectors for attaching peripherals´ units.
Hardware Specification
Serial Port:
UART Chipset: SUN1889, Hardware FIFO: 32Byte FIFO
Compatible chips: with 16C650, 16C550 and 16C450.
IEEE standard: RS-232 Interface
Driver Chipset: TI-75232, speed up to 100Kb/Sec, length 300-500m
Max. Speed: up to 921Kb/Sec (HYPER Terminal program)
Hardware Installation
½
Turn off the power of your computer
½
Plug the 70577 Serial Adapter to the PCI bus of your computer
½
Connect the peripheral (Printer, Modem, Scanner... etc. to this adapter
½
Turn on the power of your computer
PCI device listing display (for example...)
Bus No Device No Func. No
0 7
0 13
When Vendor ID, Device ID, Device Class or IRQ aren't displayed or an error occurs, please change
the PCI slot. After correct hardware installation you can start installing the software from the driver CD.
Vendor ID Device ID
1 8086 7010
0 1409 7168
Device Class IRQ
IDE Controller 14
Simple COMM.
10
Controller
