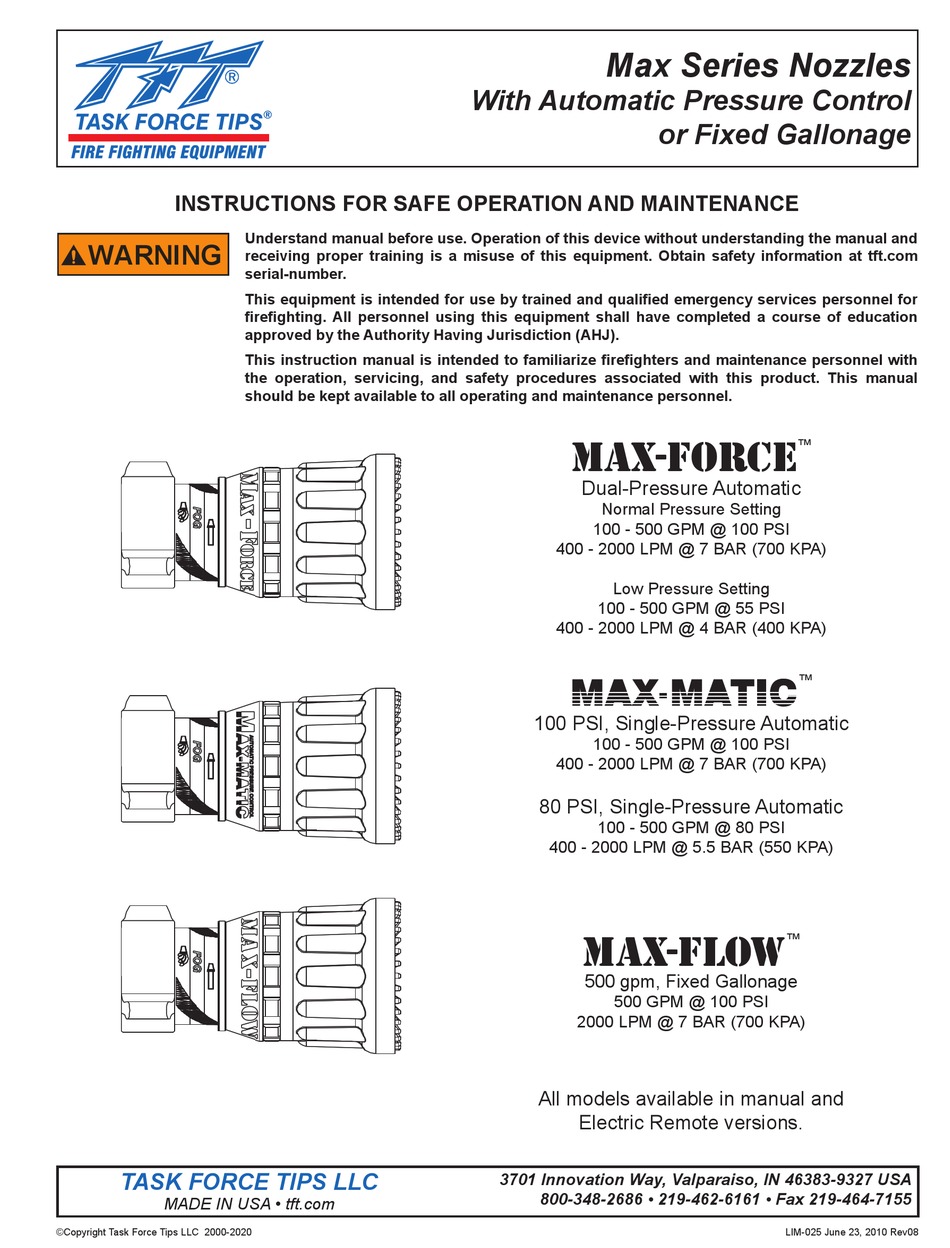

INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
TASK FORCE TIPS LLC
MADE IN USA • tft.com
©Copyright Task Force Tips LLC 2000-2020
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com
serial-number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with
the operation, servicing, and safety procedures associated with this product. This manual
should be kept available to all operating and maintenance personnel.
Max Series Nozzles
With Automatic Pressure Control
MAX-FORCE
Dual-Pressure Automatic
Normal Pressure Setting
100 - 500 GPM @ 100 PSI
400 - 2000 LPM @ 7 BAR (700 KPA)
Low Pressure Setting
100 - 500 GPM @ 55 PSI
400 - 2000 LPM @ 4 BAR (400 KPA)
100 PSI, Single-Pressure Automatic
100 - 500 GPM @ 100 PSI
400 - 2000 LPM @ 7 BAR (700 KPA)
80 PSI, Single-Pressure Automatic
100 - 500 GPM @ 80 PSI
400 - 2000 LPM @ 5.5 BAR (550 KPA)
MAX-Flow
500 gpm, Fixed Gallonage
500 GPM @ 100 PSI
2000 LPM @ 7 BAR (700 KPA)
All models available in manual and
Electric Remote versions.
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
or Fixed Gallonage
™
™
™
LIM-025 June 23, 2010 Rev08
Advertisement
Table of Contents
Related Manuals for TFT Max Series
Summary of Contents for TFT Max Series
- Page 1 Understand manual before use. Operation of this device without understanding the manual and WARNING receiving proper training is a misuse of this equipment. Obtain safety information at tft.com serial-number. This equipment is intended for use by trained and qualified emergency services personnel for firefighting.
-
Page 2: Table Of Contents
INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE Reach Factor (compared to 30° elevation) Understand manual before use. Operation of this device without understanding the manual and DANGER receiving proper training is a misuse of this equipment. Obtain safety information at www.tft. com/serial-number 85° 75°... -
Page 3: Meaning Of Signal Words
1.0 MEANING OF SAFETY SIGNAL WORDS A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular hazard. Per ANSI standard Z535.6-2006, the definitions of the four signal words are as follows: DANGER indicates a hazardous situation which, if not avoided, will result in death or serious DANGER injury. -
Page 4: General Information
All Max Series nozzles are constructed of hardcoat anodized aluminum and UV resistant rubber. This rugged construction is compatible with the use of fresh water as well as firefighting foam solutions. The Max-Force and Mid-Matic are intended for use on fixed or portable monitors. -
Page 5: Electric Installation
When used with a TFT RC Monitor equipped with Smart Stream technology, the Fog button must be pressed and held a second time to reach the Flush position, shown in Figure 3. The purpose of the Smart Stream feature is to prevent unintentional flushing of the nozzle, which will reduce reach and increase the flow rate, potentially depleting the water supply more quickly. -
Page 6: Use Of Max Series Nozzles
(IFSTA), or sources approved by the Authority Having Jurisdiction (AHJ). DL = Device loss in PSI EL = Elevation loss in PSI 5.0 FLOW CHARACTERISTICS The following graphs show typical performance of the various models of Max Series nozzles. 1200 1600 2000... -
Page 7: Stream Trajectory Data
5.1 STREAM TRAJECTORY DATA Tables and graphs in this section give the stream trajectory for the Max Series nozzles at various flows. Notes on trajectory graphs: • Graphs show approximate effective stream trajectory at 30 degrees elevation in no wind conditions. Distance to last water drops approximately 10% farther. -
Page 8: Flow Charts
5.2 FLOW CHARTS 2 ½” HOSE 3” HOSE 100 FT 150 FT 200 FT 300 FT 100 FT 150 FT 200 FT 300 FT MAX-FORCE MAX-MATIC 100 PSI ON BLITZFIRE FLOWS IN GPM Figure 5.2A 2 ½” HOSE 3” HOSE 100 FT 150 FT 200 FT... -
Page 9: Use With Foam
Generally, the straight stream reach with foam is approximately 10% less than with water only. Actual results will vary based on brand of foam, hardness of water, temperature, etc. For specific information, see LIA-025 (MANUAL: Foam Attachments for TFT Nozzles). ©Copyright Task Force Tips LLC 2000-2020... -
Page 10: Warranty
46383-9327 USA, within a reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair. -
Page 11: Maintenance
Performance tests shall be conducted on the equipment after a repair, or anytime a problem is reported to verify operation in accordance with TFT test procedures. Consult factory for the procedure that corresponds to the model and serial number of the equipment. -
Page 12: Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 • 219-462-6161 • Fax 219-464-7155 MADE IN USA • tft.com ©Copyright Task Force Tips LLC 2000-2020 LIM-025 June 23, 2010 Rev08...
