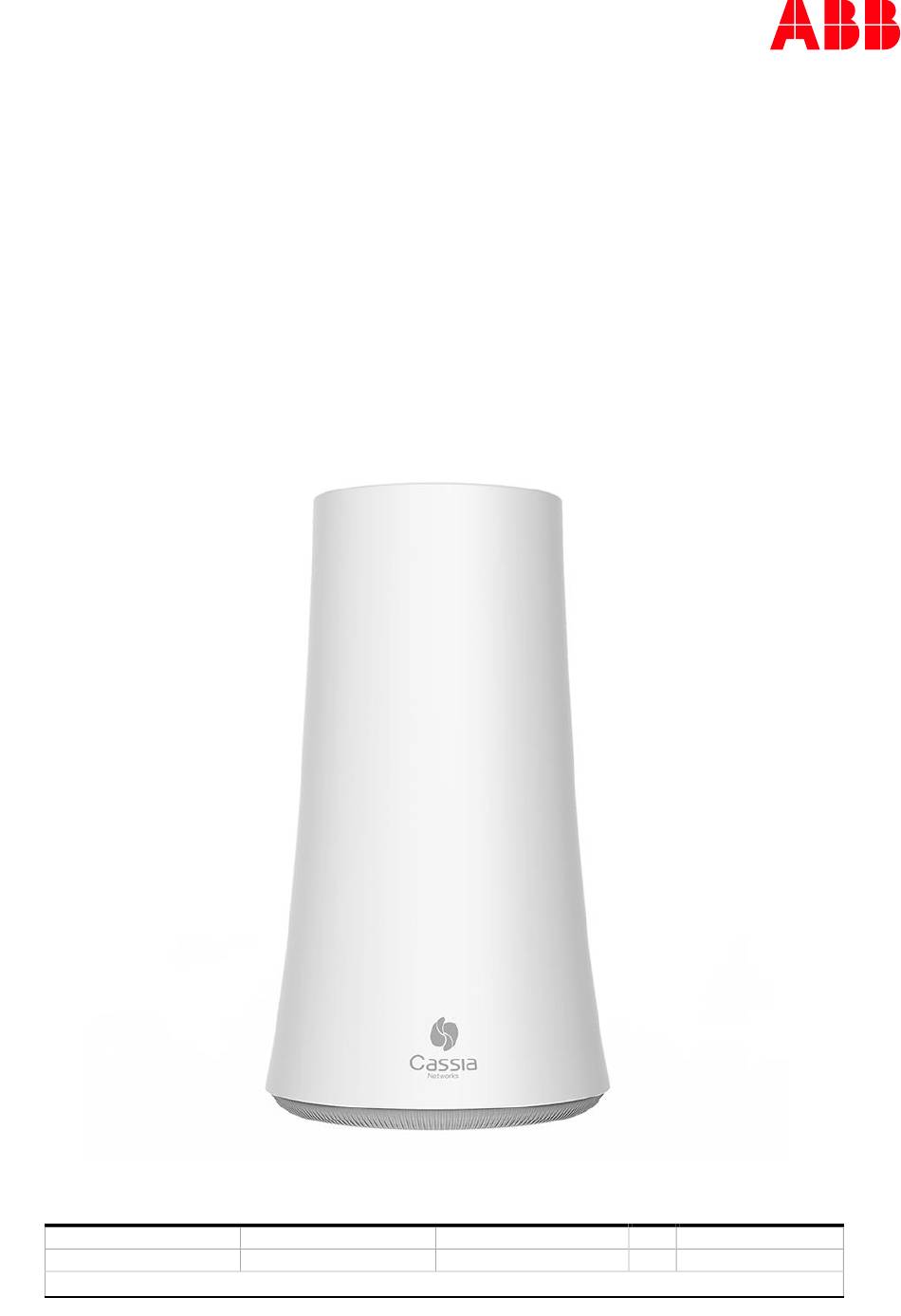

- Page 1 — T EC H N IC A L D O CUM E NT ABB Ability™ Smart Sensor Gateway Installation with Huawei E8372 DOCUMENT ID REV. DATE LANG. PAGE 9AKK107680A2227 January 2020 © Copyright 2020 ABB. All rights reserved.
- Page 2 AB B ABI LIT Y™ SM ART S ENSO R G AT EWAY Table of Contents WIFI Modem installation DOCUMENT ID REV. DATE LANG. PAGE January 2020 9AKK107680A2227 © Copyright 2020 ABB. All rights reserved.
-
Page 3: Wifi Modem Installation
Figure 2 Modem default WIFI SSID and password location Power up the gateway. With computer connect to modem WIFI network. Open web browser and go to address http://192.168.8.1 DOCUMENT ID REV. DATE LANG. PAGE January 2020 9AKK107680A2227 © Copyright 2020 ABB. All rights reserved. - Page 4 Figure 3 Language selection for E8372 Modem will ask to give credentials. Should be admin/admin but please check from modem documentation Figure 4 Credentials query DOCUMENT ID REV. DATE LANG. PAGE January 2020 9AKK107680A2227 © Copyright 2020 ABB. All rights reserved.
- Page 5 Go to WLAN Basic Settings and change the SSID and password if needed. Figure 5 Change WIFI network name and password Next connect to gateway configuration hotspot cassia-XXXXXX. Go to Basic tab: DOCUMENT ID REV. DATE LANG. PAGE January 2020 9AKK107680A2227 © Copyright 2020 ABB. All rights reserved.
- Page 6 Connect again to USB WIFI Modem network and go to web page http://192.168.8.1 Go to Statistics tab and find out the new IP address of corresponding gateway MAC address: DOCUMENT ID REV. DATE LANG. PAGE January 2020 9AKK107680A2227 © Copyright 2020 ABB. All rights reserved.
- Page 7 Type this IP address to web browser address field to get back to gateway configuration page. On Status tab you can see if the gateway goes online. DOCUMENT ID REV. DATE LANG. PAGE January 2020 9AKK107680A2227 © Copyright 2020 ABB. All rights reserved.
- Page 8 If there is no time shown please try to refresh the screen. After bootup it might take minute or two to make the connection with the server. DOCUMENT ID REV. DATE LANG. PAGE January 2020 9AKK107680A2227 © Copyright 2020 ABB. All rights reserved.
