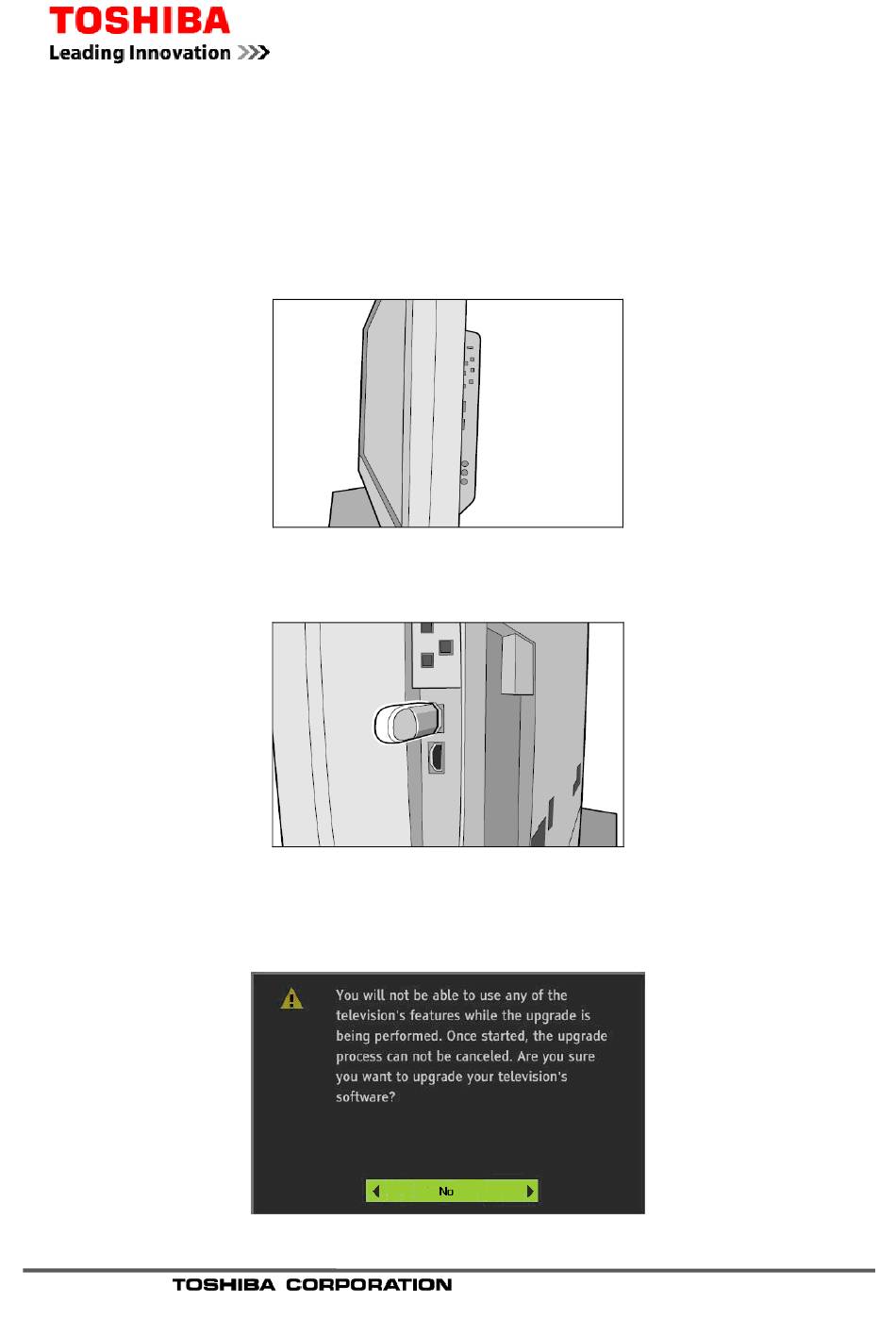

How to upgrade the Software
1
Connect the AC power and turn "ON" the TV receiver.
2
The USB reader is located on the left or right of the cabinet near the side control/jack assembly as
shown in Figure1.
3
Insert the "USB Drive" into the USB slot as shown in Figure2.
4
After insertion of USB Drive into reader slot a firmware upgrade information window will appear as
shown in Figure3.
Copyright 2010
Figure1
Figure2
Figure3
All Rights Reserved
Page 1 of 2
Advertisement
Related Manuals for Toshiba 55WL768B
Summary of Contents for Toshiba 55WL768B
- Page 1 How to upgrade the Software Connect the AC power and turn “ON” the TV receiver. The USB reader is located on the left or right of the cabinet near the side control/jack assembly as shown in Figure1. Figure1 Insert the “USB Drive” into the USB slot as shown in Figure2. Figure2 After insertion of USB Drive into reader slot a firmware upgrade information window will appear as shown in Figure3.
- Page 2 If the window is no present, remove the USB Drive and try reinserting the USB Drive again. Start the software upgrade by using the “left or right arrow” key of the remote control to select “Yes”. Press “OK” key of the remote control to begin the upgrade. The software upgrading process will begin.
