3Com SuperStack II 3C16611 User Manual

12-port tp/24-port tp
Hide thumbs

Advertisement

Table of Contents

I
NTRODUCTION

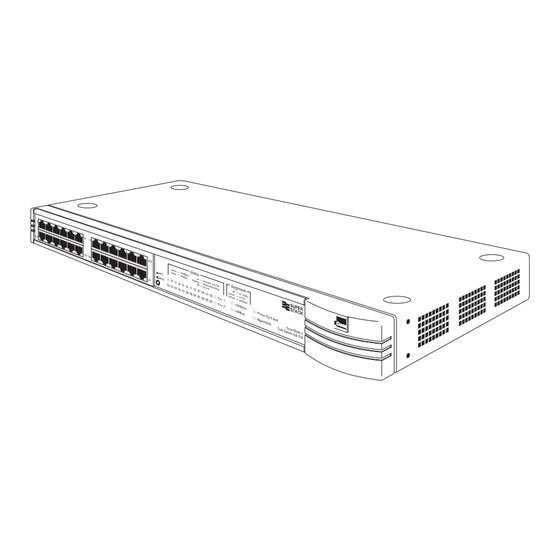

The SuperStack® II Dual Speed Hub 500 is an easy-to-use, 10/100
autosensing manageable and stackable hub (repeater). It is ideal for
users that want the power of Fast Ethernet and the flexibility to connect
10Mbps devices (workstations and other equipment) in the same hub or
stack.
The Dual Speed Hub 500 has 12 or 24 shielded RJ45 10/100 autosensing
ports on the front panel which can both be used to connect 10BASE-T
(Ethernet) or 100BASE-TX (Fast Ethernet) devices to the hub. There are
two segments (10Mbps and 100Mbps) in the hub, which are linked by a
switch, so your 10Mbps and 100Mbps workstations and equipment can
communicate.
The hub also has two transceiver module slots that can be fitted with a
Management Module, or 3Com 10Mbps or 100Mbps modules to provide
you with additional types of network connection. For information on
what modules can be used, refer to the " Products " section in this guide.
The Dual Speed Hub 500 comes with:
One power cord for use with the Dual Speed Hub 500
Four self-adhesive rubber pads
Mounting kit
A Warranty Registration card for you to fill out and return
The Dual Speed Hub 500 is suited for office use where it can be free
standing, wall-mounted, or rack-mounted (in a wiring closet or
equipment room).
SuperStack® II Dual Speed Hub 500
12-Port TP (3C16610) and 24-Port TP (3C16611)
User Guide
DUA1661-0AAA02
The unit can be powered either from the AC mains supply, or through
an optional 3Com SuperStack II Advanced Redundant Power System
(3C16070). Contact your supplier for details.
To provide maximum flexibility and expandability, the Dual Speed
Hub 500 can be used with a range of other equipment:
Using Cascade Cables, you can connect up to eight Dual Speed
Hub 500 units to form a logical repeater (called a stack ), providing
up to 208 ports per stack. The 10Mbps and 100Mbps segments in
each hub are connected by the Cascade Cables. Using additional
Hot Swap Cascade Units, you can add resilience to the cascade
connections so that you can remove units at any time without it
affecting communication across the other units in the stack.
Using the MDI switch on the front panel, you can connect a
10BASE-T or 100BASE-TX unit or stack to the Dual Speed Hub 500.
Using a Dual Speed Hub – PS Hub Cascade Converter Kit, you can
stack Dual Speed Hub 500 units with existing SuperStack II
PS Hubs. The whole stack can be managed as a single entity. The
maximum number of units that you can connect this way to form
a stack is eight.
Refer to the " Products " section in this guide for information on obtaining
these products.
1

Advertisement

Table of Contents
loading

Related Manuals for 3Com SuperStack II 3C16611

Summary of Contents for 3Com SuperStack II 3C16611

  • Page 1 The hub also has two transceiver module slots that can be fitted with a Management Module, or 3Com 10Mbps or 100Mbps modules to provide you with additional types of network connection. For information on what modules can be used, refer to the “ Products ” section in this guide.

  • Page 2: Network Connections

    Command Line Interface that are supplied. Alternatively, you may want to use an SNMP network management application (for example 3Com’s powerful Transcend® Enterprise Manager for Windows®) or RMON (remote monitoring) application.

  • Page 3: Rear Panel Connections

    Advanced Redundant Power System and the power module. Two Transceiver Module Slots A variety of 3Com modules and transceiver modules can be installed in the Dual Speed Hub 500, including the Management Module; refer to the “ Products ” section in this guide.

  • Page 4: Rack Or Wall Mounting

    Water or moisture cannot enter the case of the unit. Air flow around the unit and through the vents in the side of the case is not restricted (3Com recommend that you provide a minimum of 25mm (1in.) clearance). Never stack units more than six high if free standing, and ensure that cables are supported so that they do not cause the stack to fall over.

  • Page 5: S Afety I Nformation

    AFETY Please read the following safety information carefully before installing the Dual Speed Hub 500. WARNING: Installation and removal of the unit must be carried out by qualified personnel only. If installing the unit in a stack with SuperStack II units, it must be installed above the larger units.
  • Page 6 OUNTING Introduction The Dual Speed Hub 500 is supplied with two mounting brackets and four screws. These are used for rack mounting and wall mounting the unit. When mounting the unit, you should take note of the guidelines given in “ Positioning the Dual Speed Hub 500 ” overleaf. Wall Mounting the Units CAUTION: Disconnect all cables from the unit(s) before continuing.

  • Page 7: Limited Warranty

    Material Authorization (RMA) number marked on the outside of the package, and sent prepaid, insured, and packaged appropriately for safe shipment. The repaired or replaced item will be shipped to Customer, at 3Com's expense, not later than thirty (30) days after receipt of the defective product by 3Com.

  • Page 8: World Wide Web Site

    LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you.
