Box contents

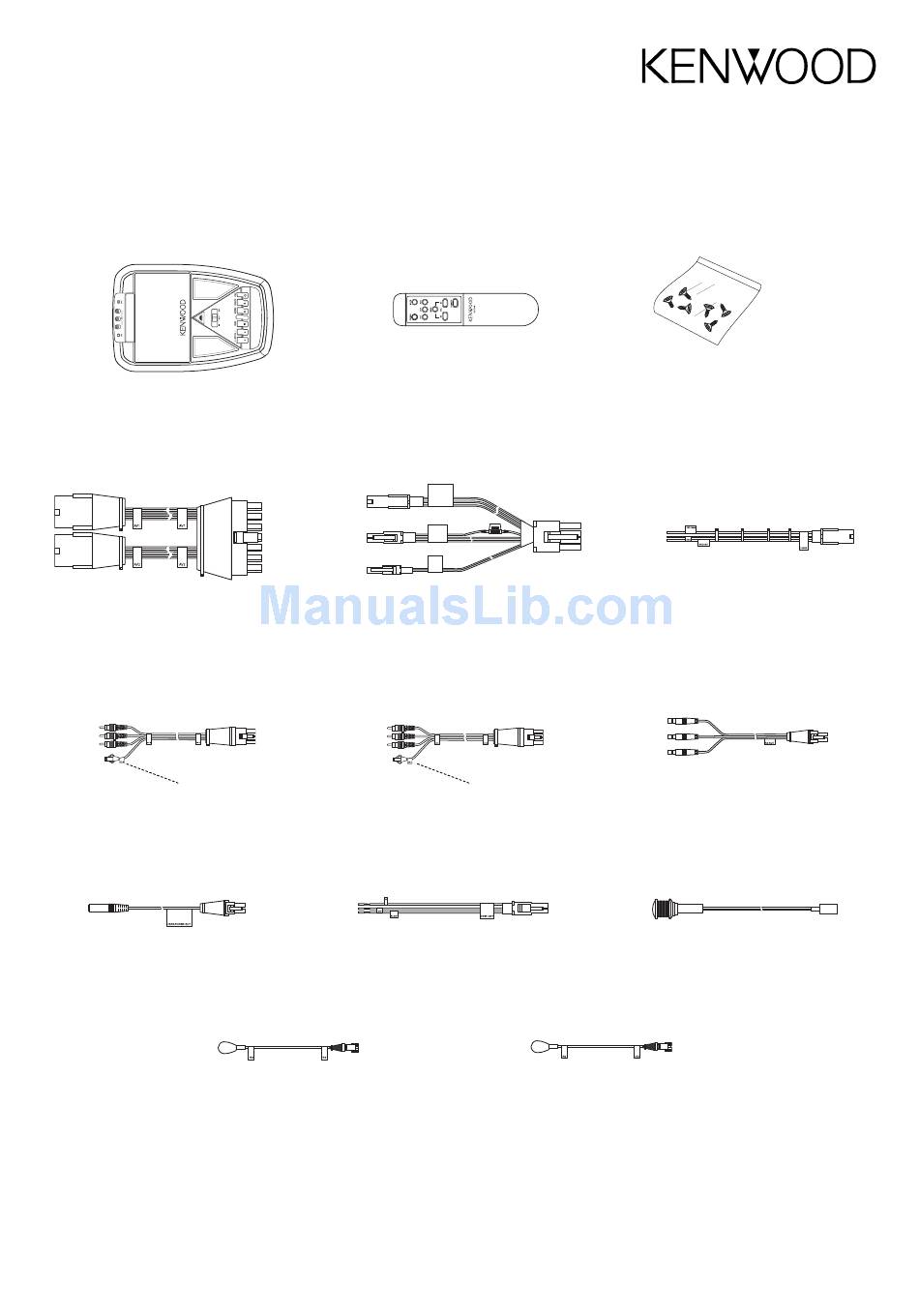

Unpack your LZH-70W carefully and make sure that everything listed here is present:
1 x LZH-70W
Overhead Console
1 x 46-cm A/V1 – A/V2 Input
Pigtail Connector
(part #Y662135-A)
1 x 5-m A/V1 Input
Wiring Harness
(part #Y662136-A)
Note: "IR1" on tag
1 x 46-cm Wired Headphone
Output Connector
(part #Y662130-A)
1 x 49.5-cm IR1 Infrared Emitter
If anything is missing or damaged, or if your LZH-70W fails to operate, notify your dealer immediately. If your
LZH-70W was shipped to you directly, notify your shipper immediately. Kenwood recommends that you retain the original car-
ton and packing materials in case you need to ship your LZH-70W in the future.
LZH-70W Installation Instructions
1 x RC-70W Wireless
1 x 46-cm Power/Dome Light/
Mute Switch Pigtail Connector
1 x 61-cm Dome Light
(part #Y662132-A)
(part #Y662137-A)
Remote Control
(part #Y662131-A)
DOME
LIGHT
POWER
ATT
SW
1 x 5-m A/V2 Input
Wiring Harness
(part #Y662161-A)
Note: "IR2" on tag
Wiring Harness
1 x 49.5-cm IR2 Infrared Emitter
(part #Y662162-A)
1 x Hardware Package
1 x 5.5-m Main Power
Wiring Harness
(part #Y662133-A)
1 x 46-cm A/V Output
Pigtail Connector
(part #Y662129-A)
1 x 5.5-m Parental
Interrupt/Mute Switch
(part #Y662134-A)
