Installation and Operating Instructions
Fan heater HL 185 T, HL 185/2, HL 185/3
1. Important information
Keep these instructions in a safe place and pass them on to
possible future owners.
• The device is only suitable for room heating within closed
rooms.
• Repairs and corrective measures must only be carried out
by a qualified technician.
• Disconnect the power supply in the event of a fault (pull out
the device plug or switch off the fuse).
• Do not cover the heating device with any objects;
fire hazard!
• Observe the minimum clearances.
• Caution! The outer surfaces of the device, and in
particular the air outlet grid, become hot during operation.
• Children or persons who are not capable of operating the
device safely must not operate the heating device. Ensure
that children do not play with the device.
• Caution! Potential dangers can arise when the device
switches on automatically, e.g. devices which have been
covered or blocked by objects since they were last used can
cause fires.
• Do not operate the heating device in rooms where highly
flammable substances are used (e.g. solvents, etc.).
• Power cord must not be laid over the device.
2. Technical data
Type
Nominal
output,
frequency
HL 185 T
2000 W,
50 Hz
HL 185/2
2000 W,
50 Hz
HL 185/3
700 W,
50 Hz
Degree of protection:
IP21 (drip proof)
Safety class:
I (with protective conductor)
Dimensions:
(W x H x D) 230 x 230 x 160 mm
Weight:
4.6 kg
3. Installation
The heating device may only be installed and operated on a
vertical wall, as shown.
Installation below a wall socket is not permitted.
The device plug and outlet must be accessible after
installation.
Install the device in such a manner that the controls cannot be
touched by a person in the bathtub or under the shower.
In addition, a minimum clearance of 200 mm is to be
maintained in front of the unit (air inlet area).
The device must be mounted to the wall with 3 screws. The
enclosed plastic bag contains screws and dowels.
Voltage
Thermo-
stat
230 V~
yes
1/N/PE
400 V~
none
none
2/PE
230 V~
yes
1/N/PE

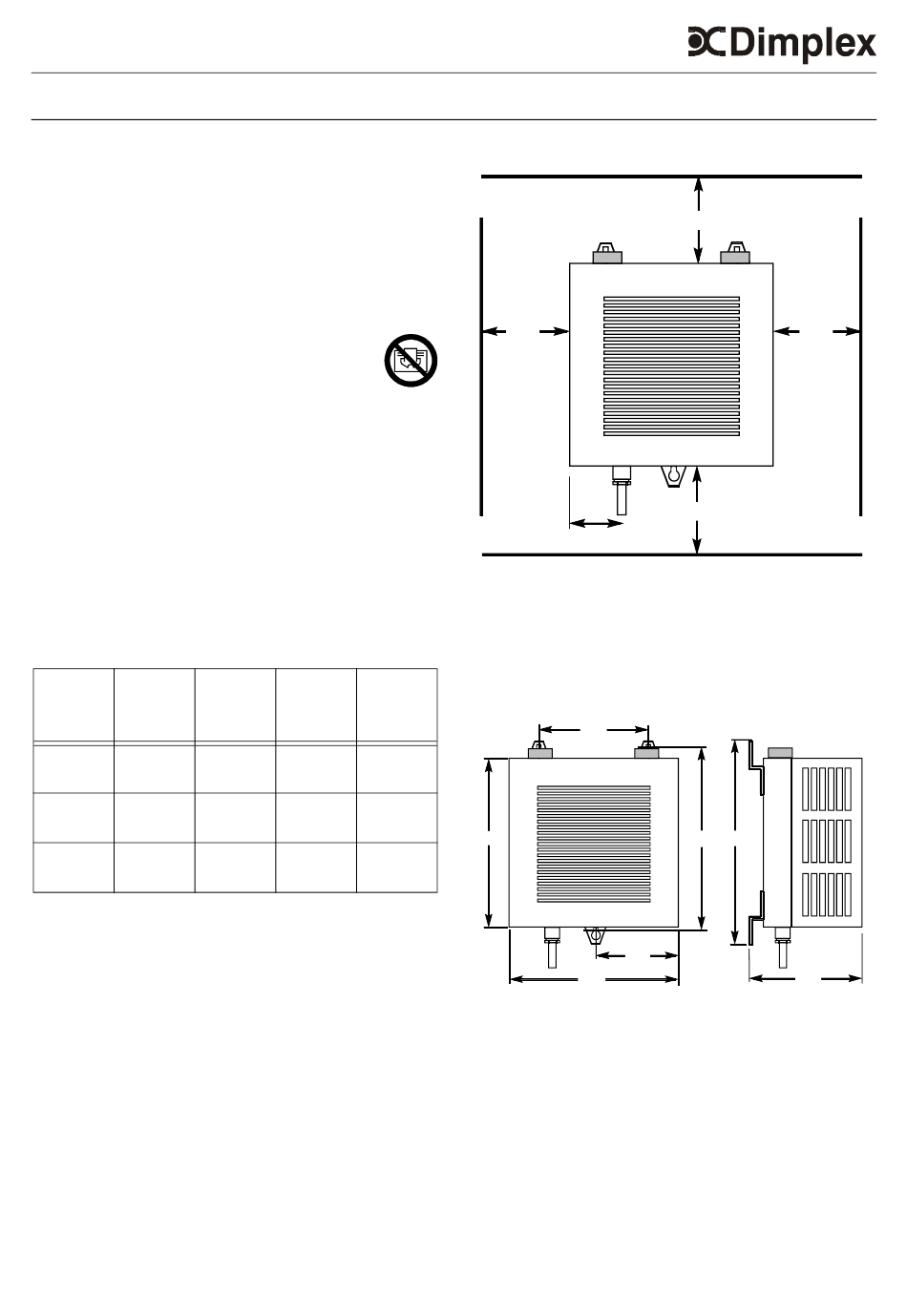

Observe the minimum clearances! Dimensions in mm.
250
Mounting Instructions
- Drill mounting holes for the wall bracket and insert the
dowels.
- Screw the fastening screws into the wall.
- Hang the heating device in the wall bracket and screw into
Plug
place.
yes
230
yes
4. Electrical connection
The voltage and frequency specified on the type plate must
correspond with the present power supply.
If the power cord of this device is damaged, it must be replaced
by the manufacturer or after-sales service, or by a similarly
qualified person, in order to avoid risks.
A separator with at least 3 mm contact opening at each pole
(e.g. circuit breaker) must be provided in the permanently
installed wiring.
Do not operate the heating device through an external
switchgear This could lead to an unwanted reset of the
temperature limiter.
3
250
50
250
160
237 268
115
230
250
160
