Tripp Lite P136-06N-HV-V2 Quick Start Manual

DisplayPort 1.2 to VGA /
HDMI All-in-One Converter

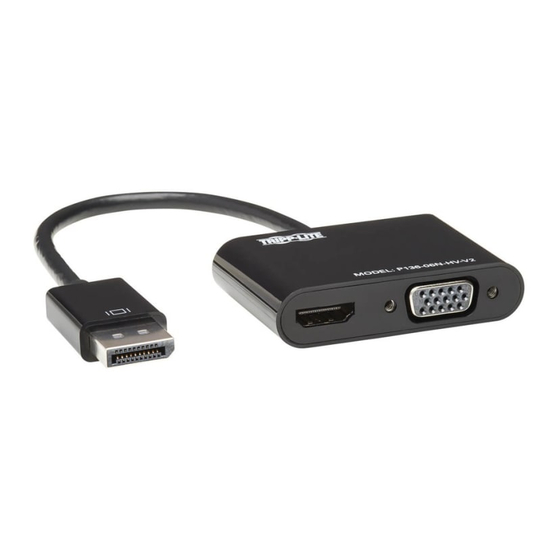

Model: P136-06N-HV-V2
Product Features
• Connect a VGA or HDMI monitor to a DisplayPort or Mini DisplayPort on your laptop, tablet or computer
• All-in-One converter offers maximum flexibility to connect to any available monitor
• Portable design with built-in cable is perfect for travel and stowing in your laptop bag
• HDMI port supports 4K x 2K Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (24Hz or 30Hz)
• VGA port supports video resolutions up to 1920 x 1200, including 1080p
• Supports up to 36-bit Deep Color (12 bits per channel)
• P137-06N-HV-V2W model is compatible with the Thunderbolt port on Mac
MacBook Pro and MacBook Air
• Passive converter requires no external power supply
System Requirements
• Computer or tablet with a DisplayPort or
Mini DisplayPort
Package Includes
• P136-06N-HV-V2 or P137-06N-HV-V2W
Optional Accessories
• P502-006 High Resolution VGA Cable with RGB
Coax – 6 ft.
Installation
Notes:
• Only one monitor can be connected at a time.
• To connect a Mac to an HDMI monitor with audio, go to "System Preferences" and select "Sound". Then click
the "Output" tab and select your HDMI device from the list. Note: DisplayPort or Mini DisplayPort audio is
available on all Mac models introduced after April 2010.
• When connecting an HDMI monitor, the distance between the converter and monitor must be no longer than
6 ft. (2 m). When connecting a VGA monitor, the distance must be no longer than 10 ft. (3 m).
1. Connect the converter to the DisplayPort or Mini DisplayPort on your computer or tablet.
2. Connect a monitor to the VGA or HDMI port on the converter.
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $100 value!
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
16-02-147-933541-EN.indd 1
Quick Start Guide
PROTECT YOUR INVESTMENT!
www.tripplite.com/warranty
Copyright © 2016 Tripp Lite. All rights reserved.
Mini DisplayPort 1.2 to VGA /
HDMI All-in-One Converter
Model: P137-06N-HV-V2W
computers, such as the
®
• Monitor with a VGA or HDMI port
• Quick Start Guide
• P568-006 High Speed HDMI Cable – 6 ft.
2/16/2016 4:23:01 PM
