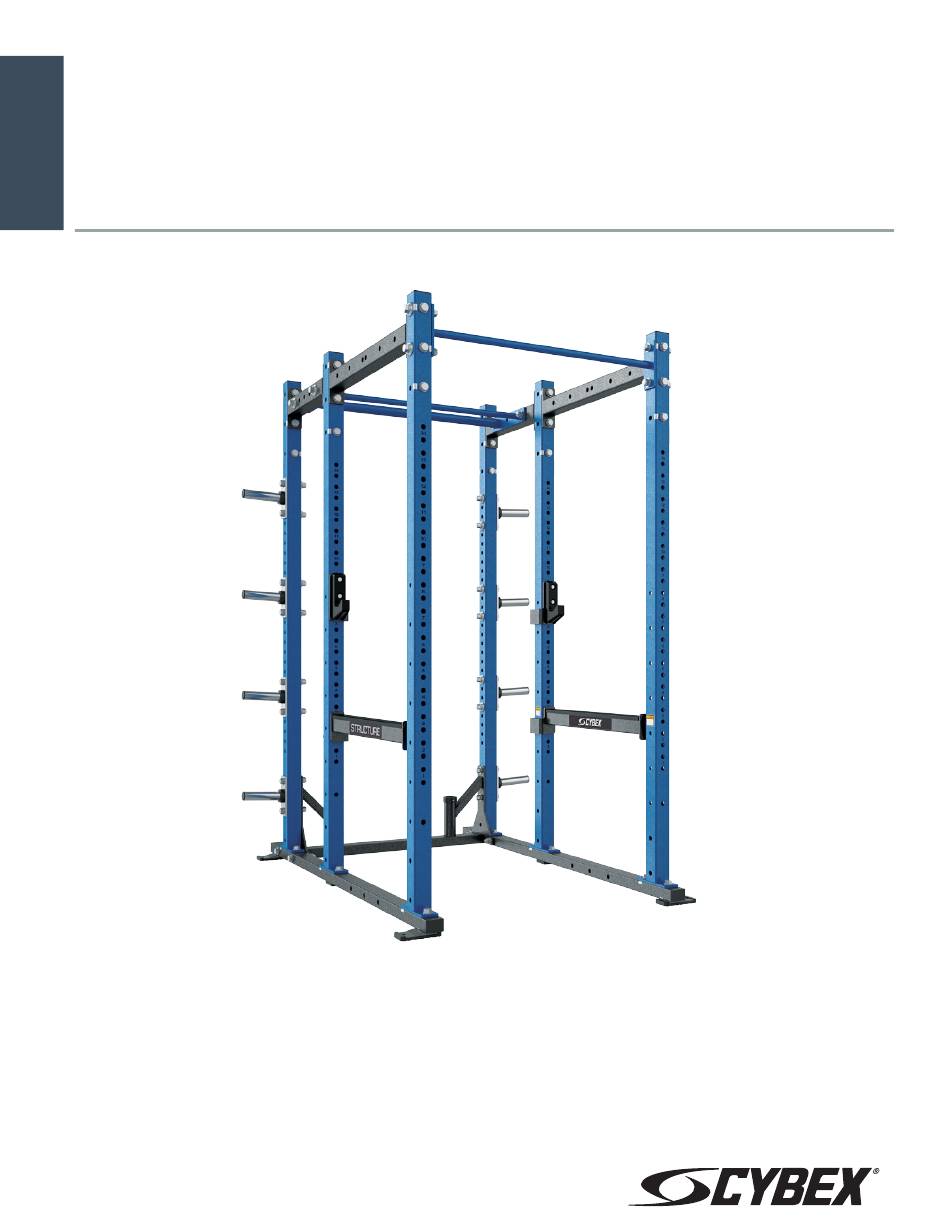

- Page 1 Structure Owner’s and Assembly Manual ST-PR Power Rack, ST-HR/HRC Half Rack/Half Rack Combo, ST-HR Half Rack 1005001-0001 REV AA...
- Page 2 Operation Manuals and other Product Information available at https://www.cybexintl.com عقوملا ىلع ةحاتم زاهجلا نع ىرخأ تامولعمو ليغشتلا ةلدأ https://www.cybexintl.com 操作マニュアルおよびその他の製品情報については、 https://www.cybexintl.com をご覧く ださい。 如需操作手册和其他产品信息，请登录：https://www.cybexintl.com https://www.cybexintl.com 操作手冊和其他產品資訊請見 https://www.cybexintl.com 작동 설명서 및 기타 제품 정보는 에서 찾을 수 있습니다. Trobareu el manual de funcionament i altra informació de producte a https://www.cybexintl.com Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn https://www.cybexintl.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PRODUCT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 SAFETY INFORMATION . -
Page 4: Product Registration
Provide the model and serial number of your Cybex equipment. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. - Page 5 Cybex Owner’s Manual Damaged Parts Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.) Apparent Damage Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier’s agent.
-
Page 6: Safety Information
INSPECTION 1. DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all CYBEX equipment use only replacement parts supplied by CYBEX. - Page 7 1. It is the purchaser’s sole responsibility to properly instruct its end users and supervising personnel as to the proper operating procedures of all CYBEX equipment. 2. Keep children away from strength equipment. Parent or others supervising children must provide close supervision of children if the equipment is used in the presence of children.
-
Page 8: Preventive Maintenance
CYBEX APPROVED CLEANERS (United States availability only) Two preferred cleaners have been approved by CYBEX reliability experts: PureGreen 24 and Gym Wipes. Both cleaners will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial Force formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1. - Page 9 WHO PAYS TRANSPORTATION & INSURANCE FOR SERVICE If the Product or any covered part must be returned to a service facility for repairs, We, CYBEX will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charges after the first year.
- Page 10 1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product and its features and workouts. 2. Locate and write down the serial number of the unit. 3. Contact the nearest CYBEX Customer Support Services group. WARRANTY COVERAGE Warranties outside the United States may vary.
-
Page 11: Label Locations
LABEL LOCATIONS SERIAL NUMBER LABEL Free Standing Storage 9525 WEST BRYN MAWR AVE. ROSEMONT, IL 60018 USA 1-508-533-5183 www.cybexintl.com. Class: S Studio el: XXXXXX ufactured in USA with US and Foreign parts Max. User Wt. Max. Training Wt......S/N: XXXXXXXXX XXXXXXX...... -
Page 12: Squat Height Label
LABEL LOCATIONS (CONTINUED) SQUAT HEIGHT LABEL Half Rack Half Rack/Half Rack Power Rack Combo STRAP TRAINING LABEL Half Rack Half Rack/Half Rack Power Rack Combo... -
Page 13: Maximum Capacity Label
LABEL LOCATIONS (CONTINUED) MAXIMUM CAPACITY LABEL Half Rack WING REQUIRED BOLT TO FLOOR LABEL Half Rack Half Rack/Half Rack Power Rack Combo... -
Page 14: Power Rack Flexible Bar Catches Label
LABEL LOCATIONS (CONTINUED) POWER RACK FLEXIBLE BAR CATCHES LABEL Power Rack Power Rack 680LB MAX LABEL (DUMBBELL TRAY & KETTLEBALL TRAY ONLY) 1485LB MAX LABEL (2-PIPE ONLY) -
Page 15: Free Standing Storage Specifications
FREE STANDING STORAGE SPECIFICATIONS MAXIMUM CAPACITY • Kettlebell Tray: 680 LB (310 KG) • Dumbbell Tray: 680 LB (310 KG) • 2-Pipe: 1485 LB (675 KG) FRAME CONSTRUCTION • Frames are made from 11 gauge steel. PRODUCT WEIGHT (Total Weight = 2x Side Frames + 3 Trays) WEIGHT SIZE 42”... -
Page 16: Rack Specifications
RACK SPECIFICATIONS MAXIMUM USER WEIGHT: 350LB (159KG) MAXIMUM TRAINING WEIGHT • HALF RACK (secured to floor): 495LB (225KG) / (unsecured): 315LB (142.9KG) • HALF RACK/HALF RACK COMBO: 495LB (225KG) • POWER RACK: 675LB ( 306KG) FRAME CONSTRUCTION • Frames are made from 11 gauge steel. PRODUCT WEIGHTS •... -
Page 17: Assembly Instructions
ASSEMBLY INSTRUCTIONS HARDWARE ITEM NO. DESCRIPTION 3/4-10 x 5” Hex Head Screw 3/4-10 x 1-1/4” Hex Head Screw 3/4” Flat Washer 2.25 OD x 3/8” Spacer 3/4-10 Nylock Nut 3/4”-10 Hammer Lock Nut 1/2-13 x 1-1/4” Hex Head Screw 1/2” Flat Washer 1/2”-13 Hammer Lock Nut Forged Hammer Strength Foot 3”... -
Page 18: Half Rack
HALF RACK... - Page 19 ITEM QTY 20-25 FT-LBS (27-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 20 ITEM QTY 20” (50.8cm) 20” (50.8cm) 20” (50.8cm) 22-25 FT-LBS (30-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 21 ITEM QTY 22-25 FT-LBS (30-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 22 ITEM QTY 22-25 FT-LBS (30-34Nm) ITEM QTY 45-50 FT-LBS (61-68Nm)
-
Page 24: Half Rack/Half Rack Combo
HALF RACK/HALF RACK COMBO... - Page 25 ITEM QTY 20-25 FT-LBS (27-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 26 ITEM QTY 20” (50.8cm) 20” (50.8cm) 22-25 FT-LBS (30-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 27 ITEM QTY 22-25 FT-LBS (30-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 28 ITEM QTY 22-25 FT-LBS (30-34Nm) ITEM QTY 45-50 FT-LBS (61-68Nm)
-
Page 30: Power Rack
POWER RACK... - Page 31 ITEM QTY 20-25 FT-LBS (27-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 32 ITEM QTY 20” (50.8cm) 20” (50.8cm) 20” (50.8cm) 22-25 FT-LBS (30-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 33 ITEM QTY 22-25 FT-LBS (30-34Nm) ITEM QTY 22-25 FT-LBS (30-34Nm)
- Page 34 ITEM QTY 22-25 FT-LBS (30-34Nm) ITEM QTY 45-50 FT-LBS (61-68Nm)
-
Page 36: Free Standing Storage
FREE STANDING STORAGE ITEM QTY 4 3 1 45-50 FT-LBS (61-68Nm) OPTIONAL 2-PIPE BUMPER PLATE DIVIDERS... -
Page 37: Accessories Assembly Instructions
ACCESSORIES ASSEMBLY INSTRUCTIONS RACK CONNECTORS Pull Up ITEM QTY Tray ITEM QTY 45-50 FT-LBS (61-68Nm) -
Page 38: Power Pivot
POWER PIVOT ITEM QTY 45-50 FT-LBS (54-67Nm) BAND PEGS... -
Page 39: Rack Bumper Plate Storage
RACK BUMPER PLATE STORAGE ITEM QTY 2.5 LB (1.1 kg) 5 LB (2.3 kg) 10 LB (4.5 kg) 45 LB (20.4 kg) 25 LB (11.3 kg) 45-50 FT-LBS (54-67Nm) -
Page 40: Wing
WING WARNING DO NOT USE equipment if not properly secured to floor. Manufacturer REQUIRES that this equipment be secured to the floor to stabilize and eliminate rocking or tipping over. Use a licensed contractor. ITEM QTY 20-25 FT-LBS (27-34Nm) ITEM QTY 45-50 FT-LBS (61-68Nm) -
Page 41: Power Rack Flexible Bar Catches
POWER RACK FLEXIBLE BAR CATCH HARDWARE FLEXIBLE BAR CATCHES ITEM NO. QTY. DESCRIPTION 1/2-13 x 5” Hex Head Screw 3/4 OD x 3.8” Spacer 1/2” Flat Washer 1/2-13 Nylock Nut ITEM QTY 20-25 FT-LBS (27-34Nm)
