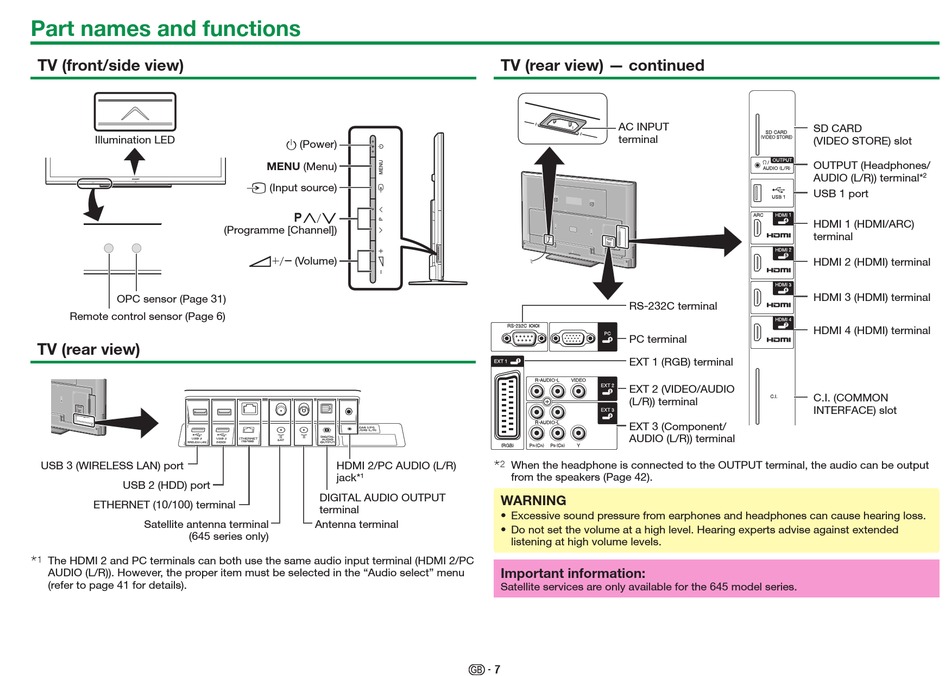

Part names and functions

TV (front/side view)

Illumination LED
OPC sensor (Page 31)
Remote control sensor (Page 6)

TV (rear view)

USB 3 (WIRELESS LAN) port
USB 2 (HDD) port
ETHERNET (10/100) terminal
Satellite antenna terminal
(645 series only)
I The HDMI 2 and PC terminals can both use the same audio input terminal (HDMI 2/PC
AUDIO (L/R)). However, the proper item must be selected in the "Audio select" menu
(refer to page 41 for details).
a (Power)
MENU (Menu)
b (Input source)
:r/s
(Programme [Channel])
i+/- (Volume)
HDMI 2/PC AUDIO (L/R)
jack*
1
DIGITAL AUDIO OUTPUT
terminal
Antenna terminal
TV (rear view) — continued
AC INPUT
terminal
RS-232C terminal
PC terminal
EXT 1 (RGB) terminal
EXT 2 (VIDEO/AUDIO
(L/R)) terminal
EXT 3 (Component/
AUDIO (L/R)) terminal
J When the headphone is connected to the OUTPUT terminal, the audio can be output
from the speakers (Page 42).
WARNING
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Do not set the volume at a high level. Hearing experts advise against extended
listening at high volume levels.
Important information:
Satellite services are only available for the 645 model series.
7
SD CARD
(VIDEO STORE) slot
OUTPUT (Headphones/
AUDIO (L/R)) terminal* 2
USB 1 port
HDMI 1 (HDMI/ARC)
terminal
HDMI 2 (HDMI) terminal
HDMI 3 (HDMI) terminal
HDMI 4 (HDMI) terminal
C.I. (COMMON
INTERFACE) slot
