Air shutter adjustment

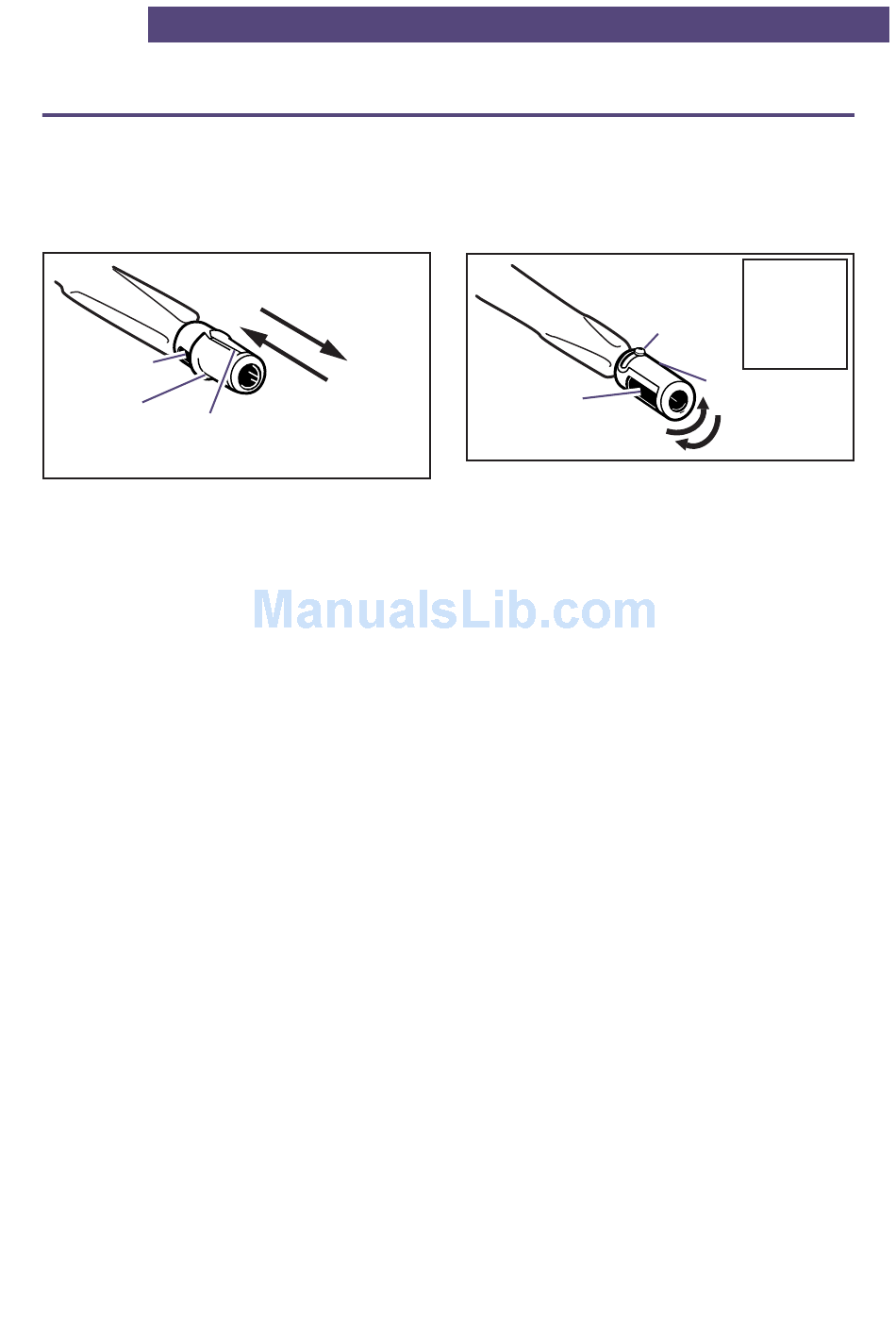

To adjust grill burner air
shutters or surface burner air
shutters
Air opening
Air shutter
Insert screwdriver blade in slot
and twist with slight pressure to
allow air shutter to slide easily.
The left air shutter controls the rear half of
the grill burner. The right shutter controls the
front half.
Slide the air shutter backward or forward to
increase or decrease the size of the air
opening. Air shutters fit snugly on the grill
burner, so you may need a screwdriver
blade to make the adjustment. Notice how
the flame changes as you move the air
shutter. The adjustment is satisfactory when
you get a clearly defined, even blue flame at
the HI flame setting. The snug fit of the air
shutter will allow it to remain positioned
correctly.
On any burner, closing the air shutter too
far will cause the flame to become soft and
yellow tipped. Opening the air shutter too
wide will cause the flame to blow away from
the burner ports. Proper adjustment will
produce a sharp, clearly defined, even
blue flame.
G E T T ING TO KN O W YO U R CO O KTOP
To open
To close
To adjust surface burner air
shutter (on some models)
Air opening
To open
Loosen the fastening screw with a phillips
screwdriver and rotate the air shutter to
increase or decrease the size of the air
opening. As you turn the shutter notice how
the flame changes. The adjustment is
satisfactory when you get a clearly defined,
even blue flame at the HI flame setting. After
the adjustment, tighten the screw.
Rotate air
shutter on
mixer head
Screw
to make air
adjustment
Air shutter
To close
