Whirlpool SC8720ED Installation Instructions Manual

Whirlpool SC8720ED Installation Instructions Manual

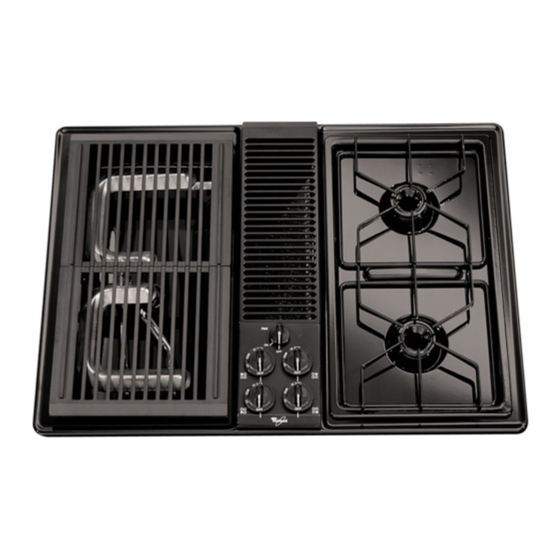

30" gas downdraft cooktop
Hide thumbs Also See for SC8720ED:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Care Manual
Installation Instructions
30"
GAS
Downdraft Cooktop
Modules selected at time of purchase.
IMPORTANT:
Read and save these instructions.
Quick Reference

Table of Contents:

Pages
Need assistance?
Check your Use and Care Guide for a toll-free number to call, or
call the dealer from whom you purchased the cooktop when you:
The dealer is listed in the Yellow Pages of your phone directory
under "Appliances - Household - Major - Service and Repair."
When you call, you will need:
Both numbers are listed on the model/serial rating plate, located
on the bottom of the right side of the downdraft plenum.
Write both numbers down now before installing cooktop.
Model #
Part No. 209811A
4381590
1
1
1
2
2
2
2
3
3
4
5
6
7
Back cover
Wiring diagram
Back cover
Have questions about the cooktop installation or operation.
Need to obtain the name and number of an authorized service
company.
The cooktop model number.
The cooktop serial number.
IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future reference.
Save Installation Instructions for local electrical inspector's use.
Serial #

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool SC8720ED

Summary of Contents for Whirlpool SC8720ED

  • Page 1: Table Of Contents

    Installation Instructions 30" Downdraft Cooktop Modules selected at time of purchase. IMPORTANT: Read and save these instructions. Quick Reference Table of Contents: Pages Back cover Back cover Need assistance? Check your Use and Care Guide for a toll-free number to call, or call the dealer from whom you purchased the cooktop when you: Have questions about the cooktop installation or operation.

  • Page 2: Before You Start

    If cabinets are already installed above the cooktop, install a range hood to the bottom of the cabinet to prevent reaching over a heated cooking surface. The range hood should stick out a minimum of 5 inches (12.7 cm) from the front of the cabinets.

  • Page 3: Product Dimensions

    Product dimensions 29-7/8" (75.9 cm) width Blower can be swiveled 90°. 3-5/16" 15-5/8" (8.4 cm) (39.7 cm) burner box blower depth housing depth (35.6 cm) Electrical requirements WARNING Electrical Shock Hazard Electrical ground is required on this appliance. Do Not ground to a gas pipe. Do Not change the power supply cord plug.

  • Page 4: Gas Supply Requirements

    The equivalent duct length (not actual) determines whether blower is set at the “Low” or “High” range. The blower is set at the “Low” range setting at the factory. The blower housing must be rotated or swiveled to the proper angle needed for your installation.

  • Page 5: Venting Methods

    Determine range blower setting. This cooktop is equipped with a dual range blower. It is factory set at “Low” range to be used for equivalent duct length runs of 30 feet (9.1m) or shorter. If the equivalent duct length exceeds 30 feet (9.1m), the blower must be shifted to “High”...

  • Page 6: 6 Installation Steps

    Check equivalent duct length to determine if blower should be set at “Low” or “High” range (see chart on page 4 to determine equivalent duct system length). If duct system length is greater than 30 feet (9.1m), shift the blower range setting from “Low”...

  • Page 7: Check Operation

    Check operation Plug the power supply cord into the grounded outlet. flow tester air intake flow tester edge of line on flow tester front of cooktop Check for proper venting: • Check that the air filter is in place. • Align the dotted line labeled for “cooktop models”...

  • Page 8: Gas Conversions

    Gas conversions left rear burner left front burner Orifice hoods: Natural — Green, drill size #55 (orifice dia. 0.052") L.P. — Zinc, drill size #66 (orifice dia. 0.033") Gas conversions (from Natural gas to L.P. gas; or from L.P. gas to Natural gas) must be done by a qualified installer.

  • Page 9: Cooktop Removal

    Cooktop removal If removing the cooktop is necessary for cleaning or maintenance: 1. Shut off gas supply. 2. Disconnect gas and electrical supplies. 3. Disconnect vent duct system from unit inside cabinet. 4. Lift cooktop out of countertop to complete cleaning or maintenance.
