The transfer roller is one of the items in the maintenance kit. Replace it when the printer
displays the 80 Scheduled Maintenance message.
Removing the old transfer roller
1
Turn the printer off.
2
If the envelope feeder is attached to the printer, remove it. See
optional envelope
3

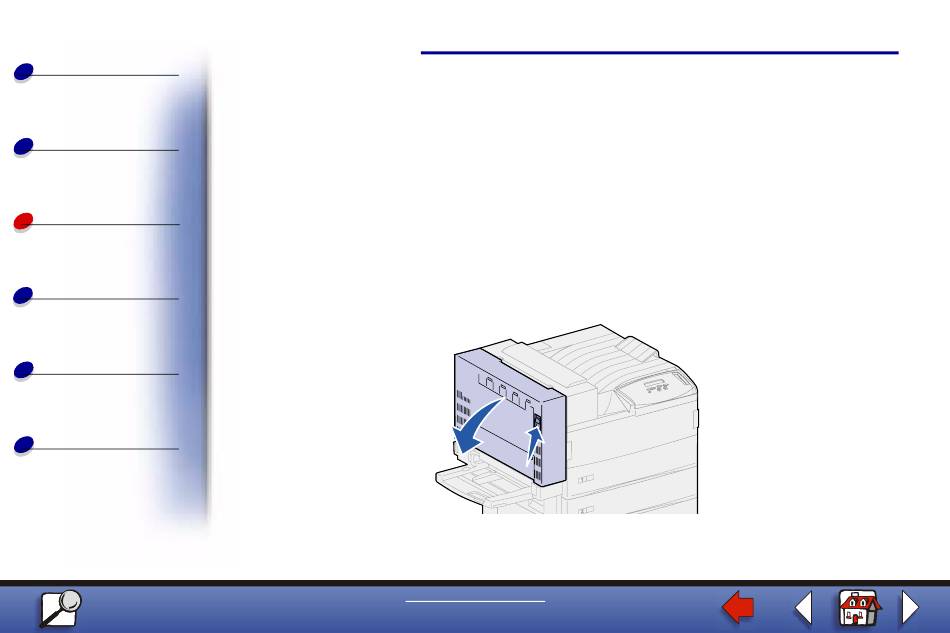

If the duplex unit is attached to the printer, open the duplex unit door (Door E).
a
Push up on the latch to release the door.
b
Gently lower the door to the open position.
www.lexmark.com

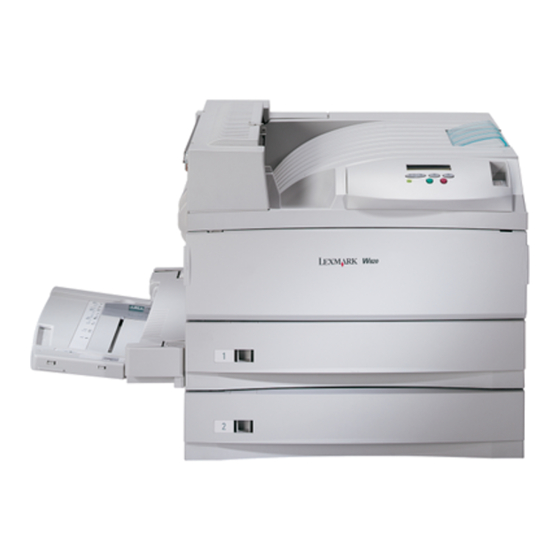

Lexmark W820
Replacing the transfer roller
feeder.
1
Removing the

Advertisement

loading

Related Manuals for Lexmark W820

Summary of Contents for Lexmark W820

  • Page 1 If the duplex unit is attached to the printer, open the duplex unit door (Door E). Troubleshooting Push up on the latch to release the door. Administration Index Gently lower the door to the open position. www.lexmark.com Lexmark W820...
  • Page 2 Replacing the transfer roller Printing Pull up on the handle to open the printer side door (Door A). Gently lower the door to the open position. Paper handling Maintenance Troubleshooting Administration Index www.lexmark.com Lexmark W820...
  • Page 3 Replacing the transfer roller Printing Grasp the green tabs on each end of the transfer roller, and then pull forward to release them. Paper handling Maintenance Troubleshooting Administration Index www.lexmark.com Lexmark W820...
  • Page 4 Replacing the transfer roller Printing Rotate the tabs toward the printer. Paper handling Maintenance Troubleshooting Administration Index www.lexmark.com Lexmark W820...
  • Page 5 Replacing the transfer roller Printing While holding the tabs, pull straight up to remove the transfer roller. Paper handling Maintenance Troubleshooting Administration Dispose of the old transfer roller. Index www.lexmark.com Lexmark W820...

  • Page 6: Installing The New Transfer Roller

    Hold the transfer roller, and rotate the tabs in the direction as shown. Note: To help in the orientation of the transfer roller, notice that the tabs are not Maintenance the same shape or size. Troubleshooting Administration Index www.lexmark.com Lexmark W820...
  • Page 7 Align the steel bars on the transfer roller with the grooves in the printer. Push firmly on each end of the transfer roller until the bars snap into the grooves. Paper handling Steel bar Groove Maintenance Troubleshooting Administration Index www.lexmark.com Lexmark W820...
  • Page 8 Close the duplex unit door (Door E). Index Reinstall the envelope feeder, if necessary. See Reinstalling the envelope feeder. If you have already replaced all the items listed in the following note, you may turn the printer on. www.lexmark.com Lexmark W820...
  • Page 9 Replacing the transfer roller Printing Note: Make sure you also follow the instructions in Replacing the fuser, Replacing pick rollers, Cleaning the wiper blade, and Resetting the maintenance page counter. Paper handling Maintenance Troubleshooting Administration Index www.lexmark.com Lexmark W820...
