POST INSTALLATION CHECKS

Perform the following post installation checks to verify
installation integrity on GMLN5075 and GMLN5371 Vehicular
Charger Kits:

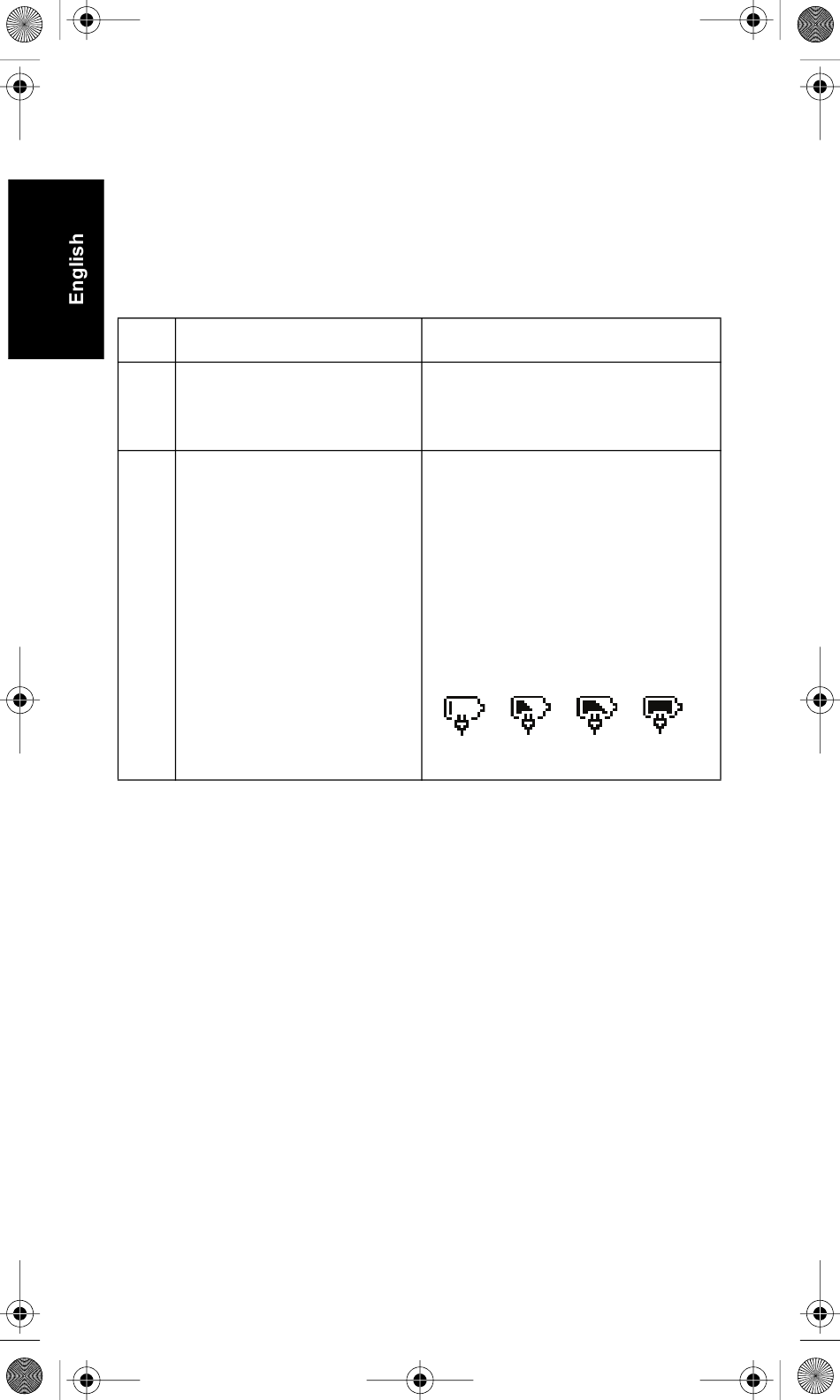

Table 1: Post Installation Checks
No. Procedure
1 Insert the TETRA
Handportable Terminal
into the cradle.
2 Turn ignition key to ON.
The GMLN5371 battery charging status can be determined by
LED status indicators (refer to Table 2).
Expected Result
Connection established and
charging begins.
The TETRA Handportable
Terminal displays the "Charger
Connected" message only if
the TETRA Handportable
Terminal is ON when
connecting to the vehicular
Charger/Holder. If the TETRA
Handportable Terminal is OFF,
the display shows an icon of the
battery in charging mode.
Battery Charge Progress
10
