Sealey SX500 Quick Manual

thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
instruction
manual
1. SAFetY
ensure the torque multiplier is in sound condition and good working order.
9
take action for immediate repair or replacement of damaged parts.
9
Keep the torque multiplier clean for best and safest performance.
9
locate the torque multiplier in a suitable work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
ensure the work area has adequate lighting.
9
the vehicle to be worked on should be on level and solid ground only, preferably concrete.
9
Place wedges under wheels of vehicle.
9
ensure that the vehicle's engine is switched off.
9
ensure the vehicle handbrake is applied and 1st gear engaged.
9
check that there is a minimum of 0.5m between the vehicle and static objects such as doors, walls, etc. to allow for vehicle tilting when
9
jacked up.
ensure all non-essential persons keep a safe distance whilst the vehicle is jacked up.
9
ensure there is no one in the vehicle that is to be jacked up.
9
▲ DAnGer: Do not support the vehicle on a jack; use suitably rated axle stands under the vehicle before proceeding with wheel
removal/replacement.
Do not allow untrained persons to operate the torque multiplier.
8
Do not work under the vehicle until axle stands have been positioned correctly.
8
Do not use the torque multiplier for any purpose other than that for which it is intended.
8
store torque multiplier in a dry, childproof area when not in use.
9
2. introDuction

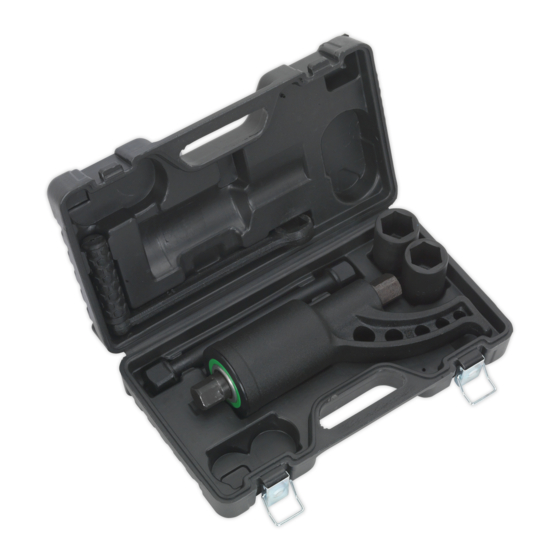

ideal for removing/installing wheel nuts on commercial and light commercial vehicles when air impact wrench is not easily accessible. supplied
in carry case with two impact sockets and 210mm extension.
3. SpeciFicAtion
model no: ............................................................... sX500.V2
output drive: ....................................................... 1"sq. (male)
ratio: .............................................................................. 65:1
maximum rated output: .............................................6200nm
socket sizes: .......................................................... 32, 33mm
fig.1
© Jack sealey limited
instructions for
torque multiplier wheel nut wrench 65:1
SX500.V2
model no:
Original Language Version sX500.V2 | issue 1 28/02/17
