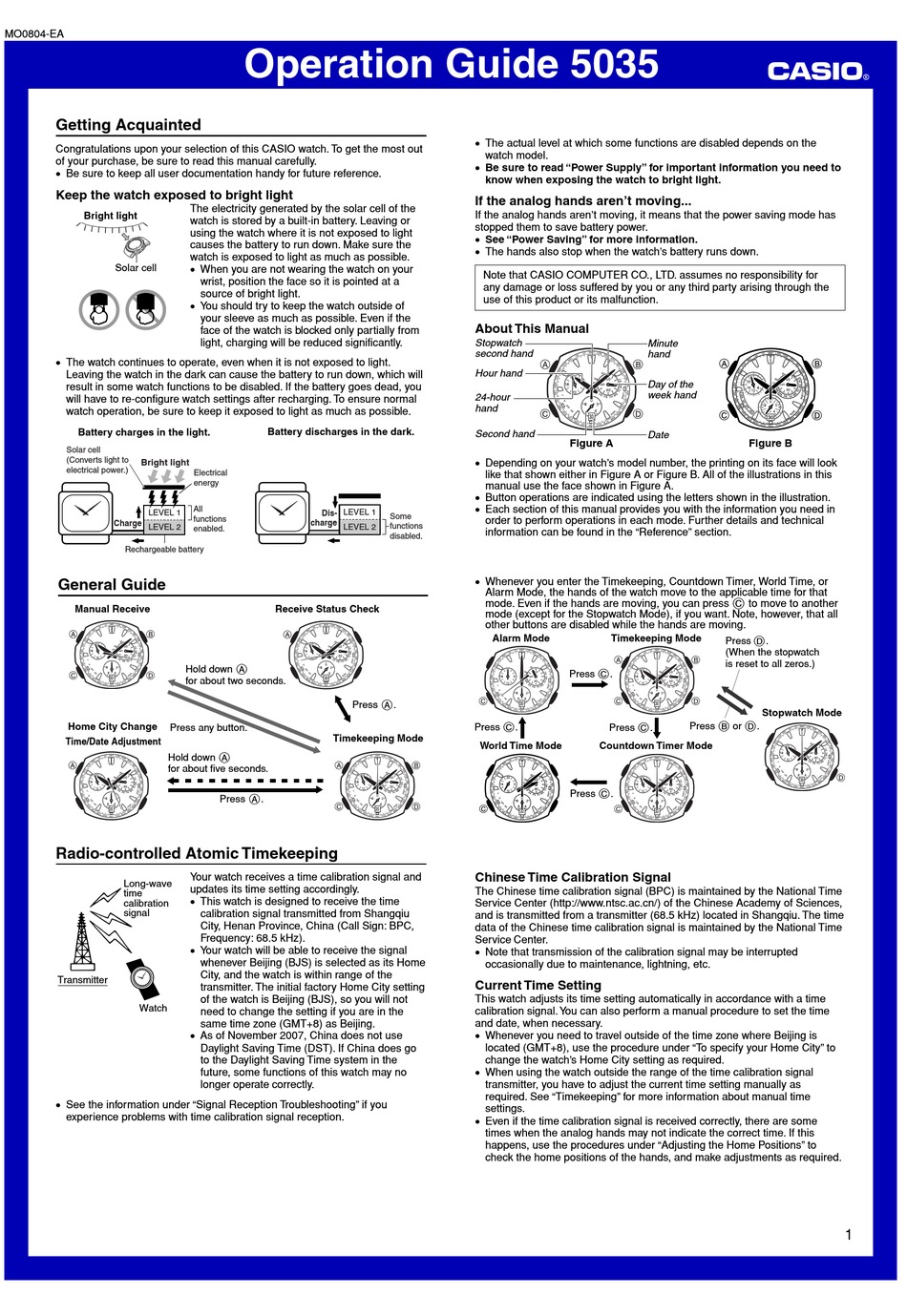

Casio 5035 Operation Manual

MO0804-EA
Getting Acquainted
Congratulations upon your selection of this CASIO watch. To get the most out
of your purchase, be sure to read this manual carefully.
• Be sure to keep all user documentation handy for future reference.
Keep the watch exposed to bright light
Bright light
Solar cell
• The watch continues to operate, even when it is not exposed to light.
Leaving the watch in the dark can cause the battery to run down, which will
result in some watch functions to be disabled. If the battery goes dead, you
will have to re-configure watch settings after recharging. To ensure normal
watch operation, be sure to keep it exposed to light as much as possible.
Battery charges in the light.
Solar cell
(Converts light to
Bright light
electrical power.)
LEVEL 1
Charge
LEVEL 2
Rechargeable battery
General Guide
Manual Receive
Home City Change
Press any button.
Time/Date Adjustment
Hold down A
for about five seconds.
Radio-controlled Atomic Timekeeping
Long-wave
time
calibration
signal
Transmitter
Watch
• See the information under "Signal Reception Troubleshooting" if you
experience problems with time calibration signal reception.
Operation Guide 5035
The electricity generated by the solar cell of the
watch is stored by a built-in battery. Leaving or
using the watch where it is not exposed to light
causes the battery to run down. Make sure the
watch is exposed to light as much as possible.
• When you are not wearing the watch on your
wrist, position the face so it is pointed at a
source of bright light.
• You should try to keep the watch outside of
your sleeve as much as possible. Even if the
face of the watch is blocked only partially from
light, charging will be reduced significantly.
Battery discharges in the dark.
Electrical
energy
All
Dis- LEVEL 1
functions
charge
LEVEL 2
enabled.
Receive Status Check
Hold down A
for about two seconds.
Press A.
Timekeeping Mode
Press A.
Your watch receives a time calibration signal and
updates its time setting accordingly.
• This watch is designed to receive the time
calibration signal transmitted from Shangqiu
City, Henan Province, China (Call Sign: BPC,
Frequency: 68.5 kHz).
• Your watch will be able to receive the signal
whenever Beijing (BJS) is selected as its Home
City, and the watch is within range of the
transmitter. The initial factory Home City setting
of the watch is Beijing (BJS), so you will not
need to change the setting if you are in the
same time zone (GMT+8) as Beijing.
• As of November 2007, China does not use
Daylight Saving Time (DST). If China does go
to the Daylight Saving Time system in the
future, some functions of this watch may no
longer operate correctly.
• The actual level at which some functions are disabled depends on the
watch model.
• Be sure to read "Power Supply" for important information you need to
know when exposing the watch to bright light.
If the analog hands aren't moving...
If the analog hands aren't moving, it means that the power saving mode has
stopped them to save battery power.
• See "Power Saving" for more information.
• The hands also stop when the watch's battery runs down.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for
any damage or loss suffered by you or any third party arising through the
use of this product or its malfunction.
About This Manual
Stopwatch
second hand
Hour hand
24-hour
hand
Second hand

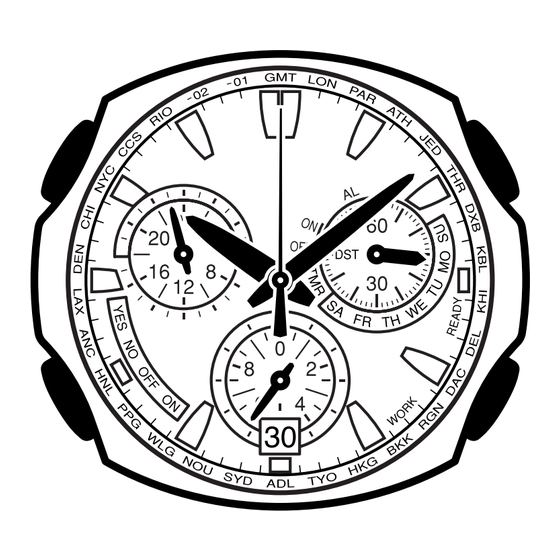

• Depending on your watch's model number, the printing on its face will look
like that shown either in Figure A or Figure B. All of the illustrations in this
manual use the face shown in Figure A.
• Button operations are indicated using the letters shown in the illustration.
• Each section of this manual provides you with the information you need in
Some
order to perform operations in each mode. Further details and technical
functions
information can be found in the "Reference" section.
disabled.
• Whenever you enter the Timekeeping, Countdown Timer, World Time, or
Alarm Mode, the hands of the watch move to the applicable time for that
mode. Even if the hands are moving, you can press C to move to another
mode (except for the Stopwatch Mode), if you want. Note, however, that all
other buttons are disabled while the hands are moving.
Alarm Mode
Press C.
World Time Mode
Chinese Time Calibration Signal
The Chinese time calibration signal (BPC) is maintained by the National Time
Service Center (http://www.ntsc.ac.cn/) of the Chinese Academy of Sciences,
and is transmitted from a transmitter (68.5 kHz) located in Shangqiu. The time
data of the Chinese time calibration signal is maintained by the National Time
Service Center.
• Note that transmission of the calibration signal may be interrupted
occasionally due to maintenance, lightning, etc.
Current Time Setting
This watch adjusts its time setting automatically in accordance with a time
calibration signal. You can also perform a manual procedure to set the time
and date, when necessary.
• Whenever you need to travel outside of the time zone where Beijing is
located (GMT+8), use the procedure under "To specify your Home City" to
change the watch's Home City setting as required.
• When using the watch outside the range of the time calibration signal
transmitter, you have to adjust the current time setting manually as
required. See "Timekeeping" for more information about manual time
settings.
• Even if the time calibration signal is received correctly, there are some
times when the analog hands may not indicate the correct time. If this
happens, use the procedures under "Adjusting the Home Positions" to
check the home positions of the hands, and make adjustments as required.
Minute
hand
Day of the
week hand
Date
Figure A
Timekeeping Mode
Press D.
(When the stopwatch
is reset to all zeros.)
Press C.
Press B or D.
Press C.
Countdown Timer Mode
Press C.
Figure B
Stopwatch Mode
1
