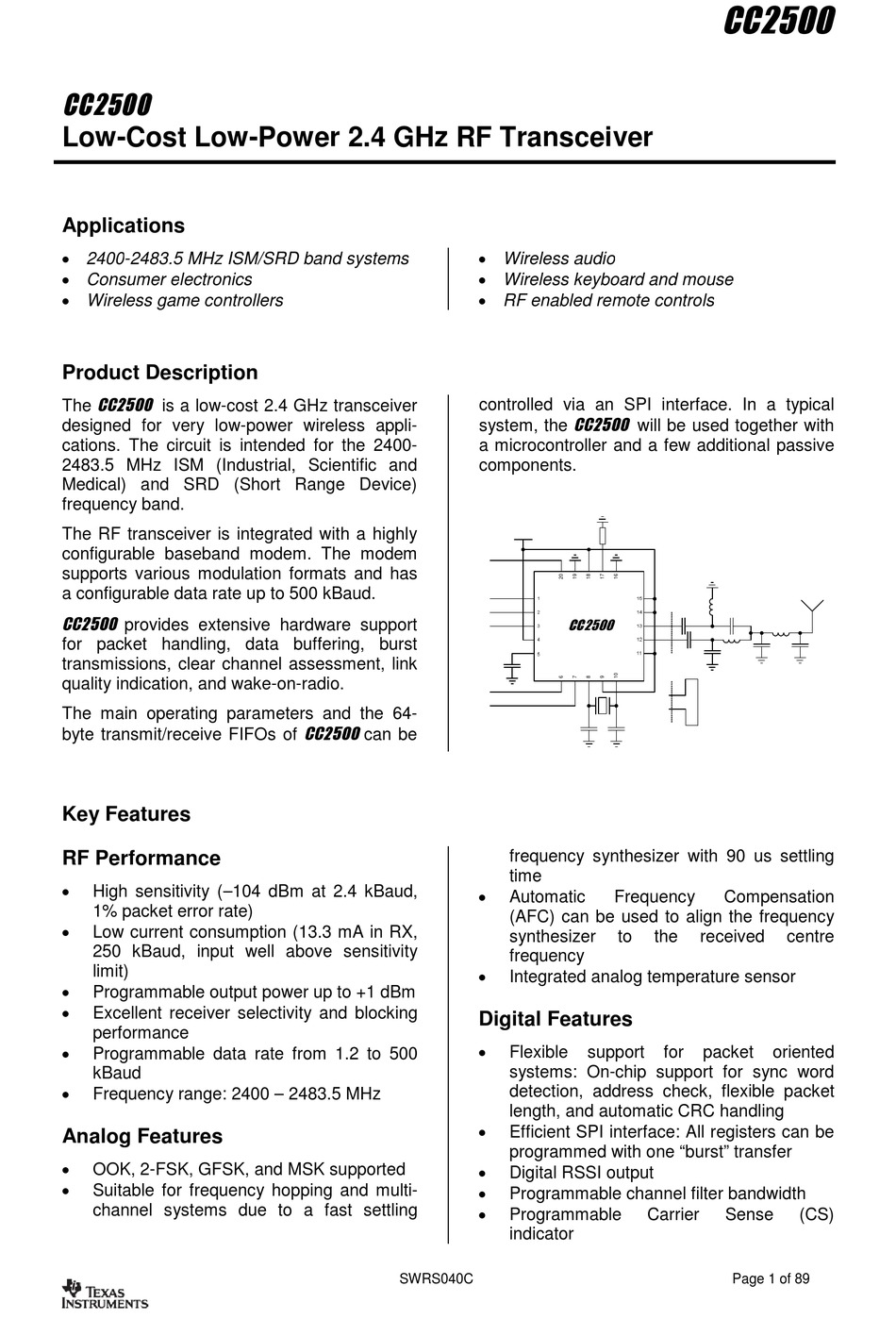

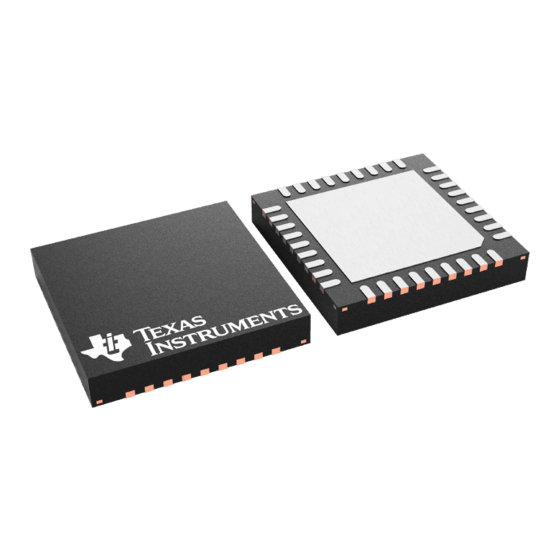

CC2500
Low-Cost Low-Power 2.4 GHz RF Transceiver

Applications

 2400-2483.5 MHz ISM/SRD band systems
 Consumer electronics
 Wireless game controllers

Product Description

The CC2500 is a low-cost 2.4 GHz transceiver
designed for very low-power wireless appli-
cations. The circuit is intended for the 2400-
2483.5 MHz ISM (Industrial, Scientific and
Medical) and SRD (Short Range Device)
frequency band.
The RF transceiver is integrated with a highly
configurable baseband modem. The modem
supports various modulation formats and has
a configurable data rate up to 500 kBaud.
CC2500 provides extensive hardware support
for packet handling, data buffering, burst
transmissions, clear channel assessment, link
quality indication, and wake-on-radio.
The main operating parameters and the 64-
byte transmit/receive FIFOs of CC2500 can be

Key Features

RF Performance

High sensitivity (–104 dBm at 2.4 kBaud,
1% packet error rate)
Low current consumption (13.3 mA in RX,
250 kBaud, input well above sensitivity
limit)
Programmable output power up to +1 dBm
Excellent receiver selectivity and blocking
performance
Programmable data rate from 1.2 to 500
kBaud
Frequency range: 2400 – 2483.5 MHz

Analog Features

OOK, 2-FSK, GFSK, and MSK supported
Suitable for frequency hopping and multi-
channel systems due to a fast settling
 Wireless audio
 Wireless keyboard and mouse
 RF enabled remote controls
controlled via an SPI interface. In a typical
system, the CC2500 will be used together with
a microcontroller and a few additional passive
components.
frequency synthesizer with 90 us settling
time
Automatic
(AFC) can be used to align the frequency
synthesizer
frequency
Integrated analog temperature sensor

Digital Features

Flexible
systems: On-chip support for sync word
detection, address check, flexible packet
length, and automatic CRC handling
Efficient SPI interface: All registers can be
programmed with one "burst" transfer
Digital RSSI output
Programmable channel filter bandwidth
Programmable
indicator
SWRS040C
CC2500
Frequency
Compensation
to
the
received
support
for
packet
Carrier
Sense
Page 1 of 89
centre
oriented
(CS)
