Summary of Contents for Samsung NS026NHXEA
-
Page 2: Table Of Contents
This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC), and the Electromagnetic Compatibility Directive (2004/108/EEC) of the European Union. (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. -
Page 3: Safety Precautions
Register your product at www.samsung.com/global/register Safety Precautions The following safety precautions are provided to protect the users’ safety and prevent property damage. Make sure to read the followings and use the air conditioner properly. Keep this user’s manual together with the installation manual in a handy place so that you can find it whenever you need to see it after reading this manual thoroughly. - Page 4 WARNING URING PERATION Do not attempt to repair, move, modify or reinstall the unit on your own. Make sure that these installations are carried out by qualified personnel to avoid electric shock or fire. Do not place any obstacles in ...
- Page 5 WARNING ISPOSING THE Before throwing out the When you need to dispose of device, it is necessary to pull the unit, consult your dealer. back the battery cells and get If pipes are removed rid of them safely for recycling incorrectly, refrigerant may reasons.
- Page 6 CAUTION EGARDING OWER Disconnect the circuit breaker when you don’t use the air conditioner for a long time to save energy. URING PERATION Do not open the front grille during operation. Do not use the air conditioner for a long time in a closed room or in a place where there’s a baby or an old person.
- Page 7 CAUTION URING PERATION Do not touch the pipes Do not use the air conditioner connected to the air to maintain the machine, food, conditioner. pet, plant or cosmetics. THERS Be sure that the air filter not to ...
-
Page 8: Name Of Each Part

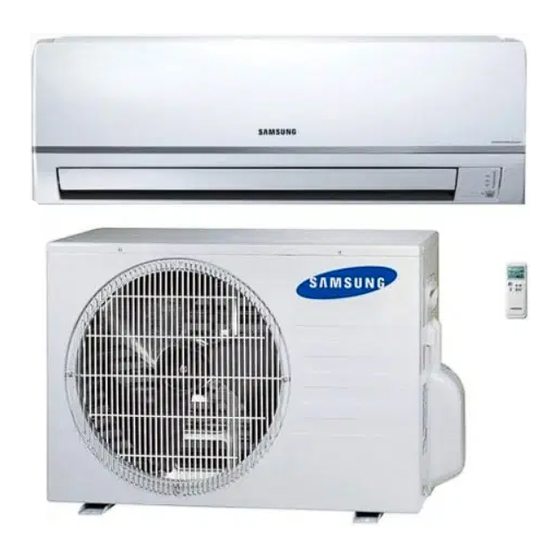

Name of Each Part The design and shape can be changed according to the model. Indoor Unit Air filter (under the grille) Operation indicator (GREEN) Timer indicator (GREEN) Deice indicator Power(On/Off) button Air flow blades (outlet) (RED) Air Inlet Temperature sensor Power(On/Off) button... -
Page 9: Outdoor Unit
Outdoor Unit UH026/035EAV1 Air Outlet Outdoor Unit UH052EAV1 Air Outlet Outdoor Unit UH070EAV2/RC071DHXEA Air Inlet (Rear) Air Outlet Air Inlet (Rear) Connection Valve (Inside) Air Inlet (Rear) Connection Valve (Inside) Connection Valve (Inside) -
Page 10: Remote Control-Buttons And Display
Remote Control-Buttons and Display On Timer indicator Off Timer indicator Fan speed indicator Airflow indicator Power (On/Off) button Temperature adjustment buttons On Timer button Off Timer button Operating mode indicator Temperature setting Battery life indicator Remote control transmission indicator Filter Reset button (Except RAC type) Airflow swing button Fan speed adjustment buttons... -
Page 11: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when: You purchase the air conditioner The remote control does not work correctly Note Use two AAA, LR03 1.5V batteries. Do not use old and new batteries or different kinds of batteries together. -
Page 13: Selecting Auto Mode
Selecting Auto Mode The room temperature and the fan speed are controlled automatically in Auto mode. Press (ON/OFF) button. Result: The air-conditioner will turn on with the mode selected when the unit was last used. Caution The air-conditioner has a built-in protection mechanism to prevent the unit from being damaged when it is started immediately after being: Plugged in ... -
Page 14: Selecting Cool Mode
Selecting Cool Mode Select Cool mode to lower the room temperature. Press (ON/OFF) button. Result: The air-conditioner will turn on with the mode selected when the unit was last used. Caution The air-conditioner has a built-in protection mechanism to prevent the unit from being damaged when it is started immediately after being: Plugged in... -
Page 15: Selecting Heat Mode
Selecting Heat Mode The Heat mode can be select only on the heat pump models. Press (ON/OFF) button. Result: The air-conditioner will turn on with the mode selected when the unit was last used. Caution The air-conditioner has a built-in protection mechanism to prevent the unit from being damaged when it is started immediately after being: Plugged in... -
Page 16: Selecting Dry Mode
Selecting Dry Mode Select Dry mode if the room is too humid. Using this mode will slightly lower the room temperature. Press (ON/OFF) button. Result: The air-conditioner will turn on with the mode selected when the unit was last used. Caution The air-conditioner has a built-in protection mechanism to prevent the unit from being damaged when it is started immediately after being:... -
Page 17: Selecting Fan Mode
Selecting Fan Mode Select Fan mode to circulate air without changing the temperature. Press (ON/OFF) button. Result: The air-conditioner will turn on with the mode selected when the unit was last used. Caution The air-conditioner has a built-in protection mechanism to prevent the unit from being damaged when it is started immediately after being: Plugged in ... -
Page 18: Adjusting The Airflow Direction Vertically
Adjusting the Airflow Direction Vertically The airflow direction can be adjusted up and down. This function provides cold air to even the corner of indoor areas. Press button. Result: The blade moves vertically. To stop moving the blade, press Note To set the required position, press in the required position. -
Page 19: Adjusting The Airflow Direction Horizontally
Adjusting the Airflow Direction Horizontally You can adjust airflow direction horizontally manually. The inner blades with small fins move the air in the desired direction. Adjust the inner blades by moving them left or right. Make sure do not touch the inner blades during operation. It may cause injury on your fingers. -
Page 20: Setting The On Timer
Setting the On Timer The On Timer enables you to turn on the air conditioner automatically at the appointed time within a range of 30 minutes to 24 hours. Press button. Result: is blinking on the remote control display. Press button to set until the desired time is displayed. -
Page 21: Setting The Off Timer
Setting the Off Timer The Off Timer enables you to turn on the air conditioner automatically at the appointed time within a range of 30 minutes to 24 hours. Press button. Result: is blinking on the remote control display. Press button to set until the desired time is displayed. -
Page 22: Operating Your Air Conditioner Without The Remote Control
Operating Your Air Conditioner Without the Remote Control Your air conditioner can be operated directly from the indoor unit if the remote control is lost or broken. To switch the air conditioner on, press the ON/OFF switch on the right side of the indoor unit. -
Page 23: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter. Before cleaning your air conditioner, ensure that you IMPORTANT have switched off the breaker used for the unit. Open the upper front grille by pulling the lower right and left tabs of the grille. -
Page 24: Temperature And Humidity Ranges
Temperature and Humidity Ranges The table below indicates the temperature and humidity ranges the air conditioner can be operated within. Refer to the table for efficient use. MODE OPERATING CONDITIONS Indoor temp: 18°C~32°C Indoor humidity: below 80% COOL Outdoor temp: -10°C~43°C(026/035) Outdoor temp: -15°C~43°C(052/070/071) Indoor temp: below 27°C HEAT... -
Page 25: Solving Common Problems
This air conditioner has an auto-diagnostic function in case a failure will happen. Occurring error, the Lamp is blink. Before contacting customer call center green number, please ask to installer to make a double check of installation unless there’s a full evidence of SAMSUNG product problem. Explanation/Solution mode. -
Page 26: Periodical Checks
Periodical Checks Type Clean the air filter Clean the condensate drain pan (2) Indoor unit Thoroughly clean the heat exchanger (2) Clean the condensate drain pipe (2) Replace the remote control batteries Clean the heat exchanger on the outside of the unit (2) Clean the heat exchanger on the inside of the unit (2) Clean the electric components with jets... -
Page 27: Protections Enabled By The Unit Control System
Protections enabled by the Unit control system Type of protection Description Protection against cold air The internal fan is off Defrost cycle The internal fan is off Anti-frost protection The compressor is off of internal battery The start of the Delayed start of compressor compressor is delayed. - Page 28 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding a Samsung product, contact the SAMSUNG customer care center. Country AUSTRIA BELGIUM CZECH DENMARK FINLAND FRANCE GERMANY HUNGARY ITALIA LUXEMBURG NETHERLANDS NORWAY POLAND PORTUGAL SLOVAKIA SPAIN SWEDEN EIRE...
- Page 29 USER’S MANUAL Commercial-Split Type Series NSNHXEA NSNDXEA Commercial-Split Type Room Air Conditioner (Cooling and Heating) F I P D G DB98-31944A-2...
