Digital Camera/Lens Kit/Double Lens Kit
Model No.
ORDER NO. DSC1411019CE
DMC-GM5KP
DMC-GM5KPC
DMC-GM5KEB
DMC-GM5KEC
DMC-GM5KEE
DMC-GM5KEF
DMC-GM5KEG
DMC-GM5KGC
DMC-GM5KGD
DMC-GM5KGH
DMC-GM5KGN
DMC-GM5LEB
DMC-GM5LEC
DMC-GM5LEE
DMC-GM5LEF
DMC-GM5LEG
DMC-GM5WEC
DMC-GM5WEE
DMC-GM5WEG
© Panasonic Corporation 2014 Unauthorized copy-
ing and distribution is a violation of law.
B26
Advertisement
Table of Contents
Related Manuals for Panasonic Lumix DMC-GM5KP
Summary of Contents for Panasonic Lumix DMC-GM5KP

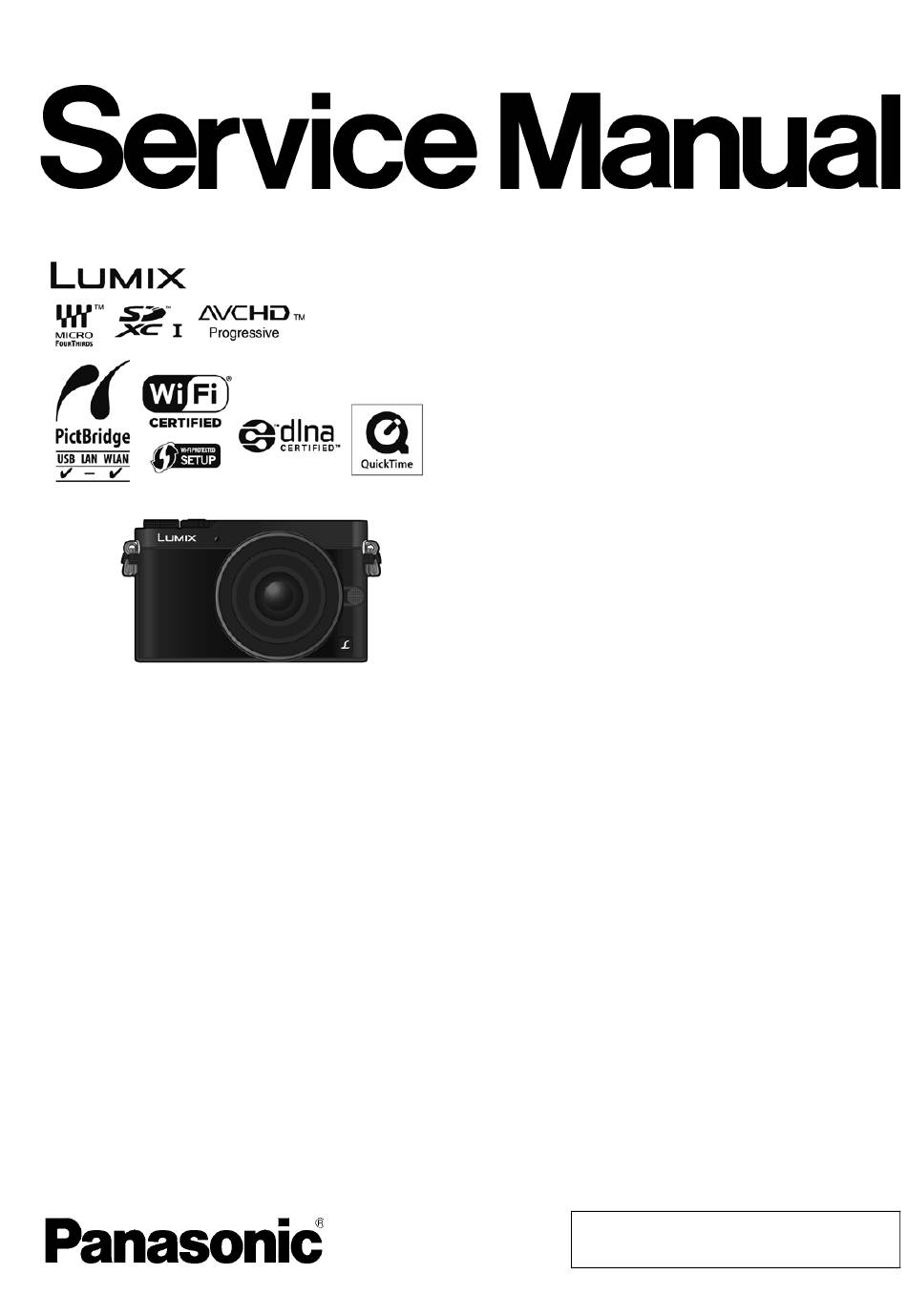

- Page 1 Digital Camera/Lens Kit/Double Lens Kit DMC-GM5KP Model No. DMC-GM5KPC DMC-GM5KEB DMC-GM5KEC DMC-GM5KEE DMC-GM5KEF DMC-GM5KEG DMC-GM5KGC DMC-GM5KGD DMC-GM5KGH DMC-GM5KGN DMC-GM5LEB DMC-GM5LEC DMC-GM5LEE DMC-GM5LEF DMC-GM5LEG DMC-GM5WEC DMC-GM5WEE DMC-GM5WEG © Panasonic Corporation 2014 Unauthorized copy- ing and distribution is a violation of law.
-
Page 2: Table Of Contents
Colour [DMC-GM5K] [DMC-GM5L] (K)...Black Type (K)...Black Type (R)...Red Type [DMC-GM5W] (G)...Green Type (only GC/GN) (K)...Black Type DMC-GM5K series: Interchangeable Lens (H-FS12032) is bundled. DMC-GM5L series: Interchangeable Lens (H-X015) is bundled. DMC-GM5W series: Interchangeable Lens (H-FS12032/H-FS35100) are bundled. TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3... -
Page 3: Safety Precautions
1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check 1. IMPORTANT SAFETY NOTICE (See Figure. 1) There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check. -
Page 4: Warning
2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD). -
Page 5: How To Replace The Lithium Battery
2.3. How to Replace the Lithium Battery 2.3.1. Replacement Procedure 1. Remove the Main P.C.B.. (Refer to Disassembly Procedures.) 2. Unsolder the each soldering point of electric lead terminal for Lithium battery (Ref. No. “B9001” at component side of Main P.C.B.) and remove the Lithium battery together with electric lead terminal. -
Page 6: Caution For Ac Cord (For Eb/Gc
A replacement fuse cover can be purchased from your local 2.4.2.3. How to Replace the Fuse Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety. -
Page 7: Service Navigation
3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2. - Page 8 3.3.1.2. About Main P.C.B. (Ref. 1) & Flash-ROM (IC6003) Important: 1. Before exchanging the “Main P.C.B.”, the performances must be carefully checked, by following the “7.Troubleshooting Guide” section of this service manual. 2. Before replacing the “Main P.C.B. and/or Flash-ROM”, proceed the EEPROM data backup from the unit. After replacing the Main P.C.B.
- Page 9 3.3.2. Lens Unit (Interchangeable Lens: H-FS12032) 3.3.2.1. About Lens Main Unit (Ref. 203) 1. Lens Main Unit (Ref. 203) is not supplied due to difficulty of the transportation issue (Fragile, Dust-free packing), and requires critical lens adjustments. Therefore, any needs of the “Lens Main Unit” (Ref. 203), carefully confirm its performance in advance. 2.
- Page 10 3.3.3. Lens Unit (Interchangeable Lens: H-X015) 3.3.3.1. About Lens Main Unit (Ref. 308) 1. Lens Main Unit (Ref. 308) is not supplied due to difficulty of the transportation issue (Fragile, Dust-free packing), and requires critical lens adjustments. Therefore, any needs of the “Lens Main Unit” (Ref. 308), carefully confirm its performance in advance. 2.
- Page 11 3.3.4. Lens Unit (Interchangeable Lens: H-FS35100) 3.3.4.1. About Lens Main Unit (Ref. 409) 1. Lens Main Unit (Ref. 409) is not supplied due to difficulty of the transportation issue (Fragile, Dust-free packing), and requires critical lens adjustments. Therefore, any needs of the “Lens Main Unit” (Ref. 409), carefully confirm its performance in advance. 2.
-
Page 12: Service Notes
3.4. Service Notes 3.4.1. About Wi-Fi Function The page number in this chapter does not show the page number of this service manual. - Page 13 3.4.2. Important Notice of Servicing This camera unit has the personal information of wireless LAN connection the customer has registered. For the protection of private information, please erase the personal information after the completion of repair by “Initial Settings”. In addition, please print out the following documents, and pass to the customer with the camera unit. Printing Material [Leaflet for Customer] [For The Customer] Before using your camera please check the Wi-Fi settings.
-
Page 14: General Description About Lead Free Solder (Pbf)
3.5. General Description About Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin (Sn), silver (Ag) and copper (Cu), and the melting point of the lead free solder is higher approx.30°C (86°F) more than that of the normal solder. -
Page 15: How To Define The Model Suffix (Ntsc Or Pal Model)
3.6. How to Define the Model Suffix (NTSC or PAL Model) There are seven kinds of DMC-GM5 (Camera body unit), regardless of the colours. • a) DMC-GM5 (Japan domestic model) • b) DMC-GM5P/PC • c) DMC-GM5EB/EC/EF/EG • d) DMC-GM5EE • e) DMC-GM5GN •... - Page 16 3.6.2. Initial Settings: After replacing the Main P.C.B. and/or Flash-ROM, make sure to perform the initial settings after achieving the adjustment by order- ing the following procedure in accordance with model suffix of the unit. 1. Important Notice: Before proceeding Initial settings, make sure to read the following CAUTION. 2.
- Page 17 • Step 4. Display the Initial Settings: While pressing [ MENU/SET ] button and “[ RIGHT ] of Cursor buttons” simultaneously, turn the power off. The “Initial Settings” menu is displayed. There are two kinds of “Initial Settings” menu form as follows: [ CASE 1.
- Page 18 • Step 5. Choose the Model Suffix in “Initial Settings”: (Refer to “CAUTION”) [Caution: After replacing the Main P.C.B. and/or Flash-ROM] The model suffix can been chosen, JUST ONE TIME. Once one of the model suffix have been chosen, the model suffix lists will not be displayed, thus, it can not be changed. Therefore, select the area carefully.
-
Page 19: Specifications
4 Specifications 4.1. Camera Body The following specification is based on DMC-GM5KEB/GM5LEB. Some specifications may differ depending on model suffix. -
Page 23: Lens
4.2. Lens... -
Page 24: Location Of Controls And Components
5 Location of Controls and Components The following description is for DMC-GM5KEB/GM5LEB. Some descriptions may differ depending on model suffix. The page number in this chapter does not show the page number of this service manual. 5.1. Camera Body... -
Page 26: Lens
