SyncMaster 305T/305TPLUS

Advertisement

Table of Contents
loading

Related Manuals for Samsung SyncMaster 305TPLUS

Summary of Contents for Samsung SyncMaster 305TPLUS

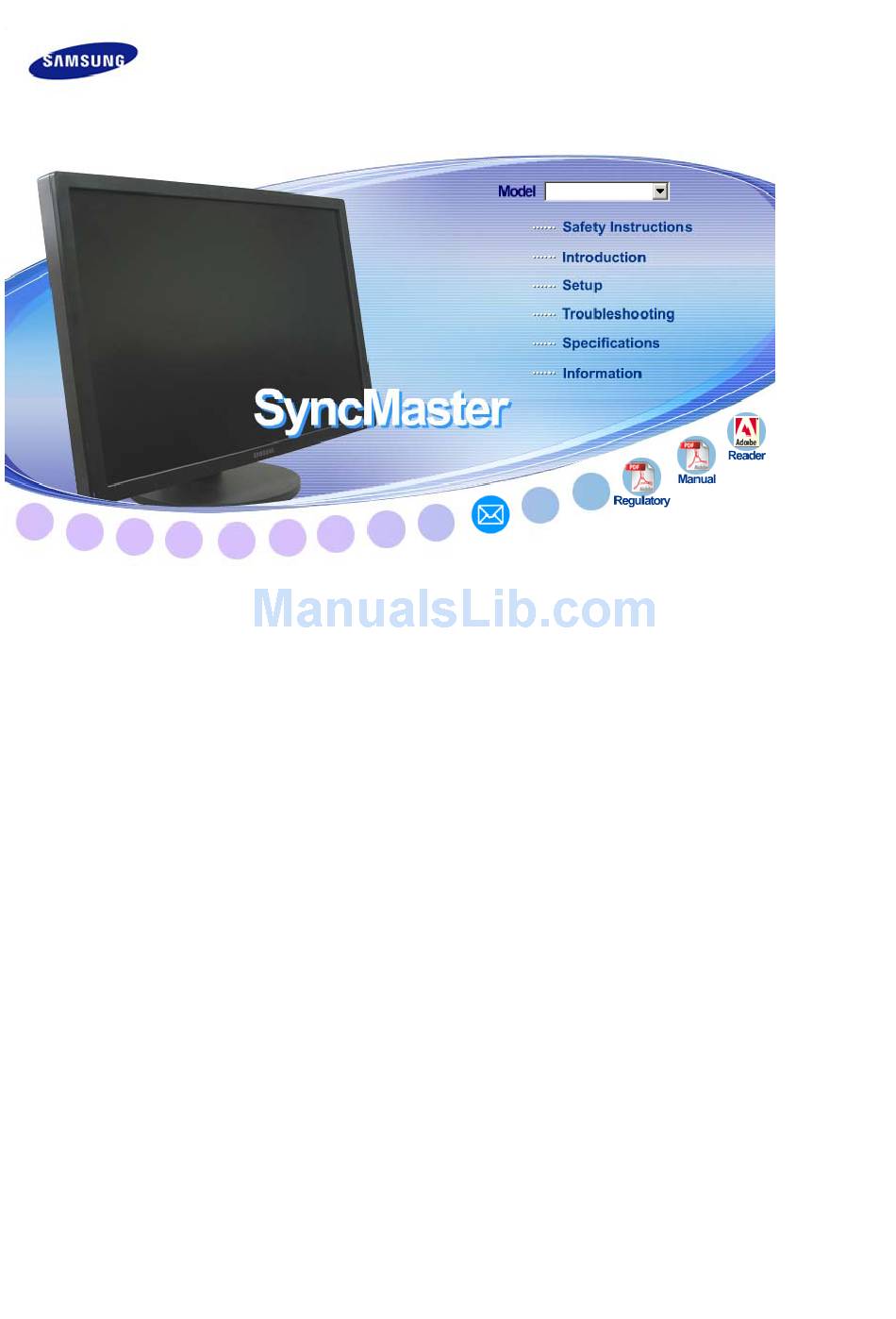

  • Page 1 SyncMaster 305T/305TPLUS...
  • Page 2 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment. Prohibited Do not disassemble Do not touch Power When not used for extended period of time, set your computer to DPM. If using a screen saver, set it to active screen mode.
  • Page 3 Do not use a damaged or loose plug. This may cause electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause electric shock or fire. Use only a properly grounded plug and receptacle. An improper ground may cause electric shock or equipment damage.

  • Page 4: Installation

    operable. This may cause electric shock or fire. Installation Be sure to contact location with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it operates for 24 hours such as at airports, train stations etc. Failure to do so may cause serious damage to your monitor.
  • Page 5 Keep any heating devices away from the power cable. A melted coating may cause electric shock or fire. Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc. Any increase in internal temperature may cause fire. Put down the monitor carefully.
  • Page 6 Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. Contact the SAMSUNG customer interior cleaning once a year. Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause a malfunction or fire.
  • Page 7 unusual sound or smell coming from the monitor - unplug it immediately contact an authorized dealer or Service This may cause electric shock or fire. Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle. This may cause a malfunction, electric shock or fire.
  • Page 8 Never insert anything metallic into the monitor openings. This may cause electric shock, fire or injury. wire and tools or inflammable objects such as paper or matches into the vent, headphone port or AV ports or etc. This may cause electric shock or fire. If an alien substances or water enters the product, turn the product off, unplug the power connector from the wall outlet and contact a When viewing a fixed screen for an extended period of time, residual...
  • Page 9 Dropping the product may cause a malfunction or injury to the person carrying it. Place the product out of children's reach, as they could damage by hanging onto it. A falling product may cause injury to the person or even fatality. When not using the product for an extended period of time, keep the product unplugged.
  • Page 10 Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Manual Warranty Card Quick Setup Guide (Not available in all User's Guide locations) Cable...
  • Page 11 DVI-D (Dual link) Cable Sold separately USB Cable (A-B Type cable) Front Brightness button [ ] Push the button to adjust brightness. ▼ : The screen is getting dark. ▲ : The screen is getting bright. Turns the monitor on/off. Power button [ ] / The blue light is on in its normal working condition and blinks / Power indicator...

  • Page 12: Kensington Lock

    (The configuration at the back of the monitor may vary from product to product.) Connect the device with the USB cable. Connect the computer with the USB cable. DVI IN Connect the DVI-D (Dual link) Cable to the DVI IN port on the back of your monitor.
  • Page 13 Stand Stopper Remove the fixing pin on the stand to lift the monitor up and down. Connecting the Monitor for further information regarding cable connections.

  • Page 14: Connecting The Monitor

    Connecting the Monitor Connect the power cord for your monitor to the POWER port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Using the DVI (Digital) connector on the video card. Connect the DVI-D (Dual link) Cable to the DVI IN Port on the back of your Monitor.
  • Page 15 Data Rate 480 Mbps Power Consumption (Max., each port) Connect the UP port of the monitor and the USB port of the computer with the USB cable. To use DOWN port, you have to connect the UP (Upstream Cable) to the PC. Make sure to use the USB cable supplied with this monitor to connect the monitor's UP port and your computer's USB port.

  • Page 16: Using The Stand

    When connecting a device to the device using a cable appropriate to the device. (For the purchase of the cable and external devices, ask the service center of the corresponding product.) The company is not liable for problems or damages to an external device caused by using an unauthorized cable for the connection.
  • Page 17 Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non- specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 18 10 cm away from the wall surface. Contact the nearest Samsung Service Center for more information. Samsung Electronics will not be responsible for damages caused by using a base other than those specified.
  • Page 19 Check List Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom Check List No images on the Is the power cord connected screen.
  • Page 20 LED is blinking but no Is the frequency properly images on the screen. adjusted when checking the Display Timing on the menu? There are only 16 Have the Windows colors colors shown on the been set properly? screen. The screen colors have changed after Has the video card been set changing the video...
  • Page 21 General General Model Name SyncMaster 305T/305TPLUS LCD Panel Size 30" inch Wide (75 cm) Display area 641.28(H) x 400.8(V) Pixel Pitch 0.2505(H) x 0.2505(V) Synchronization Horizontal 49.3 kHz, 98.7 kHz +/- 2 kHz Vertical 60 Hz +/- 2 Hz Display Color 8 bit color (16.7 M) Resolution Optimum resolution...

  • Page 22: Environmental Considerations

    Humidity : 5 % ~ 95 %, non-condensing Power saving EPA/ENERGY mode (Power button) Blue, Blinking Less than 2 Less than 1 watts watts ® Partner, SAMSUNG has determined that this Power off Power off 2000 (Power Switch) Black Black 0 watts ® compliant and ENERGY2000 ®...

  • Page 23: Vertical Frequency

    Preset Timing Modes If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. Horizontal Display Mode Frequency...
  • Page 24 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A 1-800-SAMSUNG (726-7864) CANADA 1-800-SAMSUNG (726-7864) MEXICO 01-800-SAMSUNG (726-7864) ARGENTINE 0800-333-3733 0800-124-421 BRAZIL 4004-0000 CHILE 800-SAMSUNG(726-7864) COLOMBIA 01-8000112112 COSTA RICA...

  • Page 25: Czech Republic

    BELGIUM 0032 (0)2 201 24 18 CZECH REPUBLIC 844 000 844 DENMARK 70 70 19 70 FINLAND 030-6227 515 3260 SAMSUNG(726-7864) FRANCE 08 25 08 65 65(€ 0,15/Min) GERMANY 01805 - 121213 (€ 0,14/Min) HUNGARY 06-80-SAMSUNG (726-7864) ITALIA 800-SAMSUNG (726-7864)
  • Page 26 3698-4698 3030 8282 INDIA 1800 110011 INDONESIA 0800-112-8888 JAPAN 0120-327-527 MALAYSIA 1800-88-9999 NEW ZEALAND 0800SAMSUNG (726-7864) PHILIPPINES 1800-10-SAMSUNG (726-7864) SINGAPORE 1800-SAMSUNG (726-7864) 1800-29-3232 THAILAND 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 SOUTH AFRICA 0860-SAMSUNG (726-7864) TURKEY 444 77 11 800-SAMSUNG (726-7864) U.A.E...
  • Page 27 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

  • Page 28: Product Information (Image Retention Free)

    PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
  • Page 29 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.

  • Page 30: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
