Summary of Contents for Samsung DVD-HD870

  • Page 1: Dvd Player

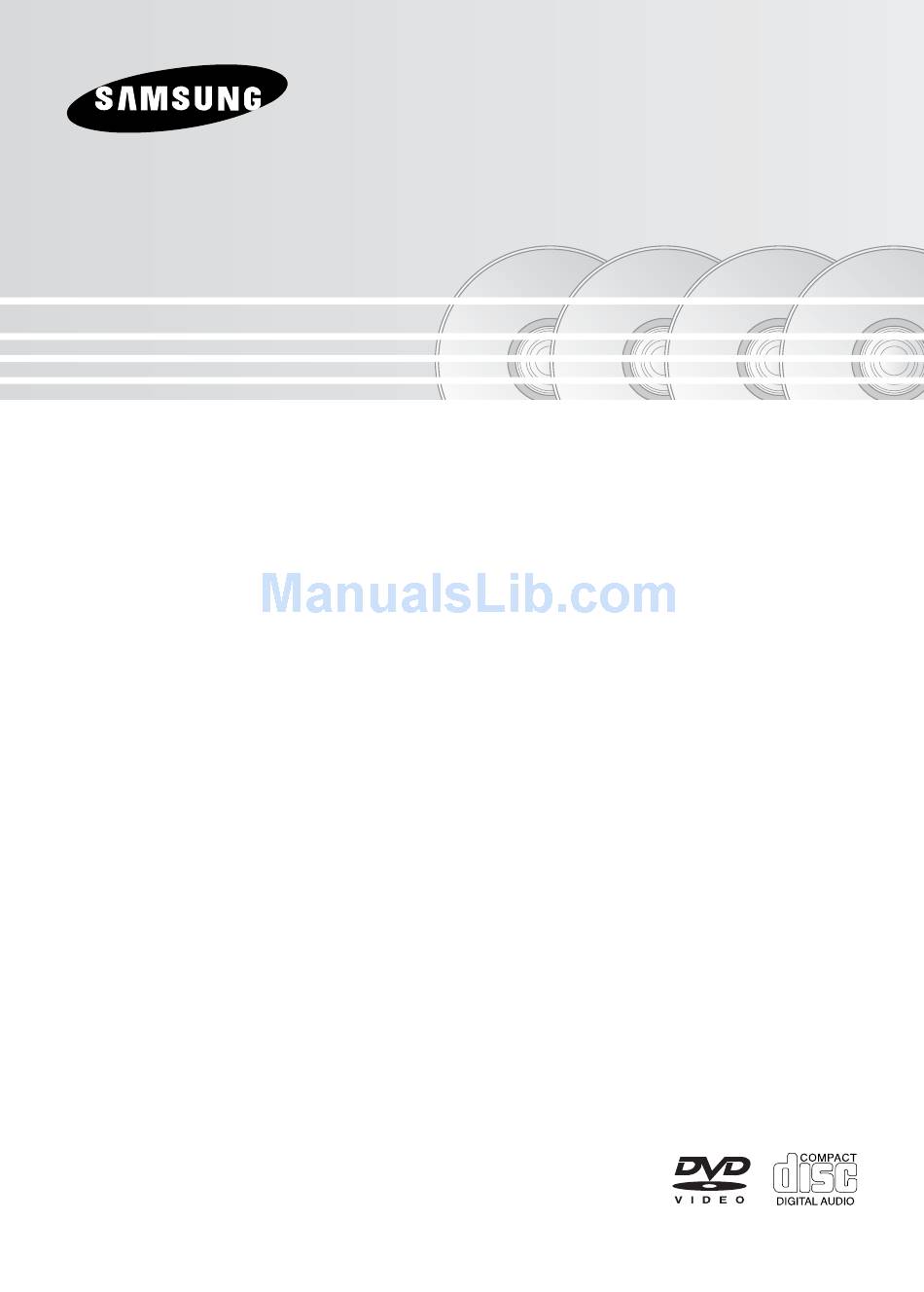

    DVD Player DVD-HD870 www.samsung.com/uk...

  • Page 2: Precautions

    - Before connecting other components to this player, be sure to turn them off. - Be sure to remove the disc and turn off the player after use, especially if you are not going to use it for a long time.

  • Page 3: Table Of Contents

    Repeat Play ......18 Slow Play ....... 19...

  • Page 4: Setup

    TV's screen size (16:9 or 4:3). Digital Photo Viewer (JPEG) You can view Digital Photos on your TV. Repeat You can repeat a song or movie simply by pressing the REPEAT button. MP3/WMA This unit can play discs created from MP3/WMA files.

  • Page 5: Disc Type And Characteristics

    Disc Type and Characteristics This DVD player is capable of playing the following types of discs with the corresponding logos: Recording Types Disc Types (Logos) Audio Video AUDIO-CD Audio Disc Markings Play Region Number PAL broadcast system in U.K, France, Germany, etc.

  • Page 6: Description

    STANDBY/ON ( When STANDBY/ON is pressed on, the indicator goes out and the player is turned on. STANDBY Indicator When the unit is first plugged in, the indicator lights. DISC TRAY Place the disc here. OPEN/CLOSE ( Press to open and close the disc tray.

  • Page 7: Rear Panel

    TV’s menu system. - The HDMI output of this unit can be connected to a DVI jack on a TV or other device using a conver- sion adapter. In this case, it is necessary to use a TV or display with an HDCP-compatible DVI input.

  • Page 8: Tour Of The Remote Control

    This button functions as a toggle switch. 10. EZ VIEW Button The aspect ratio of a picture can easily be adjusted according to the screen size of your TV (16:9 or 4:3). 11. DISC MENU Button Brings up the Disc menu.

  • Page 9: Connections

    - If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) terminal of the DVD player. - If you press the VIDEO SEL. button when DVD Player is in stop mode or no disc is inserted, the Video Output mode changes in the following sequence: (COMPOSITE/S-Video ➝I-SCAN ➝ P-SCAN ➝ SCART RGB) - Please do not connect Scart and Component Video (Y, Pb, Pr) output simultaneously, as they may inter- fere and degrade both video output quality.

  • Page 10: Connection To A Tv (S-Video)

    Output mode. (See page 9) Note - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 14 to 15) - The number and position of terminals can vary depending on the TV set.

  • Page 11: Connection To A Tv (Interlace)

    - If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 14 to 15) - The component terminal of TV can be marked by “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “P depending on the manufacturer.
  • Page 12 Output mode. (See page 9) To see the progressive video output, - Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive You need a TV set supporting the progressive scan Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s input function.

  • Page 13: Connecting To A Tv With Dvi Jack

    - Please refer to the user's manual of your TV. - If HDMI or HDMI-DVI cable is plugged into TV, the DVD player’s output is set to HDMI/DVI within 10 seconds. - If you set the HDMI output resolution 720p or 1080i, HDMI output provides better picture quality.

  • Page 14: Connection To An Audio System (2 Channel Amplifier)

    DVD player. Note - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. - Please set the audio in the menu screen according to the Amplifier. (See pages 27) - The position of terminals can vary depending on the Amplifier.
  • Page 15 Note - When you connect the DVD player to DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu. If it is set to Off, sound doesn't come out or there will be a big noise.

  • Page 16: Basic Functions

    1. Press the OPEN/CLOSE ( ) button. The STANDBY indicator light goes out and the tray opens. 2. Place a disc gently into the tray with the disc’s label facing 3. Press the PLAY/PAUSE ( ) button or OPEN/ CLOSE ) button to close the disc tray.

  • Page 17: Using The Search And Skip Functions

    Using the Search and Skip Functions During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection. Searching through a Chapter or Track During play, press the SEARCH ( remote control for more than 1 second.

  • Page 18: Using The Disc And Title Menu

    Using the Disc and Title Menu Using the Disc Menu 1. During the playback of a DVD disc, press the MENU button on the remote control. 2. Press the buttons to select Disc Menu, then press the or ENTER button.

  • Page 19: Slow Play

    (Depending on a type of disc, the black bars may not disappear completely.) - ZOOM FIT The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarge For 4:3 aspect ratio discs - Normal Wide Displays the content of the DVD title in 16:9 aspect ratio.

  • Page 20: Selecting The Audio Language

    - 4:3 Pan Scan The left and right portions of the screen are cut off and the central portion of the 16:9 screen is displayed. - SCREEN FIT The top and bottom portions of the screen are cut off and a full screen appears.

  • Page 21: Changing The Camera Angle

    - Depending on a disc, the Bookmark function may not work. Recalling a Marked Scene 1~3. The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 21. 4. Press the ¦/‹ buttons to select a marked scene.

  • Page 22: Using The Zoom Function

    - To select the Parent Folder Press the RETURN button to go to parent folder, or press the œ œ /ƒ ƒ buttons to select “..” and press ENTER to go to the parent folder. - To select the Peer Folder Press the œ...

  • Page 23: Mp3/Wma/Cd Audio Playback

    1. Open the disc tray. Place the disc on the tray. Close the tray. 2. Press the œ œ /ƒ ƒ or ¦ ¦ /‹ ‹ buttons to select an avi file (DivX/XiviD) and then press ENTER button. Repeat playback Press the REPEAT button to change playback mode.

  • Page 24: Picture Cd Playback

    Reference page 1. Select the desired folder. 2. Press the œ œ /ƒ ƒ buttons to select a Picture file in the clips menu and then press the ENTER button. 3. Press the INFO button on the remote control to select the menu you want to view and then press the ENTER button.

  • Page 25: Changing Setup Menu

    MP3-JPEG Playback You can play JPEG using music as a backgound. 1. Press the œ œ /ƒ ƒ buttons to select an MP3 file in the clips menu and then press the ENTER button. 2. Press the œ œ /ƒ ƒ buttons to select a JPEG file in the clips menu and then press the ENTER button.

  • Page 26: Setting Up The Language Features

    Using the Player Menu Language 1. With the unit in Stop mode, press the MENU button. 2. Press the œ œ /ƒ ƒ buttons to select Setup, then press the ‹ or ENTER button. 3. Press the œ œ /ƒ ƒ buttons to select Language Setup, then press the ‹...

  • Page 27: Setting Up The Audio Options

    Using the DivX Subtitle Language 1. With the unit in Stop mode, press the MENU button. 2. Press the œ œ /ƒ ƒ buttons to select Setup, then press the ‹ or ENTER button. 3. Press the œ œ /ƒ ƒ buttons to select Language Setup, then press the ‹...
  • Page 28 • If your TV system only has NTSC-Video input, you must choose “NTSC”. • If your TV system only has PAL input, you must choose “PAL ”. • If you set up the PAL TV, HDMI output frame rate is 50 Hz . ‹ ‹ ‹ ‹ ‹ ‹...

  • Page 29: Setting Up The Parental Control

    : 720p Setting Up the Rating Level : RGB-Normal 1. With the unit in Stop mode, press the MENU button. 2. Press the œ œ /ƒ ƒ buttons to select Setup, then press the ‹ or ENTER button. Enter Return Menu 3.

  • Page 30: Changing The Password

    Level 7,8 will not play. Changing the Password 1. With the unit in Stop mode, press the MENU button. 2. Press the œ œ /ƒ ƒ buttons to select Setup, then press the ‹ or ENTER button. Language Setup...

  • Page 31: Reference

    - Character set ISO 9660 - Finalized, single session - Write speed low Upgrade procedure 1. Open the disc tray. Place the disc on the tray. Close the tray. The Firmware upgrade screen appears. Firmware upgrade appears on the display 2.

  • Page 32: Troubleshooting

    2. The DVD’s software doesn’t support the feature (e.g., angles). on screen. 3. The feature is not available at the moment. 4. You’ve requested a title or chapter number or search time that is out of range. Disc Menu doesn’t appear. • Check if the disc has a Menu.

  • Page 33: Specifications

    Output *S/N Ratio *Dynamic Range *Total Harmonic Distortion - Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice. - Weight and dimensions are approximate. AC 110-240V ~ 50/60 Hz 2.3 Kg 430mm (W) X 205mm (D) X 45mm (H) +5°C to +35°C...
  • Page 34 However, Samsung Authorised Dealers and Authorised Service Centres in other EC Countries will comply with the warranty on the terms issued to purchasers in the country concerned. In case of difficulty, details of our Authorised Service Centres are available from: Samsung Electronics U.K.
  • Page 35 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country CANADA North America MEXICO U.S.A ARGENTINE BRAZIL CHILE COSTA RICA ECUADOR EL SALVADOR GUATEMALA Latin America...
  • Page 36 This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
