  • Page 1: Dvd Player

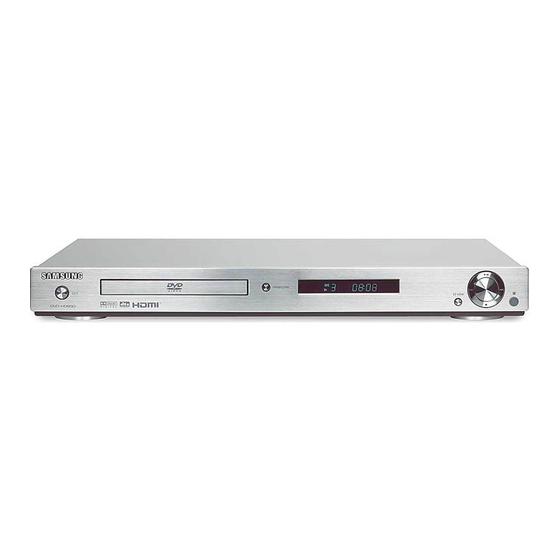

    DVD Player DVD-HD850...

  • Page 2: Important Safety Instructions

    Important Safety Instructions...

  • Page 3: Fcc Note (For U.s.a)

    Precautions RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : CAUTIONS FCC NOTE (for U.S.A): CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1...
  • Page 4 CAUTION Note: Handling Cautions Disc Storage Maintenance of Cabinet...

  • Page 5: Before You Start

    Before you start Accessories Install Batteries in the Remote control If the remote control doesn’t operate properly:...
  • Page 6 Chapter 1: Setup Chapter 2: Connections Chapter 3: Basic Functions Chapter 4: Advanced Functions Chapter 5: Changing Setup Menu Chapter 6: Reference...

  • Page 7: General Features

    C h a p t e r 1 General Features Excellent Sound Screen Slow Motion Program Play (CD) Parental Control (DVD) Various On-Screen Menu Functions Progressive Scan EZ VIEW (DVD) Digital Photo Viewer (JPEG) Repeat MP3/WMA Instant Replay (DVD) Instant Skip (DVD) HDMI (High Definition Multimedia Interface) COPY PROTECTION...

  • Page 8: Disc Type And Characteristics

    Disc Type and Characteristics Recording Types Disc Types (Logos) VIDEO-CD AUDIO-CD Disc Markings STEREO DIGITAL SOUND You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player.
  • Page 9 Description Front Panel Controls DVD-HD850 1. STANDBY/ON ( 2. DISC TRAY 3. OPEN/CLOSE ( 4. DISPLAY 5. EZ VIEW Front Panel Display 1. Disc type indicators 2. Play / Pause OPEN/CLOSE 6. STOP ( 7. REMOTE CONTROL RECEIVER 8. SKIP ( ) / SEARCH 9.
  • Page 10 Rear Panel 1. DIGITAL AUDIO OUT JACKS 2. COMPONENT VIDEO OUT JACKS 3. AUDIO OUT JACKS Note 4. VIDEO OUT JACK 5. S-VIDEO OUT JACK 6. HDMI OUT JACK...

  • Page 11: Tour Of The Remote Control

    Tour of the Remote Control 1. DVD POWER Button 2. NUMBER Buttons 3. PROG Button 4. STEP Button 5. VOL (+, -) Buttons 6. TV/VIDEO Button 7. SEARCH Buttons ( 8. STOP Button ( 9. SKIP Buttons ( 10. MENU Button 11.

  • Page 12: Choosing A Connection

    C h a p t e r 2 Choosing a Connection Before Connecting the DVD Player Connection to a TV (Video) (red and white) OUT VIDEO (yellow)/AUDIO (red and white) IN Note - Noise may be generated if the audio cable placed too close to the power cable. VIDEO (yellow)/AUDIO ➝...

  • Page 13: Connection To A Tv (S-Video)

    Connection to a TV (S-Video) S-VIDEO IN AUDIO (red and white) and white) IN COMPOSITE/S-VIDEO VIDEO SEL. Note S-VIDEO AUDIO (red...
  • Page 14 Connection to a TV (Interlace) COMPONENT VIDEO OUT COMPONENT IN and white) IN Component (I-SCAN) VIDEO SEL. Note - If Video output is incorrectly set to S-Video with the Component cables connected, the screen will turn red. AUDIO (red and white) AUDIO (red...
  • Page 15 Connection to a TV (Progressive) COMPONENT VIDEO OUT COMPONENT IN AUDIO (red and white) and white) IN HDMI/COMPONENT (P-SCAN) VIDEO SEL. To see the progressive video output, - Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.
  • Page 16 Connecting to a TV with DVI Jack (red and white) IN Connecting to a TV with HDMI Jack HDMI IN HDMI VIDEO Specifications HDMI SEL. HDMI SEL. HDMI DVI IN AUDIO (red and white) AUDIO HDMI OUT...
  • Page 17 • HDMI (High Definition Multimedia Interface) • HDMI connection description • Why does Samsung use HDMI? • What is the HDCP?

  • Page 18: Connection To An Audio System (2 Channel Amplifier)

    Connection to an Audio System (2 Channel Amplifier) and white) IN COMPONENT HDMI OUT VIDEO, S-VIDEO COMPONENT input Note - Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears. AUDIO (red and white) AUDIO (red VIDEO, S-VIDEO...
  • Page 19 Connection to an Audio System (Dolby digital, MPEG2 or DTS Amplifier) AUDIO OUT (OPTICAL) DIGITAL AUDIO IN (OPTICAL) AUDIO OUT (COAXIAL) DIGITAL AUDIO IN (COAXIAL) COMPONENT HDMI OUT VIDEO, S-VIDEO COMPONENT input Note - When you connect the DVD player to DTS Amplifier and play a DTS disc, set the DTS to On in Audio Setup menu.

  • Page 20: Playing A Disc

    C h a p t e r 3 Playing a Disc Before Play SELECT MENU LANGUAGE Playback OPEN/CLOSE PLAY/PAUSE ( OPEN/CLOSE ( ) POWER NUMBER RESUME function...
  • Page 21 Stopping Play STOP ( ) Removing Disc OPEN/CLOSE Pausing Play PLAY/PAUSE STEP Step Motion Play (Except JOG DIAL STEP Slow Motion Play (Except SEARCH ( Note Note Note...

  • Page 22: Using The Search And Skip Functions

    Using the Search and Skip Functions Searching through a Chapter or Track SHUTTLE DIAL SEARCH Skipping Tracks SKIP Note Note...

  • Page 23: Using The Display Function

    Using the Display Function When Playing a DVD/VCD/CD INFO … † Title Chapter 0 :00:13 Time ENG 5.1CH Audio Subtitle Track 0 : 0 0 : 4 8 Time Track 0 : 0 0 : 4 8 Time œ √ ENTER...
  • Page 24 INFO Note Title Chapter Track Time Audio Subtitle...

  • Page 25: Using The Disc And Title Menu

    Using the Disc and Title Menu Using the Disc Menu (DVD) MENU … † Disc Menu √ ENTER Using the Title Menu (DVD) MENU … † Title Menu √ ENTER Note Press ENTER key for Disc Menu Press ENTER key for Title Menu Note...

  • Page 26: Using The Function Menu

    Using the Function Menu Using the Function Menu (DVD/VCD) MENU … † Function √ ENTER … † √ ENTER Info Zoom Bookmark Repeat EZ View Note...

  • Page 27: Repeat Play

    Repeat Play When playing a DVD/VCD/CD REPEAT œ √ Chapter Title ENTER Using the A-B Repeat function Note REPEAT œ √ ENTER 01 A - B REPEAT ENTER 01 A - B REPEAT ENTER 01 A - B REPEAT ENTER Note 01 A - B REPEAT ENTER...

  • Page 28: Slow Repeat Play

    Slow Repeat Play When playing a DVD/VCD PLAY/PAUSE ( SEARCH ( REPEAT œ √ ENTER ENTER CLEAR PLAY/PAUSE Using the A-B Repeat function Note...

  • Page 29: Program Play & Random Play

    Program Play & Random Play Program Play (CD) PROG PROGRAM œ √ PROGRAM ENTER … † œ √ Track ENTER PLAY/PAUSE Random Play (CD) PROGRAM PROG Press the œ/√ buttons to select RANDOM. Press the ENTER button. œ œ √ √ RANDOM PROGRAM 01 Program Order...

  • Page 30: Adjusting The Aspect Ratio (Ez View)

    C h a p t e r 4 Adjusting the Aspect Ratio (EZ View) To play back using aspect ratio (DVD) EZ VIEW VIEW If you are using a 16:9 TV For 16:9 aspect ratio discs WIDE SCREEN - SCREEN FIT - ZOOM FIT WIDE SCREEN EZ VIEW...
  • Page 31 If you are using a 4:3 TV For 16:9 aspect ratio discs - 4:3 Letter Box - 4:3 Pan Scan - SCREEN FIT - ZOOM FIT Note For 4:3 aspect ratio discs - Normal Screen - SCREEN FIT - ZOOM FIT...

  • Page 32: Selecting The Audio Language

    Selecting the Audio Language Using the AUDIO button (DVD/VCD/CD) AUDIO Stereo Right Left AUDIO CLEAR RETURN ENG DOLBY DIGITAL 5.1CH AUDIO Stereo AUDIO Note...

  • Page 33: Selecting The Subtitle Language

    Selecting the Subtitle Language Using the SUBTITLE button (DVD) SUBTITLE SUBTITLE CLEAR RETURN SUBTITLE Note...

  • Page 34: Changing The Camera Angle

    Changing the Camera Angle Using the ANGLE button (DVD) ANGLE ANGLE CLEAR RETURN Using the Instant Replay/Skip Function Using the Instant Replay function (DVD) INSTANT REPLAY Using the Instant Skip function (DVD) INSTANT SKIP ANGLE Note Note...

  • Page 35: Using The Bookmark Function

    Using the Bookmark Function Using the Bookmark Function (DVD/VCD) BOOKMARK Using the MENU button. MENU … … /† † Function √ ENTER … … /† † Bookmark √ ENTER ENTER Info Zoom Bookmark Repeat EZ View Info Zoom Bookmark Repeat EZ View Note...
  • Page 36 Recalling a Marked Scene BOOKMARK œ/√ PLAY/PAUSE Clearing a Bookmark BOOKMARK œ/√ CLEAR...

  • Page 37: Using The Zoom Function (Dvd/Vcd)

    Using the Zoom Function Using the Zoom Function (DVD/VCD) ZOOM Using the MENU button. MENU … … /† † Function √ ENTER … … /† † Zoom √ ENTER … … /† † œ/√ ENTER Info Zoom Bookmark Repeat EZ View Info Zoom Bookmark...

  • Page 38: Clips Menu For Mp3/Wma/Jpeg

    Clips Menu for MP3/WMA/JPEG R O O T REPEAT Folder Selection - To select the Parent Folder RETURN … … /† † ENTER - To select the Peer Folder œ/√ … … /† † ENTER - To select the Sub-Folder œ/√...

  • Page 39: Mp3/Wma Playback

    MP3/WMA Playback R O O T … … /† † œ/√ ENTER 0 0 : 0 0 : 2 3 R O O T M P 3 W M A Repeat/Random playback REPEAT Off Track Folder Random CLEAR O f f R O O T M P 3 W M A...
  • Page 40 CD-R MP3/WMA file When you record MP3 or WMA files on CD-R, please refer to the following. - Your MP3 or WMA files should be ISO 9660 or JOLIET format. - When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma”...

  • Page 41: Picture Cd Playback

    Picture CD Playback R O O T … … /† † R O O T W M A J P E G M P 3 ENTER INFO œ √ ENTER Album Screen Rotation ENTER Zoom … … /† † œ/√ ENTER ➝...
  • Page 42 CD-R JPEG Discs...

  • Page 43: Using The Setup Menu

    C h a p t e r 5 Using the Setup Menu MENU … … /† † Setup Setup √ ENTER Œ ´ ˇ ¨ … … /† † √ ENTER MENU √ √ Language Setup √ √ Audio Setup √...

  • Page 44: Setting Up The Language Features

    Setting Up the Language Features Using the Player Menu Language MENU … … /† † Setup √ ENTER Setup … … /† † Language Setup √ ENTER Setup Player Menu … … /† † Disc Menu Player Menu Audio Subtitle √...

  • Page 45: Using The Disc Menu Language

    Using the Disc Menu Language MENU … … /† † Setup √ ENTER Setup … … /† † Language Setup √ ENTER Setup Player Menu … … /† † Disc Menu Disc Menu Audio Subtitle √ ENTER … … /† † Disc Menu √...

  • Page 46: Using The Audio Language

    Using the Audio Language MENU … … /† † Setup √ ENTER Setup … … /† † Language Setup √ ENTER Setup Player Menu … … /† † Disc Menu Audio Audio Subtitle √ ENTER … … /† † Audio √...

  • Page 47: Using The Subtitle Language

    Using the Subtitle Language MENU … … /† † Language Setup Audio Setup Setup Display Setup √ ENTER Parental Setup : Setup … … /† † Language Setup Language Setup Audio Setup √ Display Setup Parental Setup : ENTER Setup Player Menu …...

  • Page 48: Setting Up The Audio Options

    Setting Up the Audio Options MENU … … /† † Setup √ ENTER Setup … … /† † Audio Setup √ ENTER Setup Dolby/DTS Digital Out … … /† † Dynamic Compression PCM Down Sampling √ ENTER √ √ Language Setup √...
  • Page 49 Œ Note ´ ˇ Note HDMI - If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS, MPEG), you should set Digital Audio to PCM. - If your TV is not compatible with LPCM sampling rates over 48kHz, you should set PCM Down sampling to On.

  • Page 50: Setting Up The Display Options

    Setting Up the Display Options MENU … … /† † Setup √ ENTER Setup … … /† † Display Setup √ ENTER Setup TV Aspect … … /† † Still Mode Screen Messages √ Black Level ENTER Video Output HDMI √...

  • Page 51: Still Mode

    TV Aspect Œ TV ASPECT 4:3 Lettre Box 4:3 Pan Scan 16:9 Wide Still Mode ´ Screen Messages ˇ Black Level ¨ Video Output ˆ ➝ ➝ DISPLAY SETUP √ √ TV Aspect : Wide Still Mode : Auto Screen Messages : On Black Level : On...
  • Page 52 HDMI Ø HDMI SETUP Resolution : 480p Format : RGB-Normal Brightness : Level 3 • Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s menu system.

  • Page 53: Setting Up The Parental Control

    Setting Up the Parental Control MENU … … /† † Setup √ ENTER Setup … … /† † Parental Setup √ ENTER Setup Use Password √ ENTER Re-enter Password √ √ Language Setup √ √ Audio Setup √ √ Display Setup √...

  • Page 54: Setting Up The Rating Level

    Setting Up the Rating Level MENU … … /† † Setup √ ENTER Setup … … /† † Parental Setup √ ENTER Setup Use Password … … /† † Rating Level Rating Level Change Password √ ENTER … … /† † Level 8 Adult Level 7 Level 6...

  • Page 55: Changing The Password

    Changing the Password MENU … … /† † Setup √ ENTER Setup … … /† † Parental Setup √ ENTER Setup … … /† † Use Password Rating Level Change Change Password Password √ ENTER Enter New Password Re-enter Password √...

  • Page 56: Controlling A Tv With The Remote Control

    C h a p t e r 6 Controlling a TV with the Remote control BRAND CODE You can control the TV POWER, CH ( functions of another manufacturer's TV. The remote control may not be able to control every model TV of the brands listed. If you replace the remote control's batteries, set the brand code again.

  • Page 57: Troubleshooting

    Troubleshooting Action Problem Page...
  • Page 58 Action Problem Page...

  • Page 59: Specifications

    Specifications...

  • Page 63: Warranty

    Warranty One (1) Year Parts / Ninety (90) days Labor...
  • Page 64 ELECTRONICS AK68-00627A-00...
