Your New Plasma Display Panel

➢
The actual configuration on your PDP may be different,
depending on your model.

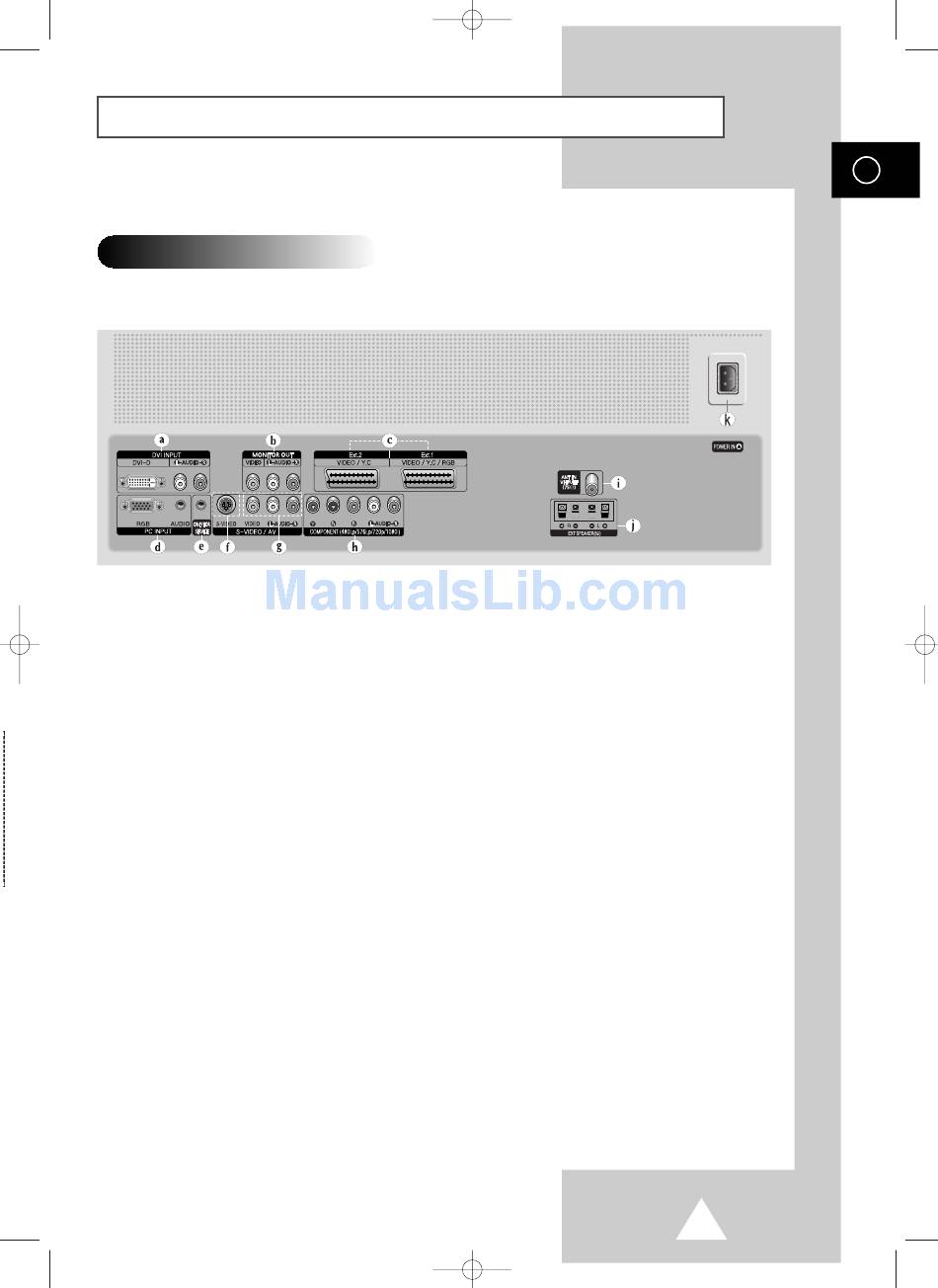

Rear Panel

a) DVI INPUT
Connect to digital video output jack for device
with DVI output.
b) MONITOR OUT (VIDEO / L-AUDIO-R)
Outputs for external devices
c) Ext.1, Ext.2
Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
players.
d) PC INPUT (RGB IN / AUDIO)
Connect to the video and audio output jack on
your PC.
e) ONLY FOR SERVICE
Connector for service only.
f) S-VIDEO
Video and audio inputs for external devices with
an S-Video output, such as a camcorder or VCR.
11:17 AM
Page 7
g) AV (VIDEO / L-AUDIO-R )
h) COMPONENT
i) ANT IN VHF/UHF (75Ω)
j) EXT SPEAKER(8Ω)
K) POWER IN
Video and audio inputs for external devices, such
as a camcorder or VCR.
Video (Y/P
/P
) and audio (L-AUDIO-R) inputs for
b
r
Component.
75Ω Coaxial connector for Aerial/Cable Network.
Connectors for external speakers.
Connect the supplied power cord.
ENG
1

Advertisement

Table of Contents
loading

Related Manuals for Samsung PS-42D4S

Summary of Contents for Samsung PS-42D4S

  • Page 1: Rear Panel

    BN68-00699A-00_Eng 4/13/04 11:17 AM Your New Plasma Display Panel ➢ The actual configuration on your PDP may be different, depending on your model. Rear Panel a) DVI INPUT Connect to digital video output jack for device with DVI output. b) MONITOR OUT (VIDEO / L-AUDIO-R) Outputs for external devices c) Ext.1, Ext.2 Inputs or outputs for external devices, such as...

  • Page 2: Inserting The Batteries In The Remote Control

    BN68-00699A-00_Eng 4/13/04 Inserting the Batteries in the Remote Control You must insert or replace the batteries in the remote control when you: ◆ Purchase the PDP ◆ Find that the remote control is no longer operating correctly Remove the cover on the rear of the remote control by pressing the symbol ( ) downwards and then pulling firmly to remove it.

  • Page 3: Installing The Display On The Wall Attachment Panel

    BN68-00699A-00_Eng 4/13/04 11:17 AM Installing the Display on the Wall Attachment Panel Installation Notes ◆ Do not install the PDP on any place other than vertical walls. ◆ To protect the performance of the PDP and prevent troubles, avoid the followings: - Do not install next to smoke and fire detectors.
  • Page 4 BN68-00699A-00_Eng 4/13/04 11:18 AM Installing the Display on the Wall Attachment Panel ➢ The exterior of the PDP may be different than the picture. (Assembly and installation of the plastic hanger is the same.) Remove the screws from the back of the PDP. Tighten the screws of the plastic hanger to the back side of the PDP.

  • Page 5: Connecting Speakers

    BN68-00699A-00_Eng 4/13/04 11:18 AM Connecting Speakers Remove the screws on the rear of the PDP. Hang the two “T” shaped hangers on the square holes on the rear of the PDP. Tighten the PDP and the speaker bracket using the screws removed from the PDP. ➢...
  • Page 6 BN68-00699A-00_Eng 4/13/04 11:18 AM Connecting Speakers Connect the speaker audio cable to the external speaker output jack on the rear of the PDP matching the “+” and “-” ends of the cable with the diagram on the PDP. ➢ ◆ The speakers MUST have to a power handling capability of 10 watts minimum (impedance 8Ω). ◆...

  • Page 7: Connecting To An Aerial Or Cable Television Network

    BN68-00699A-00_Eng 4/13/04 11:18 AM Connecting to an Aerial or Cable Television Network Rear of the PDP Cable Television Network Connecting a Satellite Receiver or Decoder Rear of the PDP Satellite receiver/ Decoder Page 14 To view television channels correctly, a signal must be received by the set from one of the following sources: ◆...

  • Page 8: Connecting To The External Devices

    BN68-00699A-00_Eng 4/13/04 11:19 AM Connecting to the External Devices “MONITOR OUT” are used for the equipment with an RGB output, such as video game devices or video disc players. Rear of the TV (Input/Output) ① This end can be fitted with: ◆...

  • Page 9: Connecting To The S-Video Input

    BN68-00699A-00_Eng 4/13/04 11:19 AM Connecting to the S-Video Input The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output, such as a camcorder or VCR. Rear of the TV ① To play picture and sound, both the S-VIDEO and RCA connectors must be used. ☛...

  • Page 10: Connecting To The Dvi Input

    BN68-00699A-00_Eng 4/13/04 11:19 AM Connecting to the DVI Input The “DVI” (video) and “L-AUDIO-R” connectors are used for equipment with a DVI output. Rear of the TV Connecting to the PC Input The “RGB” (video) and “AUDIO” connectors are used for interfacing with your PC. Rear of the TV Page 54 Personal Computer...

  • Page 11: Connecting To The Component Input

    BN68-00699A-00_Eng 4/13/04 11:19 AM Page 55 Connecting to the Component Input Rear of the TV ① The “COMPONENT” connectors are DTV receiver used for DTV receiver or DVD. (480i,p/576i,p/720p/1080i)

  • Page 12: Connecting And Using The Home Theater System

    BN68-00699A-00_Eng 4/13/04 11:19 AM Connecting and Using the Home Theater System Use the Monitor Out ports of the PDP for Home Theater System Connections. ① DVD Home Theater ☛ ◆ Refer to corresponding user’s manual from the manufacturer for wiring the speakers to the DVD Home Theater System (or AV Receiver).
