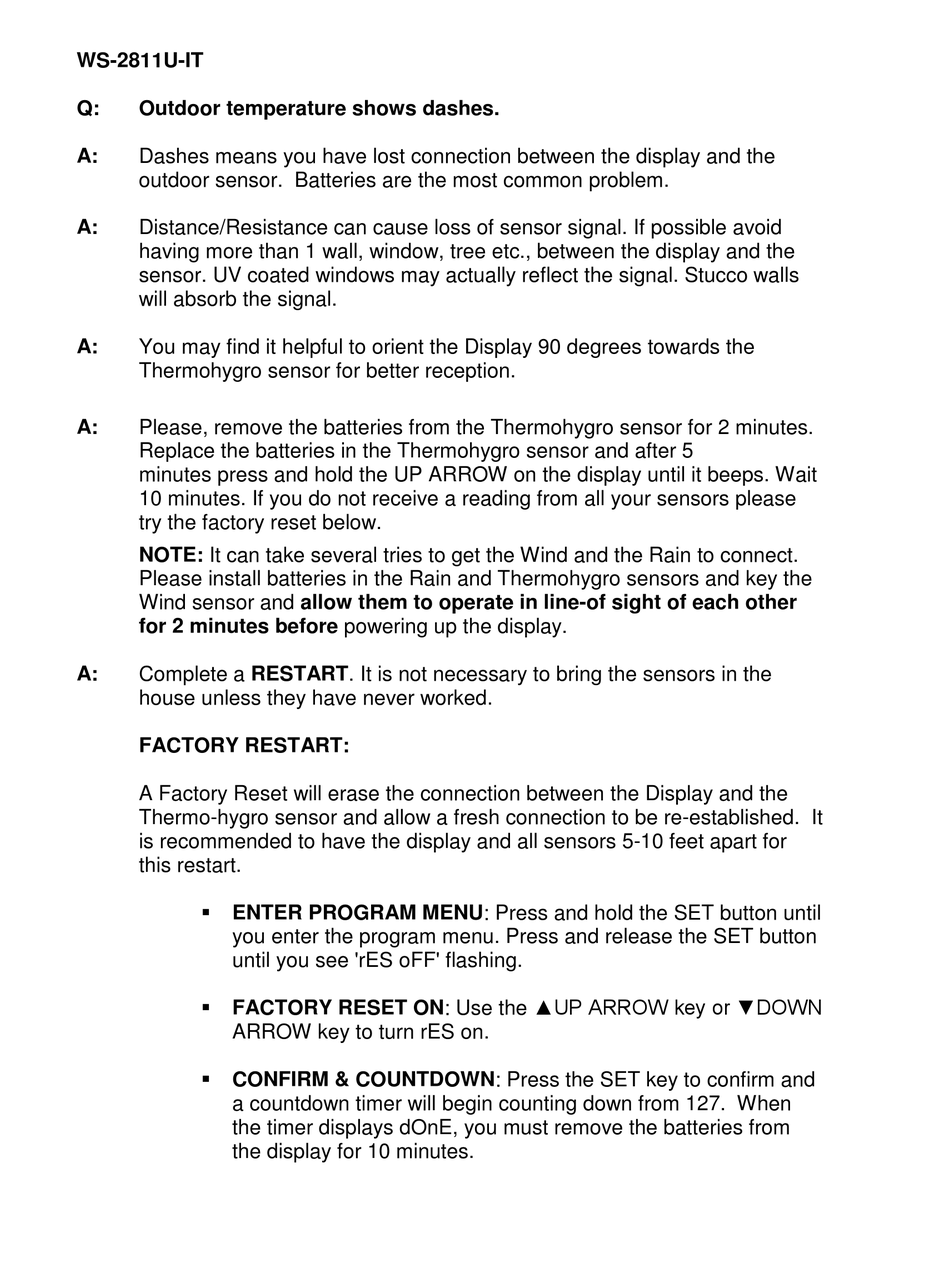

WS-2811U-IT
Q:
Outdoor temperature shows dashes.
A:
Dashes means you have lost connection between the display and the
outdoor sensor. Batteries are the most common problem.
A:
Distance/Resistance can cause loss of sensor signal. If possible avoid
having more than 1 wall, window, tree etc., between the display and the
sensor. UV coated windows may actually reflect the signal. Stucco walls
will absorb the signal.
A:
You may find it helpful to orient the Display 90 degrees towards the
Thermohygro sensor for better reception.
A:
Please, remove the batteries from the Thermohygro sensor for 2 minutes.
Replace the batteries in the Thermohygro sensor and after 5
minutes press and hold the UP ARROW on the display until it beeps. Wait
10 minutes. If you do not receive a reading from all your sensors please
try the factory reset below.
NOTE: It can take several tries to get the Wind and the Rain to connect.
Please install batteries in the Rain and Thermohygro sensors and key the
Wind sensor and allow them to operate in line-of sight of each other
for 2 minutes before powering up the display.
A:
Complete a RESTART. It is not necessary to bring the sensors in the
house unless they have never worked.
FACTORY RESTART:
A Factory Reset will erase the connection between the Display and the
Thermo-hygro sensor and allow a fresh connection to be re-established. It
is recommended to have the display and all sensors 5-10 feet apart for
this restart.
 ENTER PROGRAM MENU: Press and hold the SET button until
you enter the program menu. Press and release the SET button
until you see 'rES oFF' flashing.
 FACTORY RESET ON: Use the ▲UP ARROW key or ▼DOWN
ARROW key to turn rES on.
 CONFIRM & COUNTDOWN: Press the SET key to confirm and
a countdown timer will begin counting down from 127. When
the timer displays dOnE, you must remove the batteries from
the display for 10 minutes.

Advertisement

loading

Related Manuals for La Crosse Technology WS-2811U-IT

Summary of Contents for La Crosse Technology WS-2811U-IT

  • Page 1 WS-2811U-IT Outdoor temperature shows dashes. Dashes means you have lost connection between the display and the outdoor sensor. Batteries are the most common problem. Distance/Resistance can cause loss of sensor signal. If possible avoid having more than 1 wall, window, tree etc., between the display and the sensor.
  • Page 2  REMOVE BATTERIES FROM THERMOHYGRO AND RAIN: While the batteries are out of the display, also remove the batteries from the Thermo-hygro sensor and the Rain sensor. Wait 15 minutes.  GENTLY KEY THE WIND SENSOR: Gently key the wind sensor one time to activate the sensor.
  • Page 3 sensor. UV coated windows may actually reflect the signal. Stucco walls will absorb the signal. Check batteries. This is our primary warranty issue. Outdoor Temperature shows OFL (outside factory limits). Check batteries. This is our primary warranty issue. Over powered or underpowered batteries can cause this reading.
  • Page 4 Wind cups or directional vane are broken. Replace the wind directional vane:  Gently remove the piece of plastic in the top center of the vane to reveal the screw that holds the vane to the sensor.  Remove the screw. ...
  • Page 5 Check that the wind sensor is receiving plenty of sunlight. You can bring it in and place under a lamp for 24-hours if needed. Distance/Resistance can cause loss of sensor signal. If possible avoid having more than 1 wall, window, tree etc., between the display and the Thermohygro sensor.
  • Page 6 Check that the cups turn freely. Check for insects or debris preventing free movement. Be sure the cups are mounted below the mast. Check that the cups have not dropped. Push up firmly in the center of the cups to seat properly. Be sure the Wind sensor solar panel is receiving plenty of light.
  • Page 7 The wind sensor does not often freeze as it is always moving. RAIN: What is 1-hour, 24-hour, weekly, monthly and total rain? The 1-hour and 24-hour rain is recorded in real time with a short delay. As the rain stops falling the 1-hour and 24-hour rainfall totals will slowly count backwards to zero.
  • Page 8 PLEASE CHECK YOUR SOFTWARE VERSION: You should be using version 1.3 software for the WS-2811U-IT Check that your unit of measure (inches or mm) is correct. Complete a Manual Tip Test and a Water Tip Test and compare them: Manual Tip test: Write down the Total Rain reading or reset the Rain Total to 0.00.

  • Page 9: Rain Gauge

    readings. (Avoid tall trees or other obstructions that may block or reflect the wind). A 50 –foot clearance in all directions is best. For more information on wind speed and obstructions, check this site: http://www.talentfactory.dk/en/tour/wres/obst.htm. Wind cups should be below the mast. Ideally the Wind sensor should have a direct line of sight to the Thermohygro sensor.

  • Page 10: Thermohygro Sensor

    AVOID: Transmitting antennas, using PVC pipe (unless electrical grade), and other sources of interference. THERMOHYGRO SENSOR: THERMOHYGRO: Place the Outdoor sensor vertically, in a well-shaded area that is protected from direct rainfall and sun.The sensor will read high if exposed to the sun. If the sensor gets too wet it will not read accurate humidity.
  • Page 11  NOTE: When in the 12h mode, there is only a 'PM' display, which appears under the word TIME. During the 'AM' hours this area will be blank. When the correct hour is shown, press and release the SET button once. ...
  • Page 12 should be set to 0.12 (within 30 miles of the desert). Press the UP ARROW or DOWN ARROW key to adjust. Press and release the SET button.  STORM ALARM SENSITITY: The Storm Alarm Sensitivity will now be flashing. The default setting of .15 works well in most areas, however you may need to adjust this level up or down depending on local conditions.
  • Page 13 Alarms. The following 13 Weather Alarms can be adjusted in ALARM setting mode:  High and Low pressure alarms  High and Low indoor temperature alarms  High and Low indoor humidity alarms  High and Low outdoor temperature alarms ...
  • Page 14 Min/Max readings. The weather station will record the maximum and minimum value of the various weather data with time and date of recording automatically. The following stored maximum and minimum weather data can be viewed by pressing the MIN/MAX key in normal display mode. ...
  • Page 15 WS-2811U-IT Heavy Weather PC issues Software download errors. A: Make sure you enter the correct URL in your browser search window. The WS-2811U-IT Series software is located at: http://www.lacrossetechnology.com/2811/index.php  Then scroll about halfway down the page to the link that reads: Download the PC software: Heavy Weather Pro 2800 version 1.5.

  • Page 16: Troubleshooting

    Firefox: http://www.mozilla.com/en-US/firefox/ie.html Chrome: http://www.google.com/chrome Opera: http://www.opera.com/ Safari: http://www.apple.com/safari/ If the above steps do not resolve the problem, then you will need to take a USB drive to another PC, download and save the file there. The file is too large to email and it is not cost-effective to ship CDs. Please make sure both locations have appropriate anti-virus software to protect you in carrying the software across locations.
  • Page 17 High rain readings in software. PLEASE CHECK YOUR SOFTWARE VERSION: You should be using version 1.3 software for the WS-2811U-IT Spikes in your rain reading on the computer can be caused be radio frequency interference or loss of signal while connected to the computer.
  • Page 18 on the computer history file, (Often 70-80 inches). This can also occur during loss of power or connection during a storm. Please close the Heavy Weather first when resetting the weather station and transmitter. How to delete history data. You can delete individual lines of history data (dataset) or delete an entire history file.
  • Page 19 the My Documents folder and open the HeavyWeather folder. All history.dat files are stored in the History folder.  NOTE: Downloading the history to the computer does not remove it from the display unit. The display unit will keep all data and overwrite the older data over time.
  • Page 20 Data Storage: Your WS-2811U-IT display station will record up to 1750 data sets that can be downloaded to your computer. This station will not “empty” when data is downloaded. The station will continue to record and overwrite the oldest data.
  • Page 21  Virtual Weather Station: http://www.ambientweather.com/virtualstation.html. This third party program is compatible with the WS-2811U-IT (via the currdat.lst file updated by Heavy Weather Pro software) How to use Heavy Weather Publisher to upload weather information to your personal website or to e-mail current weather information to friends and family.
