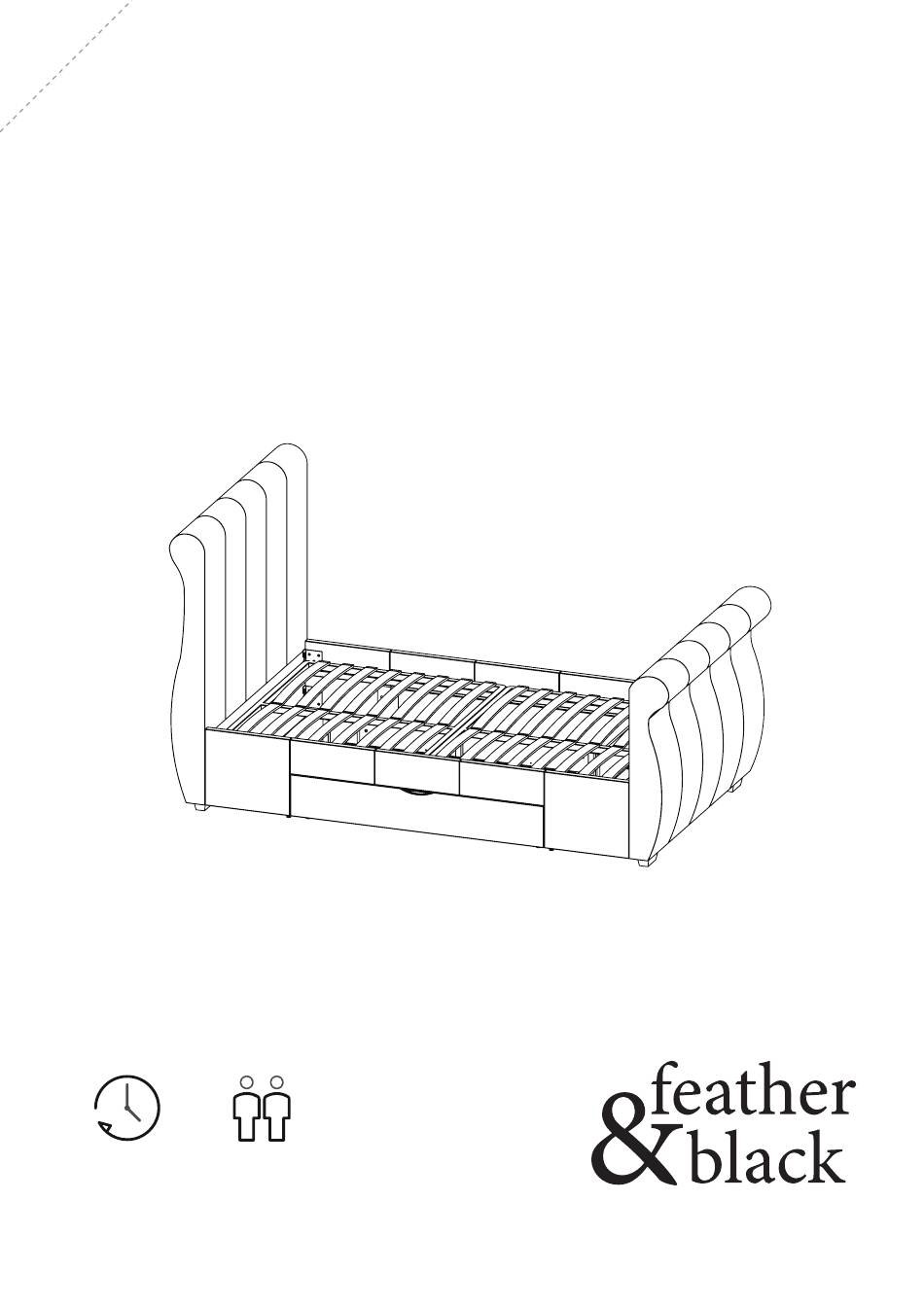

- Page 1 Shamley Storage Bed Double King Super King 1 hour approx Two person assembly time assembly MK1 200921...
-
Page 2: Assembly Tips
Please ensure that packaging is disposed of in a safe and environmentally friendly way, and recycle where possible. Our assembly instructions are printed on recycled paper. Please keep your assembly instructions safe to refer back to in the future. Shamley Storage Bed - Assembly Guide... -
Page 3: Parts List
Sprung Slat Frame Outer Support Legs Drawer Base Support Rails - End Bolts (M6x15mm) for Tools required the sprung slat frame support legs (F&G). Please check you have all these below Tape measure Cross head screwdriver Shamley Storage Bed - Assembly Guide... - Page 4 Screws (4x30mm) for fitting Plastic Barrel Nuts for assembling drawer panels drawer support rails (O&P) drawer face panels (J) assembling drawer panels Hardware included for drawer wheel (pack D) n x10 Drawer Wheels 10 10 Shamley Storage Bed - Assembly Guide...
- Page 5 Arrows on labels point towards each other Carefully adjust feet so they just touch the floor Adjustable Feet keeping side rails level when bed is in use. Shamley Storage Bed - Assembly Guide...
- Page 6 Make certain the bed is squared up, as shown in the diagram. Once all four corners are located, make sure the bed is still square, then tighten all the bolts 100% using Allen key (d). Shamley Storage Bed - Assembly Guide...
- Page 7 Open the sprung slat frame and lay face down on the working surface. Fit the support legs (F & G) to the positions shown, securing with the bolts (p). Fully tighten using Allen key (h). Shamley Storage Bed - Assembly Guide...
- Page 8 (e), spring washers (v), flat washers (g) and sleeve-nuts (f). When all in place tighten using Allen key (h). Finally, please check carefully that all bolts are fully tightened before the bed is used. Shamley Storage Bed - Assembly Guide...
- Page 9 Drawer assembly - use pack 'C' x2 Drawers to assemble IMPORTANT: Align the holes between the barrel nut (s) and the panel edge, this will allow screw (j) to fix correctly. Shamley Storage Bed - Assembly Guide...
- Page 10 Shamley Storage Bed - Assembly Guide...
- Page 11 Drawer assembly - use pack 'C&D' x2 Drawers to assemble l x8 Fit the assembled drawer to rear of Drawer Face Panel (H). Carefully follow the guide lines marked on the rear of the panel . Shamley Storage Bed - Assembly Guide...
- Page 12 230 x 190 x 106 Internal Dimensions (LW cm) Double: 193 x 137.5 King: 201 x 152.5 Super King: 201 x 182.5 Storage Drawer Dimensions, all Size of beds 120.5 x 62 x 20 (WDH cm) 62.5 Shamley Storage Bed - Assembly Guide...
-
Page 13: Care And Maintenance
Metal tends to be more resilient to everyday wear and tear. We recommend to gently dust your metal furniture and keep it dry to maintain its look. Thank you for shopping with us - we hope you have a great night's sleep Shamley Storage Bed - Assembly Guide...
