ZyXEL Communications ZYWALL 100 Read Me First

Zyxel communications network card user manual
Hide thumbs Also See for ZYWALL 100:
1
2
3
4
5

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual
PORT
CONSOLE
WAN 10/100M
DIAL BACKUP
POWER
DMZ
LAN 10/100M - UPLINK button "on" (pushed in)
LAN 10/100M - UPLINK button "off" (out)
WIRELESS LAN
Register your ZyWALL online at www.zyxel.com for free product updates and information.
ZyWALL 100 Read Me First

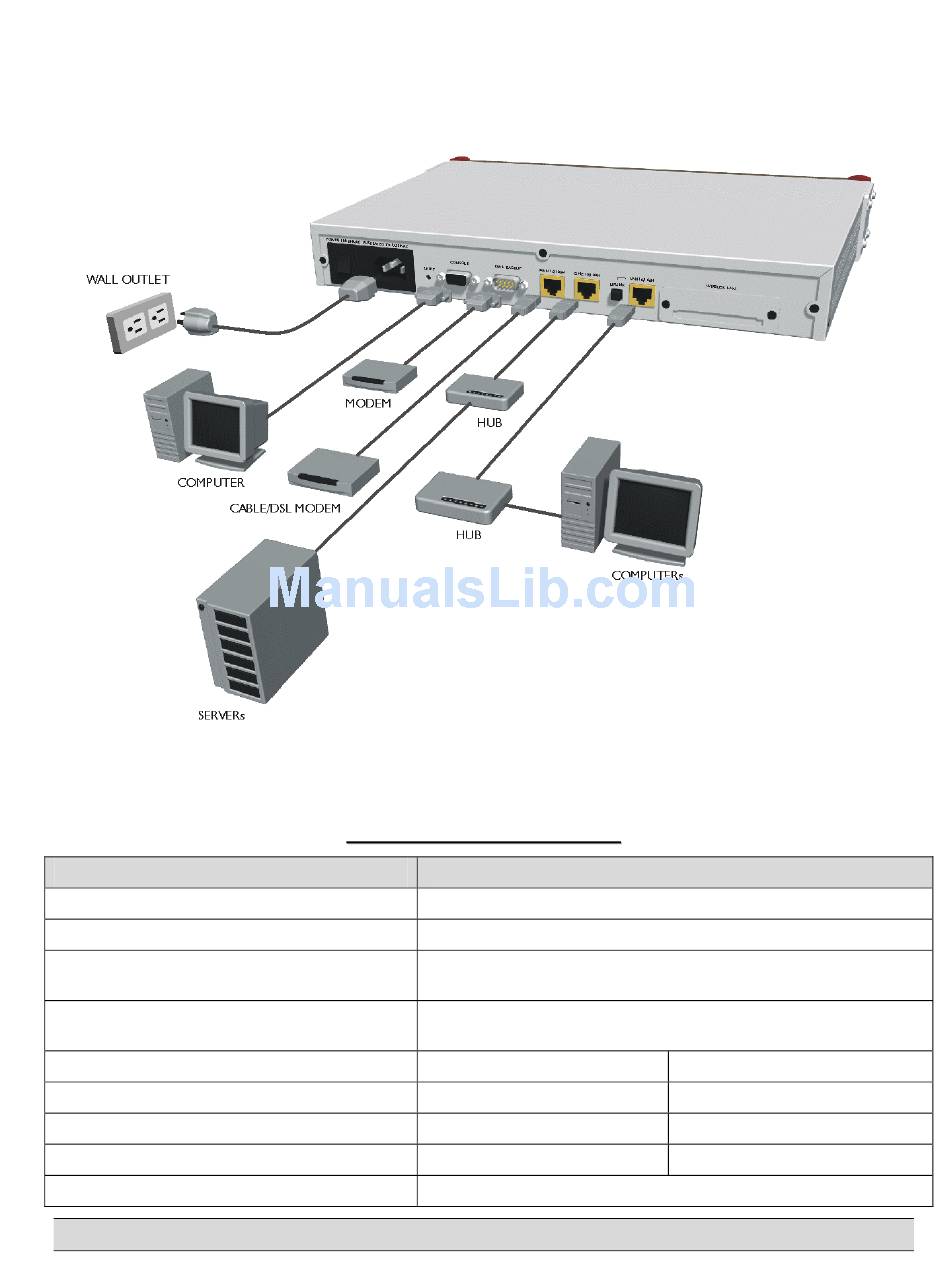

Rear Panel Connections
Rear Panel Connections
Connect to your computer's com port using a console cable.
Connect to a cable/xDSL device using an Ethernet cable.
Connect to an analog or ISDN device using a console (RS-232)
cable.
Connect the power cord to the ZyWALL and plug it into an
appropriate power outlet.
TO A COMPUTER
Crossover Ethernet cable
Straight-through Ethernet cable
Crossover Ethernet cable
Use a ZyXEL Wireless PC Card to connect to a wireless LAN.
CONNECTION
TO A HUB
Straight-through Ethernet cable
Crossover Ethernet cable
Straight-through Ethernet cable

Advertisement

loading

Related Manuals for ZyXEL Communications ZYWALL 100

Summary of Contents for ZyXEL Communications ZYWALL 100

  • Page 1 ZyWALL 100 Read Me First PORT CONSOLE WAN 10/100M DIAL BACKUP POWER LAN 10/100M - UPLINK button “on” (pushed in) LAN 10/100M - UPLINK button “off” (out) WIRELESS LAN Register your ZyWALL online at www.zyxel.com for free product updates and information.

  • Page 2: Before You Start

    IP Address: 192.168.1.1 Password: 1234 You need a broadband modem and an account with an Internet Service Provider (ISP). 1. Your user (account) name and password. 2. Encapsulation (Ethernet, PPTP or PPPoE) 3. You may need to know your Service Name if you are using PPTP or PPPoE. 4.

  • Page 3: Verifying Tcp/Ip Properties

    1. Click Start and then Run. In the Run window, type "winipcfg" and then click OK to open the IP Configuration window. 2. Select your network adapter. You should see your computer's IP address, subnet mask and default gateway. Set ting up Yo ur W ind ow s NT /20 00 /XP Comp ute r Configuring TCP/IP 1.

  • Page 4: Troubleshooting

    • Telnet Procedure For Web Configurator Configuration 1. Launch your web browser and enter “192.168.1.1” as the URL. 2. Type "1234" (default) as the password and press ENTER. 3. You should now see the Main Menu screen. Click the help icon (located in the upper right portion of most screens) for online HTML help.
  • Page 5 Client IP field, your computer’s IP address must match it. For access from the LAN, check your computer’s TCP/IP configuration. The IP address and the subnet mask of the ZyWALL and your computer must be on the same subnet. Cannot ping any If the 10/100M LAN LEDs are off, check the cables between the ZyWALL and your computer or hub.
