2. Specifications

■ SRTZ2401
Overall size ( L x W x H ) ····································································69.1 (1755) x 8.9 (225) x 10.0 (255) in. (mm)
Dry Weight w/o acc. ······················································································································13.6 (6.2) lbs (kg)
Engine
Fuel tank capacity ·························································································································21.3 fl.oz (0.63
Transmission ··················································································Centrifugal clutch, spiral bevel gear, cam crank
Reduction ratio ·····················································································································································4.0
Durability period·············································································································································300hrs.
Standard operation speed ················································································································6000~9000 rpm
Cutting head
Standard Accessories Shoulder strap ···············································································································1 pc
6
Type ·············································································Air cooled 2-stroke gasoline engine
Model ···································································································ZENOAH GZ23N10
Displacement ······················································································1.5 (23.6) cu-in (cm
Max. output ··································································1.1 Hp (0.8 kW) at 8000/min
Idle speed····························································································3000±200/min
Fuel ·························································································Mixture (Gasoline 50 : Oil 1)
Carburetor ······················································································Walbro Diaphragm type
Spark Plug ······································································································NGK CMR7H
Type ·························································································Reciprocating Double blade
Tooth ·······················································································································42 teeth
Pitch·········································································································1.18 (30) in. (mm)
Effective cut width··················································································23.2 (590) in. (mm)
Angle adjust range······················135° (+45°,-90° from cutting head position aligned shaft)
Goggle···························································································································1 pc
Tool Kit ··························································································································1 pc
Blade Cover···················································································································1 pc
English

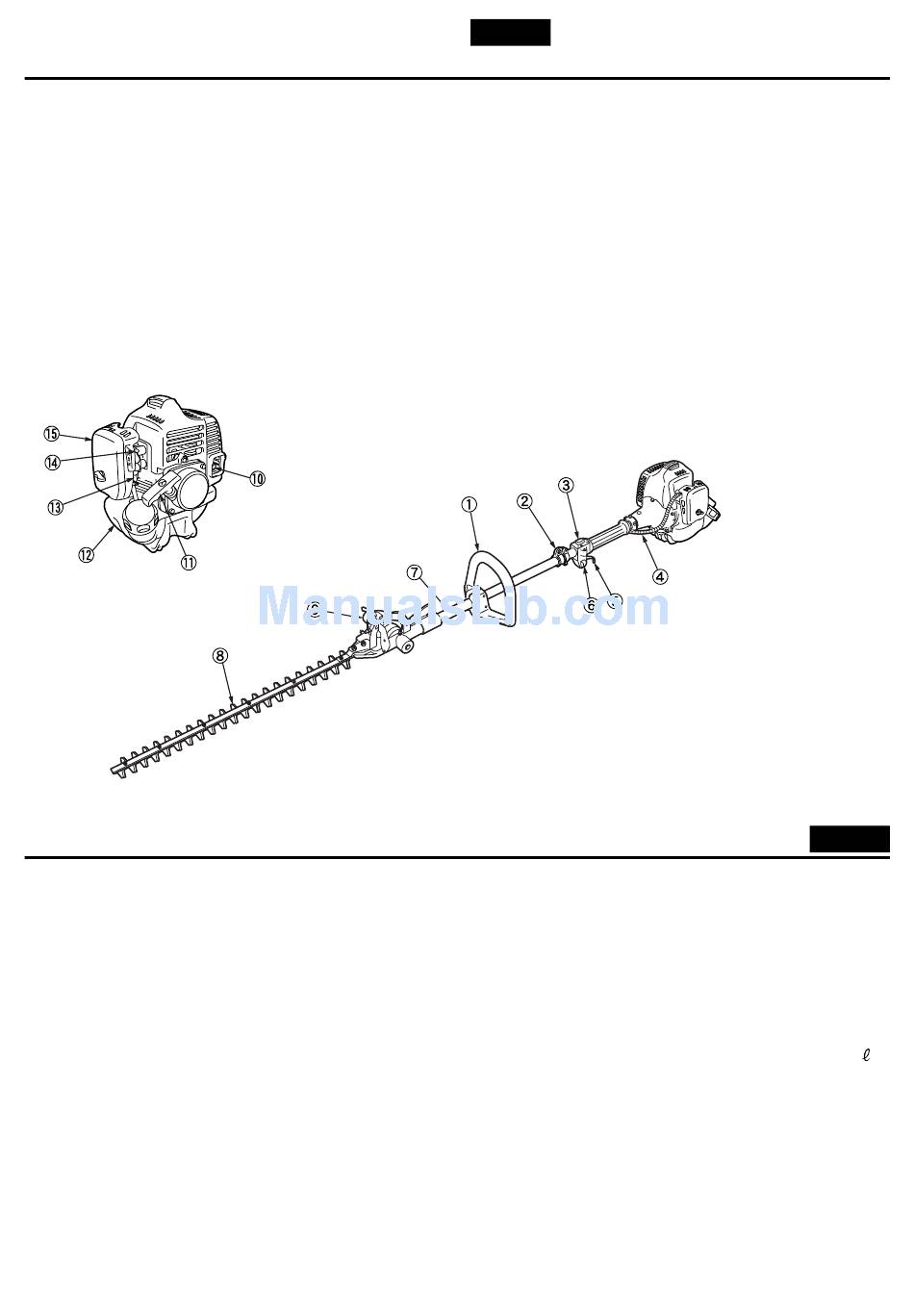

1. Parts location

1. Loop handle
2. Shoulder strap hanger
3. Ignition switch
4. Throttle cable
5. Throttle lever
6. Throttle set button
7. Drive shaft housing
8. Blade
9. Gear case
10. Spark arrester
11. Starter knob
12. Fuel tank
13. Primer pump
14. Choke lever
15. Air cleaner cover
(when using ZENOAH genuine oil)
Specifications are subject to change without notice.
