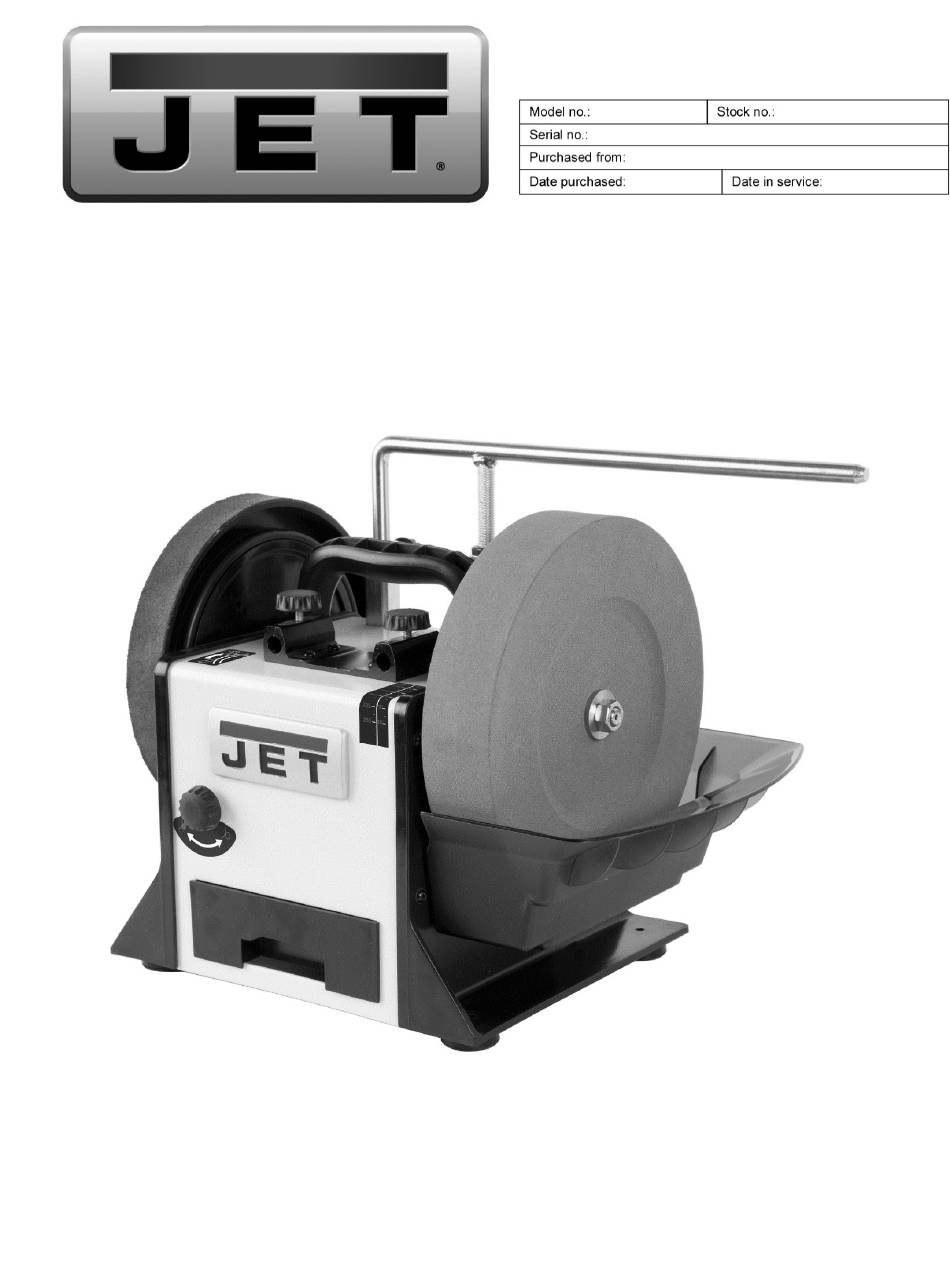

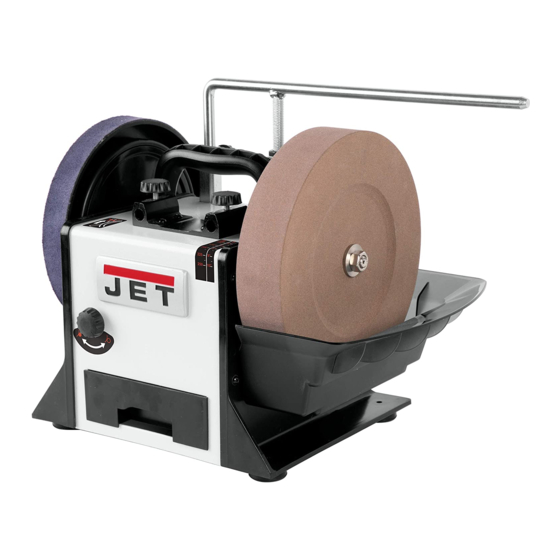

- Page 1 Operating Instructions and Parts Manual 10” Slow Speed Wet Sharpener Model JWS-10 427 New Sanford Road LaVergne, Tennessee 37086 Document No. M-727100 Ph.: 800-274-6848 Edition 1 05/2020 www.jettools.com Copyright © 2020 JET...
-
Page 2: Important Safety Instructions
Do not use this machine for other than its intended use. If used for other purposes, JET disclaims any 22. Provide for adequate space surrounding work real or implied warranty and holds itself harmless area and non-glare, overhead lighting. - Page 3 33. Don’t use in dangerous environment. Don’t use 44. Do not overtighten wheel nut. power tools in damp or wet location, or expose 45. Frequently clean grinding dust from the machine. them to rain. Don’t use this grinder in a flammable environment.
-
Page 4: Table Of Contents
12.15 TR-1 Tool Rest (Optional Accessory) ....................30 12.16 SA-1 Support Arm Assembly ........................ 30 12.17 SAE-1 Support Arm Extension Assembly (Optional Accessory) ............31 13.0 Electrical connections for JWS-10 Wet Sharpener ..................32 14.0 Warranty and Service ..........................33 ... -
Page 5: About This Manual
The operator is encouraged to familiarize him/herself with ANSI B7.1 – Safety Requirements for Use, Care and Protection of Abrasive Wheels. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Specifications
L = length, W = width, H = height, D = depth The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. - Page 7 This page intentionally left blank.
-
Page 8: Unpacking
Check each part against Table 1. Make certain that all items in the Standard column are included in the shipping container and accounted for before discarding any packing material. Note: Optional Accessories are available for purchase by calling your local dealer or JET. 5.1 Standard Components and Optional Accessories... - Page 9 Wood Turning Jig Set (includes J, N, O, 727200 chisel angle jig, hex wrench) 727300 Blade Jig Set (includes H, K, W, X) M-727100 Manual for JWS-10 Table 2 For assembly, operation, adjustments, maintenance and troubleshooting, please see the DVD included with this machine.
-
Page 10: Setup And Assembly
6.0 Setup and assembly 7.0 Electrical connections The Wet Sharpener must be Electrical connections should disconnected from power during assembly. be made by a qualified electrician in compliance with all relevant codes. This tool must be properly grounded. Inspect the Wet Sharpener – if any damage is found, notify your dealer immediately. -
Page 11: Extension Cords
Use only 3-wire extension cords that have 3-prong 8.0 Adjustments grounding plugs and 3-pole receptacles that accept the tool's plug. 8.1 Sharpening jig set up Repair replace damaged worn cord immediately. Use the existing angle measuring device to establish the tool’s cutting edge (Figure 10-1). 2. -
Page 12: Torque Adjustment
The stone is designed for wet sharpening only. Always fill the water tank with clean tap water, and make sure the wheel contacts the water before operating. 9.1 Stone wheel dressing See Figure 9-1. The supplied dual surface stone grader (S) dresses the stone wheel for fine or coarse sharpening. -
Page 13: Tool Honing
Move the tool left/right to ensure even wear across Cracked wheels should replaced the wheel. IMMEDIATELY. The other conditions can be remedied with a dressing tool. See sect. 9.1. Narrow or convex cutting edges require less pressure. Do not store a wet stone in freezing temperatures. Use both hands to stabilize the tool/jig during the When machine is not in use, remove water tank. -
Page 14: Cleaning
Brush has worn to about 1/8-inch long. Signs of crumbling, burning or breaking. End of brush is rough or pitted. Abnormal coloration of spring Broken lead in spring Collapsed spring Install new brush (or reinstall current brush if only inspecting) and gently press it all the way into hole. -
Page 15: Troubleshooting Jws-10 Wet Sharpener
11.0 Troubleshooting JWS-10 Wet Sharpener 11.1 Motor and electrical problems Table 4 * WARNING: Some corrections may require a qualified electrician. Symptom Possible Cause Correction * Motor will not start. Not connected to power source. Verify that plug is properly inserted into receptacle. -
Page 16: Mechanical And Operational Problems
Symptom Possible Cause Correction * Excessive vibration. Machine on uneven surface. Place machine on flat surface. Stone wheel out of balance. Dress wheel. One side of wheel is saturated. Allow wheel to dry. Do not leave idle wheel immersed in water. Loose fasteners. -
Page 17: Replacement Parts
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 18: 727100 Wet Sharpener Assembly - Exploded View
12.1.1 727100 Wet Sharpener Assembly – Exploded View... -
Page 19: 727100 Wet Sharpener Assembly - Parts List
50 ....727000-150 ....Lock Nut ......................1 51 ....727000-151 ....Torque Adjusting Knob .................. 1 52 ....727000-152 ....Cylinder Magnet .................... 1 53 ....JET-113 ..... JET Logo (not shown)..........113 x 47 mm ....1... -
Page 20: 727001 Rotational Base Assembly (Optional) - Exploded View
12.2.1 727001 Rotational Base Assembly (Optional) – Exploded View 12.2.2 727001 Rotational Base Assembly (Optional) – Parts List Index No. Part No. Description Size ....727001 ...... Rotational Base Assembly (#1 thru 7) ............. 1 ....727001-101 ....Cross Pan Head Screw with flat washer ....M4x10 ......8 2 .... -
Page 21: Diamond Truing Tool (Optional Accessory)
12.3 DT-1 Diamond Truing Tool (Optional Accessory) Stock # 727003 Index No Part No Description Size 1....727003-101 ....Lock Screw ....................1 2....727003-102 ....Diamond Tip ....................1 3 ....727000-108 ....Knob w/M6 Bolt Insert ................... 2 4 .... -
Page 22: Knife Jig (Optional Accessory)
12.4 KJ-1 Knife Jig (Optional Accessory) Stock # 708019 Index No Part No Description Size 1....708019-101 ....Knob ......................1 2....708019-102 ....Adjusting Knob ....................1 3 ....708019-103 ....Top Plate ....................... 1 4 .... -
Page 23: Gouge Jig (Optional Accessory)
12.5 GJ-1 Gouge Jig (Optional Accessory) Stock # 708020 Index No Part No Description Size 1....708020-101 ....Knob ......................1 2 ....708020-102 ....Brass Insert ....................1 3 ....708020-103 ....Body ......................1 4 .... -
Page 24: Lkj Long Knife Jig (Optional Accessory)
12.6 LKJ Long Knife Jig (Optional Accessory) Stock # 727006 Index No Part No Description Size 1....727006-101 ....Top Plate ....................... 1 2 ....708019-102 ....Adjusting Knob ....................1 3 ....708019-101 ....Knob ......................1 4 .... -
Page 25: Stj-1 Carving Tool Jig (Optional Accessory)
12.7 STJ-1 Carving Tool Jig (Optional Accessory) Stock # 708025 Index No Part No Description Size 1....708016-101 ....Knob ......................1 2 ....708025-102 ....Body ......................1 3 ....708025-103 ....Brass Insert ....................1 STJ-1 –... -
Page 26: Swgj-1 Side Wheel Grinding Jig (Optional Accessory)
12.9 SWGJ-1 Side Wheel Grinding Jig (Optional Accessory) Stock # 727012 Index No Part No Description Size 1....727000-108 ....Knob w/M6 Bolt Insert ................... 2 2 ....727012-102 ....Holder ......................1 3 ....727012-103 ....Bar ......................... 1 ... -
Page 27: Sej-1 Straight Edge Jig (Optional Accessory)
12.11 SEJ-1 Straight Edge Jig (Optional Accessory) Stock # 727014 Index No Part No Description Size 1....727014-101 ....Bushing ......................2 2 ....727014-102 ....Bottom Plate ....................1 3 ....727014-103 ....Knob ......................2 4 .... -
Page 28: Pcj-1 Plane Camber Jig (Optional Accessory)
12.13 PCJ-1 Plane Camber Jig (Optional Accessory) Stock # 727016 Index No Part No Description Size 1....727014-104 ....Top Plate ....................... 1 2 ....727014-103 ....Knob ......................4 3 ....727016-103 ....Rubber Rest ....................2 4 .... -
Page 29: Amd-1 Angle Measuring Device (Optional Accessory)
12.14 AMD-1 Angle Measuring Device (Optional Accessory) Stock # 727017 Index No Part No Description Size 1....727017-101 ....Bottom Rubber Grip ..................1 2 ....727017-102 ....Angle Measuring Body .................. 1 3 ....727017-103 ....Top Rubber Grip .................... 1 4 .... -
Page 30: Tool Rest (Optional Accessory)
12.15 TR-1 Tool Rest (Optional Accessory) Stock # 727018 Index No Part No Description Size 1....727000-108 ....Knob w/M6 Bolt Insert ................... 1 2 ....727018-102 ....Tool Rest ....................... 1 ... -
Page 31: Sae-1 Support Arm Extension Assembly (Optional Accessory)
12.17 SAE-1 Support Arm Extension Assembly (Optional Accessory) Stock # 727020 Index No Part No Description Size 1 ....727020-101 ....Extension Bar ....................1 2 ....727020-102 ....Extension Bar Base ..................1 3 ....727000-108 ....Knob w/M6 Bolt Insert ................... 2 ... -
Page 32: Electrical Connections For Jws-10 Wet Sharpener
13.0 Electrical connections for JWS-10 Wet Sharpener... -
Page 33: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. - Page 34 This page intentionally left blank.
- Page 35 This page intentionally left blank.
- Page 36 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
