Page 1: Washing Machine

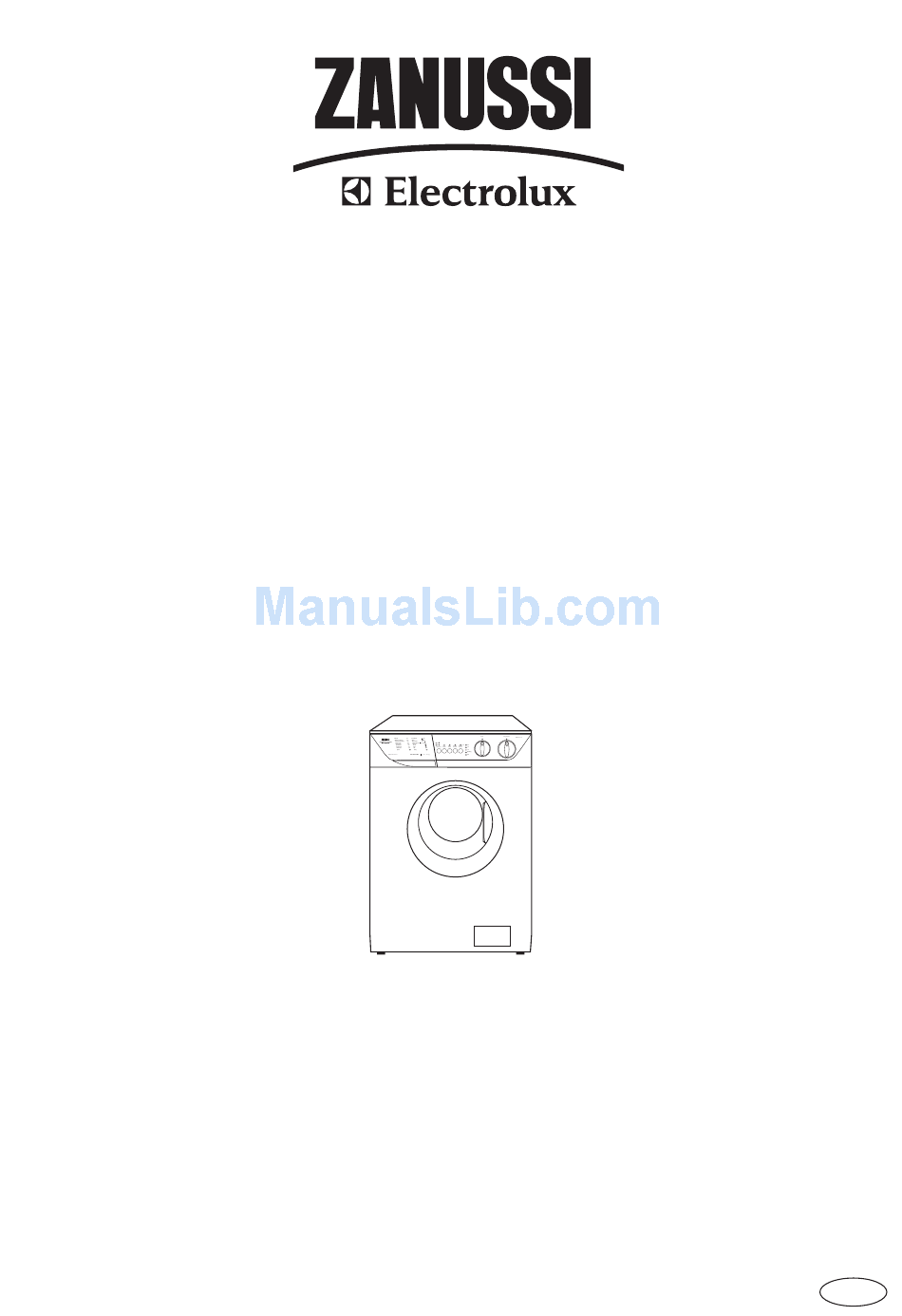

WASHING MACHINE ZWF 1021W ZWF 1221W INSTRUCTION BOOKLET 35.292.967/0... -
Page 2: Important Safety Information
Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine Zanussi spare parts. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Your New Washing Machine Description of the Appliance Detergent dispenser drawer The Control Panel Programme information Operating Sequence Washing 5 kg of white cotton at 95°C Load the laundry Measure out the detergent and the fabric softener Select the required programme Select the spin speed or option “RINSE HOLD”... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. The programme selector dial combines the function of programme and temperature selection, making it easier to set the programme. The programme progress display shows the delay start, the functioning of the machine and the end of the programme . -
Page 5: Description Of The Appliance
Description of the Appliance 1Detergent dispenser drawer 2 Programme guide 3 Control panel 4 Door opening handle 5 Drain pump 6 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener... -
Page 6: The Control Panel
The Control Panel ZWF 1021W 1 Detergent dispenser drawer Programme Option buttons Depending on the programme, different functions can be combined. These must be selected after choosing the desired programme and before depressing the Start/Pause button. When these buttons are pressed, the corresponding pilot lights come on. -
Page 7: Programme Progress Display
• set the washing machine to PAUSE by pressing the Start/Pause button; • press the Delay Start button once, the light relevant to the selected delay goes off . • press the Start/Pause button again to start the programme. Important! The selected delay can be changed only after selecting the washing programme again. -
Page 8: Programme Information
Position 60E and E40 corresponds to the ENERGY SAVING programme for cotton, position wash and position O to Reset programme/Switching OFF of the machine. At the end of the programme the selector dial must be turned to position O, to switch the machine off. ATTENTION! If you turn the programme selector dial to another programme when the machine is working, the lights of... -
Page 9: Operating Sequence
Operating Sequence Before the first wash, we recommend that you pour 2 litres of water into the main wash compartment the detergent drawer in order to activate the ECO valve. Then run a cotton cycle at 95°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. -
Page 10: Select The Required Option
6. Select the Delay Start Before you start the programme, if you wish to delay the start, press the Delay Start button repeatedly, to select the desired delay. The relevant light illuminates. 7. Start the programme Before starting up the machine check that: the appliance is plugged in the water supply tap is turned on the drain hose is correctly and securely positioned... -
Page 11: Washing 2.5 Kg Of Mixed Fabrics At 40°C
WASHING 2.5 KG OF MIXED FABRICS AT 40°C Suppose you have 2.5 kg of lightly soiled mixed fabrics to wash. They are rather delicate fabrics and should not be washed at a high temperature. 1. Load the laundry Open the door by carefully pulling the door handle outwards. -
Page 12: Start The Machine
7. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply tap is turned on the drain hose is correctly and securely positioned the door and the detergent dispenser drawer are closed. To start the selected programme, press the button;... -
Page 13: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel Linen hand towel... -
Page 14: Which Detergent
Which detergent?... To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines. To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates. -
Page 15: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 16: Washing Programmes
Washing Programmes Programmes for cotton and linen and synthetics Degree of soil Wash programme/ and type of laundry Washing symbol For heavy soiled cotton Whites items. White cotton, for example normally soiled Whites work garments, sheets, Economy household linen, underwear, towels. Coloured cotton or Coloureds linen fabrics, normally... -
Page 17: Washing Programmes
Washing Programmes Programmes for delicates Wash programme/ Degree of soil Washing symbol and type of laundry Delicate fabrics, for Delicates example curtains Special programme for Handwash hand washing fabrics Specially tested programme for wool Wool garments bearing the “Pure new wool, non- Wool Cold shrink, machine washable”... -
Page 18: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 19: Cleaning The Water Inlet Filter
• When no more water comes out, unscrew the pump cover and remove it. Always keep a cloth nearby to dry up spillage of water when removing the cover. Remove any objects from the pump impeller by • rotating it. •... -
Page 20: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. During machine operation it is possible that the “End” light flashes to indicate that the machine is not working. •... -
Page 21: Service And Spare Parts
For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk. For Customer Service in Ireland please contact us at the address below: Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Tel: +353 (0)1 4090751 Email: service.eid@electrolux.ie... -
Page 22: Guarantee Conditions
Guarantee Conditions Standard guarantee conditions We, Zanussi Electrolux, undertake that if, within 12 months of the date of the purchase, this ZANUSSI ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or... -
Page 23: Installation Instructions
Depth Minimum Maximum 800 kP88888888 0.80 Cotton, linen Synthetics Delicate fabrics Wool and Handwash Maximum 1000 rpm (ZWF 1021 W) 1200 rpm (ZWF 1221 W) Energy Water Times 85 cm 60 cm 62 cm 230-240 V/50 Hz 2050 W (10 A) 0.05 MPa (0.5 bar) -
Page 24: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance You are advised to keep all the packaging for re-use in case the appliance has to be transported again. Unscrew and remove the three rear transit bolts (using a spanner). -
Page 25: Water Inlet
Water inlet Connect the hose to a tap with a 3/4” thread. Do not use previously used hoses for water connection. Installation should comply with local water authority and building regulations’ requirements. The appliance must be connected to a cold water supply. -
Page 26: Levelling
2. Onto a sink outlet spigot. If the outlet spigot has not been used before, remove any blanking plug that may be in place. Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose (see diagram) to prevent waste from the sink entering the washing machine. -
Page 27: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate. - Page 28 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
