Summary of Contents for Zanussi FL 12

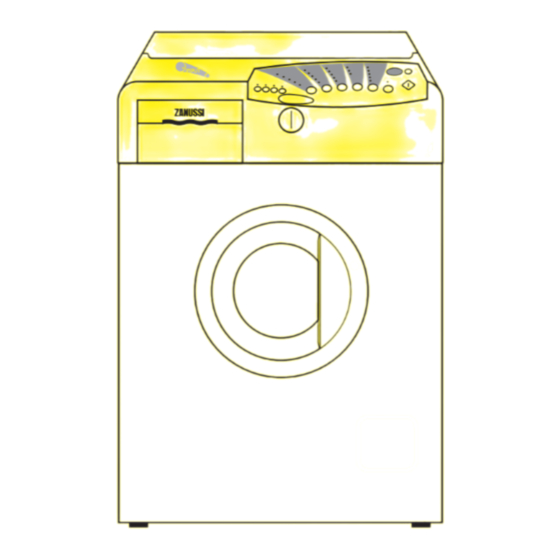

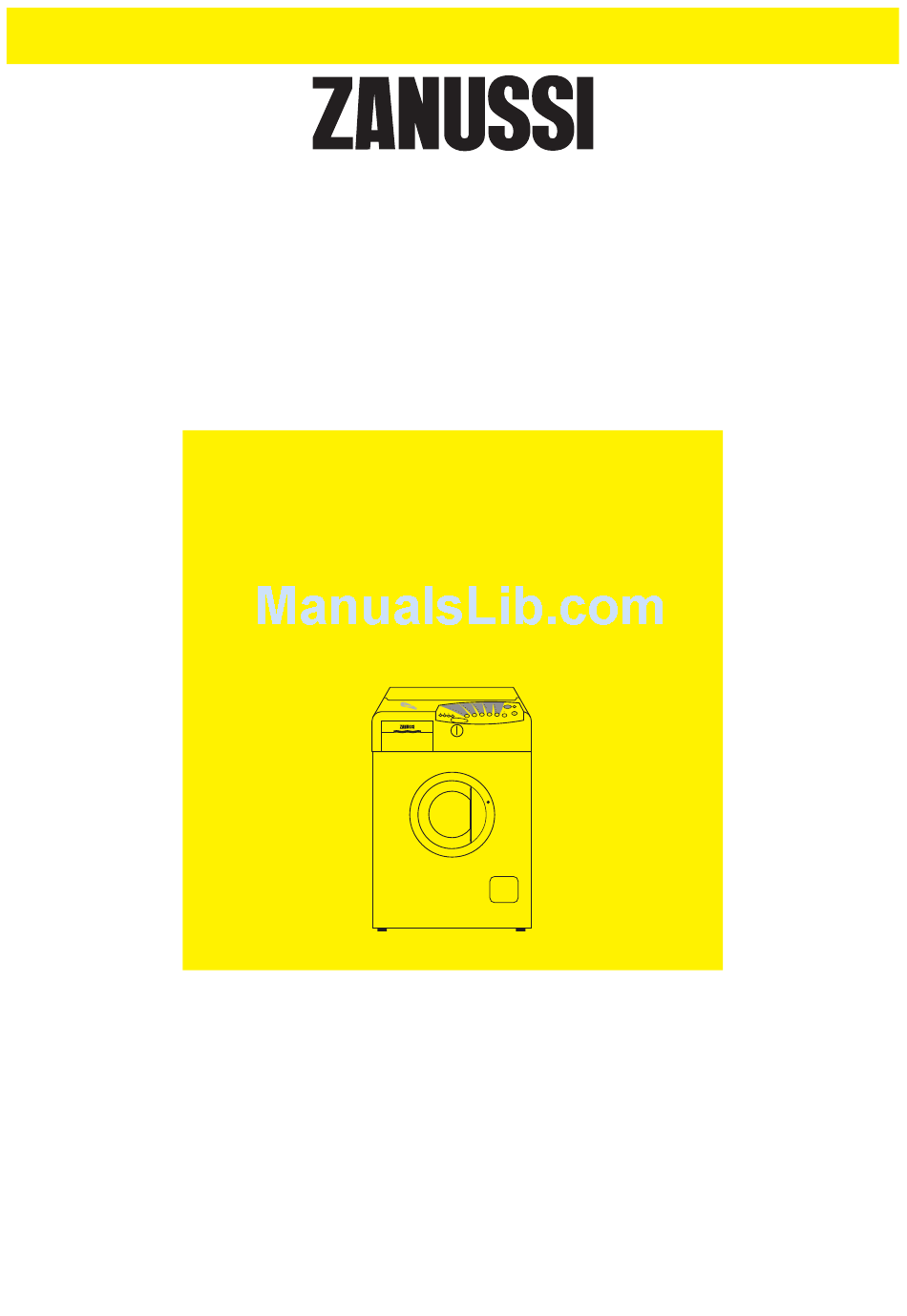

- Page 1 W ASHING MACHINE FL 12 FL 15 INSTRUCTION BOOKLET 124979393...
-
Page 2: Important Safety Information
Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Zanussi Service Force Centre. Always insist on genuine Zanussi spare parts. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Your New Washing Machine Description of the Appliance Door locked indicator light Detergent dispenser drawer The Control Panel Altering a programme which is running Opening the door after the programme has started Operating sequence Load the laundry Measure out the detergent Add the fabric softener, if required... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine, fitted with the Zanussi “JET SYSTEM”, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 “Memory” buttons 3 “ON/OFF-Cancel” button 4 “Fabrics” button 5 “Temperature” button 6 “Spin speed” button 7 “Options” button 8 “Special Programmes” button 9 “Freshen up” button 10 “Time to finish” display 11 “Delay start”... -
Page 6: The Control Panel
The Control Panel ON - OFF CANCEL 1 “Memory” buttons and corresponding pilot lights A wash programme can be stored and recalled by pressing these buttons. To store: select the required programme using the various buttons available (see section “Operating sequence”), then start the machine by pressing the START/PAUSE button. - Page 7 - for cottons (White cotton, Coloured cotton) the maximum spin speed is 1500 rpm for FL 15 and 1200 rpm for FL 12; - for synthetics and wool (Synthetic, Wool) the maximum spin speed is 1000 rpm for FL 15 and 900 rpm for FL 12;...
- Page 8 7 “Special Programmes” button Pressing this button selects the following options: - EXTRA RINSE: can be selected with all programmes except the wool programme. The machine carries out 4 rinses instead of 3. This option is recommended for people who are sensitive to detergents and in areas where the water is very soft.
-
Page 9: Altering A Programme Which Is Running
10 START/PAUSE button This button has three functions: a) Start After having selected the required wash programme, press this button to start the machine; the display stops flashing. b) Pause To interrupt a programme which is running, press the START/PAUSE button: the figures displayed will start to flash. -
Page 10: Operating Sequence
Operating Sequence Before your first wash, we recommend that you run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. -
Page 11: Select The Required Programme
5. Select the required programme Press the FABRICS button to select the required programme; the corresponding pilot light comes on. 6. Select the temperature Press the TEMPERATURE button to select the required temperature; the corresponding pilot light comes on. 7. Select spin speed or Rinse Hold option Press the SPIN SPEED button to select the spin speed or the RINSE HOLD option;... -
Page 12: Start The Programme
11. Start the programme To start the selected programme, press the START/PAUSE button; the display stops flashing and the door pilot light comes on to indicate that the door locking device is engaged. The programme starts after about 30 seconds. 12. -
Page 13: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel Linen hand towel... -
Page 14: Which Detergent To Use
Which detergent?... To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines. To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates. -
Page 15: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 16: Washing Programmes
SPIN handwash garments RINSE HOLD Progr. time Max. load mins kg (FL 15) 4.5 kg (FL 12) kg (FL 15) 4.5 kg (FL 12) kg (FL 15) 4.5 kg (FL 12) kg (FL 15) 4.5 kg (FL 12) 2 kg... -
Page 17: Special Programmes
It is not necessary to have a head of lather on the water. Additional functions 4.5 kg (FL 12) SPIN SPEED RINSE HOLD 4.5 kg (FL 12) -
Page 18: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we normally use contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 19: Cleaning The Filter
Cleaning the filter The water drain filter A clean filter is important for the correct functioning of the machine, and should therefore be cleaned after every washing programme. Open the filter door and place a container underneath to catch any spillage. If the filter is blocked and the machine is unable to drain you will need to drain the water manually from the machine at this stage. -
Page 20: Something Not Working
Something Not Working In the event of operating problems, you are advised to read the following chart carefully before calling the service centre. The following alarm codes may be displayed: - E00: problem with the water supply - E10: problem with water draining - E20: door open Once the problem has been eliminated, press the START/PAUSE button to restart the programme. -
Page 21: Service And Spare Parts
Zanussi Service Force Centre. Service & Spare Parts If you require an engineer or wish to purchase spare parts contact your local Zanussi Service Force Centre by telephoning: 0870 5929929 Your telephone call will be routed to the Service Centre covering your post code area. -
Page 22: Peace Of Mind For Twelve Months
Standard guarantee conditions We, Zanussi Limited undertake that if, within 12 months of the date of the purchase, this Zanussi appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our... -
Page 23: Installation Instructions
220-240 V/50 Hz 2200 W (13A) 0.48 bar (4.8 N/cm 07.6 bar (76 N/cm 5 kg (11 lbs) (FL 15) 4.5 kg (10 lbs) (FL 12) 2 kg (4.5 lbs) 2 kg (4.5 lbs) 1 kg (2.2 lbs) 1500 rpm (FL 15) 1200 rpm (FL 12) 0.94 kWh (FL 15) -
Page 24: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance. Before starting the machine up, the packing must be removed as follows. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the rear right bolt. -
Page 25: Positioning
Positioning Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor. -
Page 26: Levelling
Important Before connecting up the machine to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected in the pipes. Levelling Level the washing machine by raising or lowering the feet. -
Page 27: Electrical Connections
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance’s rating plate.
