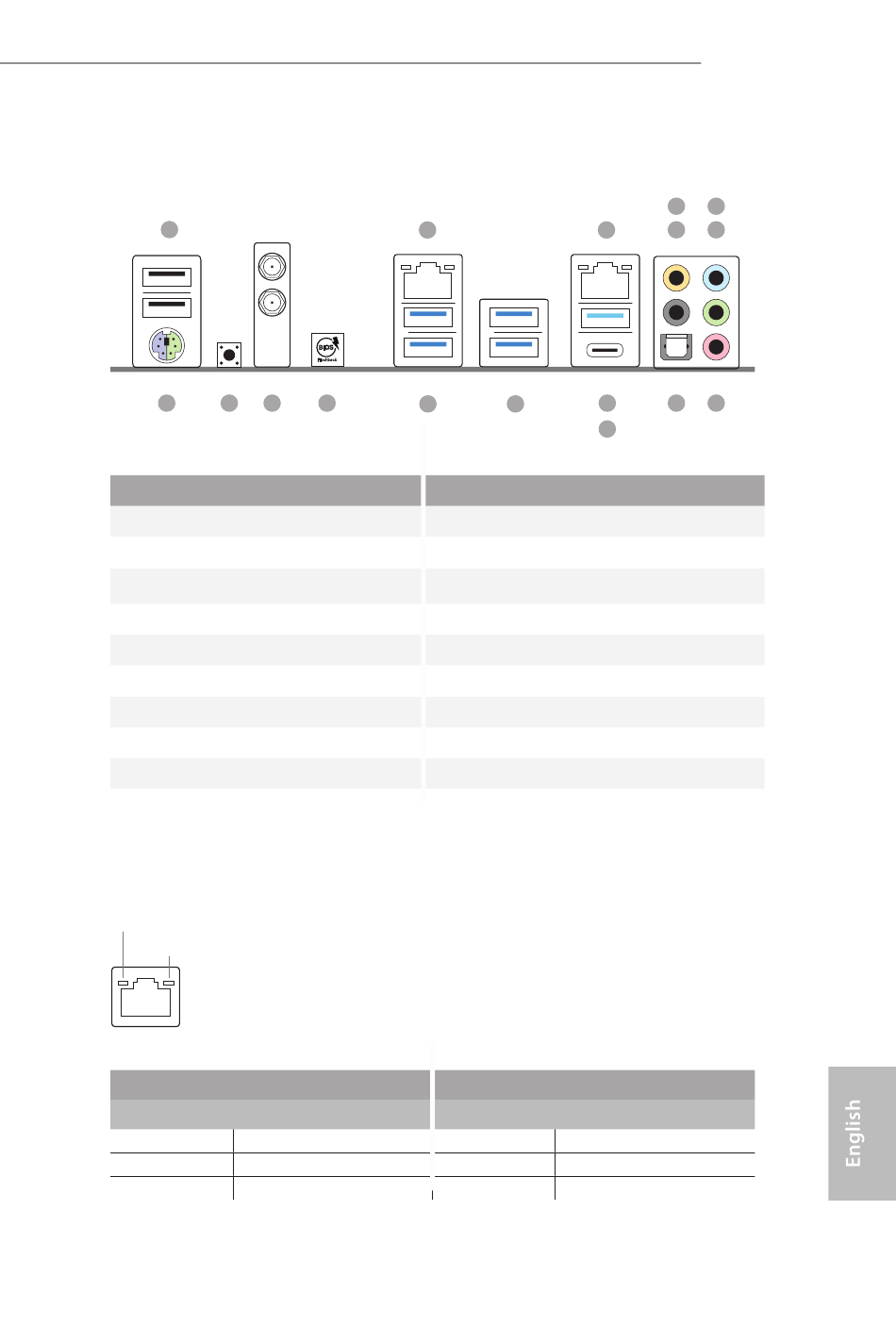

I/O Panel
1
17
16
15
No. Description
1
USB 2.0 Port (USB12)
2
LAN RJ-45 Port (Intel® I211AT)*
3
LAN RJ-45 Port (Intel® I219V)*
4
Central / Bass (Orange)
5
Rear Speaker (Black)
6
Line In (Light Blue)
7
Front Speaker (Lime)**
8
Microphone (Pink)
9
Optical SPDIF Out Port
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Description
Off
No Link
Blinking
Data Activity
On
Link
2
14
13
No.
Description
10
USB 3.1 Type-A Port (USB31_TA_1)
11
USB 3.1 Type-C Port (USB31_TC_1)
12
USB 3.0 Ports (USB3_34)
13
USB 3.0 Ports (USB3_12)***
14
Flashback Switch
15
Antenna Ports
16
Clear CMOS Switch
17
PS/2 Mouse/Keyboard Port (PS2_KB1)
Speed LED
Status
Orange
Orange
Green
4
3
5
12
10
9
11
Description
10Mbps connection
100Mbps connection
1Gbps connection
X299 Taichi
6
7
8
3
