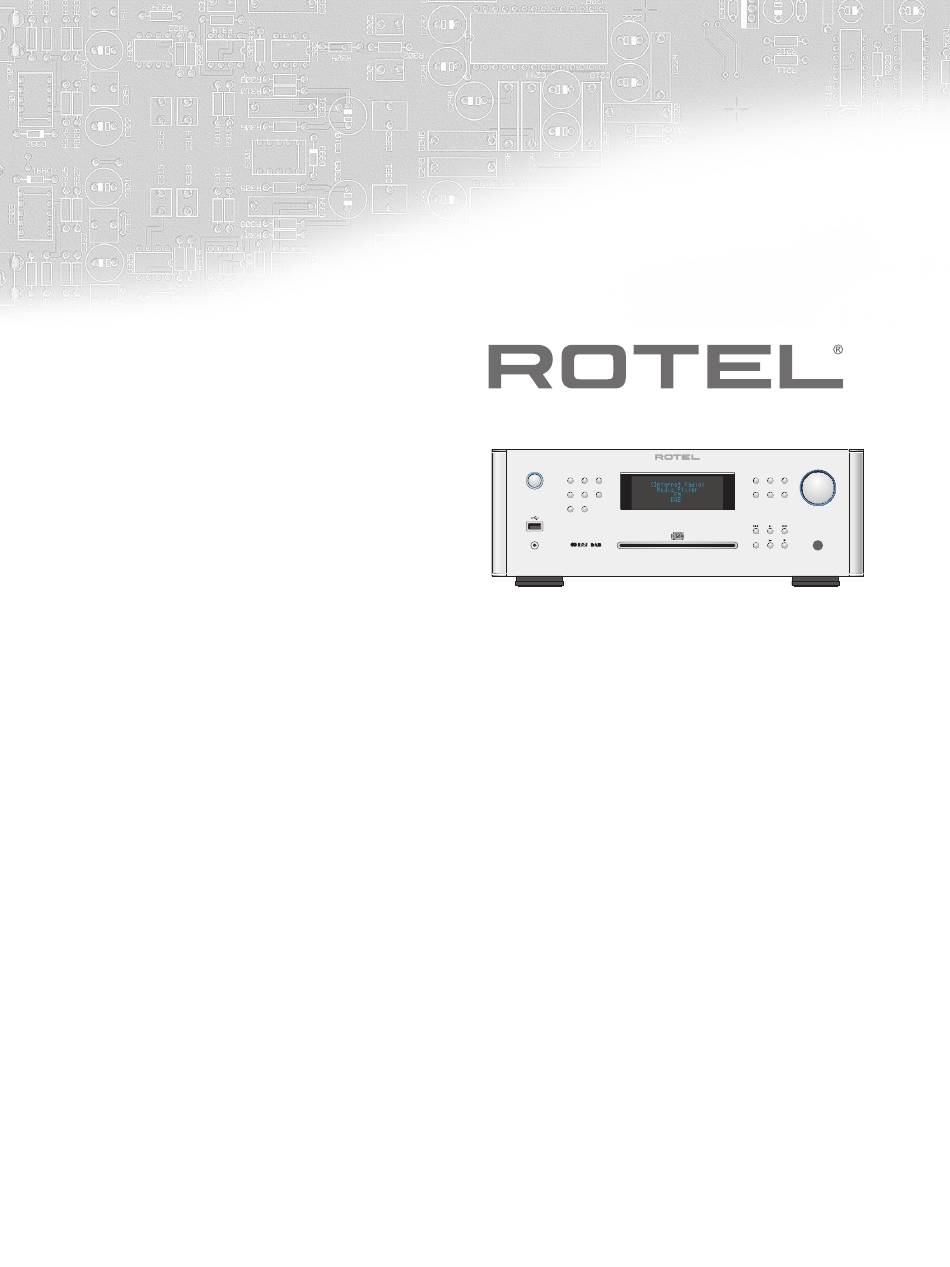

  • Page 1 RCX-1500 STANDBY QUEUE SELECT PREV i-RADIO NETWORK BACK REPLY NEXT AUX 1 AUX 2 PHONES EJECT RCX-1500 Stereo Compact Disc Receiver Owner’s Manual Manuel de l’utilisateur Bedienungsanleitung Manual de Instrucciones Gebruiksaanwijzing Manuale di istruzioni Instruktionsbok àÌÒÚÛ͈Ëfl ÔÓθÁÓ‚‡ÚÂÎfl Register your product at...
  • Page 2 AUX 1 AUX 2 PHONES EJECT Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol...

  • Page 3: Important Safety Instructions

    Use only accessories specified by the manufacturer. • Consult your authorized Rotel retailer for assistance. Use only with a cart, stand, rack, bracket or shelf system recommended by Rotel. Use caution when moving the unit in a stand or rack to avoid injury from a tip-over. Use Class 2 wiring for speaker connections to ensure proper installation and minimize the risk of electrical shock.
  • Page 4 RCX-1500 Stereo Compact Disc Receiver Figure 1: Controls and Connections Commandes et Branchements Bedienelemente und Anschlüsse Controlli e connessioni Controles y Conexiones De bedieningsorganen en aansluitingen Funktioner och anslutningar é„‡Ì˚ ÛÔ‡‚ÎÂÌËfl Ë ‡Á˙ÂÏ˚ RCX-1500 STANDBY i-RADIO QUEUE SELECT PREV NETWORK...
  • Page 5 English Button Series Function Explanation : STANDBY mode button, are used to switch the STANDBY mode on or off. : Source selection buttons, are used to switch your desire source. : Back to upper level menu MUTE VOLUME : Call out preset/memorized list of tracks, songs, stations, etc against specified mode. : To call out special Internet Radio menu on Internet Radio mode.
  • Page 6 RCX-1500 Stereo Compact Disc Receiver Figure 2: Hook-up Illustration Branchements principaux Diagrama de Conexiones Schema di collegamento Anschlussdiagramm De in- en uitgangsaansluitingen Inkoppling Подключение RCX-1500 STANDBY QUEUE SELECT PREV i-RADIO BACK REPLY NEXT NETWORK AUX 1 AUX 2 PHONES EJECT...

  • Page 7: Important Notes

    Bij het maken van de verbindingen: Zorg dat niet alleen de RCX-1500, maar de gehele installatie uitstaat, als nog niet alle verbindingen gemaakt zijn. Zorg dat niet alleen de RCX-1500, maar de gehele installatie ook uitstaat, als u verbindingen gaat wijzigen.

  • Page 8: Table Of Contents

    About Rotel ........

  • Page 9: About Rotel

    Placement All of us at Rotel thank you for buying this product. We are sure it will Place the RCX-1500 on a solid, level surface away from sunlight, heat, bring you many years of enjoyment.

  • Page 10: Overview - The Rotel Internet Radio Tuners/Digital Gateway Products

    Rotel which you will need to copy to the website registration present DAB and FM radio services you will be familiar with the way form.

  • Page 11: Ac Power And Control

    PRE OUT Be sure the power switch on the front panel of the RCX-1500 is turned The RCX-1500 can send analog signals to a second amplifier through off. Then, plug one end of the cord into the AC power connector on the connectors labeled PRE OUT.

  • Page 12: Polarity And Phasing

    Plug in the USB Wi-Fi dongle to the rear USB port and push the Route the wires from the RCX-1500 to the speakers. Give yourself STANDBY button to power up this unit. The display on the front will light enough slack so you can move the components to allow access to the...

  • Page 13: Choosing A Radio Station

    English Choosing A Radio Station Internet Radio Station Playing After connecting to a station, the display will show station name, type Once a network is found and the network connections made, The top- of audio file and bit rate. level menu will be displayed, please select “Internet Radio”, the display will shows as BBC RADIO BBC RADIO...

  • Page 14: Media Player Quick Start

    Setting up UPnP Server in PC 1. Use Windows Media Player 11(or 12 if you use Windows 7)to setup 2. RCX-1500 will list the options or folders available. This varies the PC as an UPnP Sever, click the ‘Library’ tab from Windows Media depending on the setup of your music server, and version of software Player 11 and select ‘Media Sharing’...

  • Page 15: Clear Queue

    5. Push and hold the STOP . button for 5 seconds to safely remove the USB device from the unit. Note: The Rotel unit will operate with iPhone 3GS, iPhone 3G, iPod Classic, iPod touch 2G, iPod Nano 2G, iPod Nano 3G, iPod Nano...

  • Page 16: Fm Radio Quick Start

    RCX-1500 Stereo Compact Disc Receiver FM RADIO Quick Start DAB RADIO Quick Start Make sure that your local area can receive Digital Audio Broadcast Before listening to FM radio, make sure that the FM antenna have (DAB) broadcasting signal. Before using this feature, please go to Settings been properly connected, and the correct FM format has been selected.

  • Page 17: Settings Overview

    Once the network is found, the display will show the network ID. Turn Register the knob to select, push to confirm. This will display a key that can be used to register the unit on the Rotel < Scan for networks > Radio Customer portal: www.rotelradio.com...

  • Page 18: Configure "My Stuff

    ‘My Stations’, ‘My Streams’, ‘My Podcast’ and ‘My Radios’. the TRACK buttons or the DIRECT ACCESS buttons (see below) before pressing the PLAY button to start playing a different selection. Follow the instructions on the website to personalize your RCX-1500 STOP Button menu.

  • Page 19: Search Buttons

    To begin a program: 1. Insert a disc in the front panel slot. The RCX-1500 will read the contents of the disc. You may press the PLAY / button if you would like to listen to the tracks while you program them.

  • Page 20: Review Button

    The icon appears in the Display. Press the button a second time and the RCX-1500 will repeat the entire disc. A second icon appears in the Display. Press the button a third time to cancel the REPEAT function.
  • Page 21 1. Check the cables between the RCX-1500 output and loudspeakers, be sure they are connected properly. Refer to Fig. 2. The RCX-1500 is set from the factory to operate with remote code 1. If you find that the RCX-1500 remote is conflicting with other Rotel products, 2.
  • Page 22 RCX-1500 Stereo Compact Disc Receiver Glossary Network adapter – A hardware device, installed inside computers that connect computer devices together to create a network. Bit rate – Speed of data transfer – how many bits of information are sent each second.
  • Page 23 50dB Quieting Sensitivity 27.2dBf Signal to Noise Ratio (at 65 dBf) 63 dBf (mono), 60 dBf (stereo) Rotel and the Rotel HiFi logo are registered trademarks of The Rotel Co., Ltd. Harmonic Distortion (at 65 dBf) 0.2% (mono), 0.3% (stereo) Tokyo, Japan.
  • Page 24 The Rotel Co. Ltd. Endo TN Building 2F., 6-12-21, Meguro-Honcho, Meguro-Ku, Tokyo 152-0002 Japan Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Dale Road Worthing, West Sussex BN11 2BH England...
