Rinnai INFINITY R1385 Installation Manual

INFINITY pipe cover
Installation guide
Before installation check for damage, do not install any damaged items, and check all components
have been supplied. Read these instructions to get an overview of the steps required before
starting.
With Rinnai's current range of water heaters, assembly can be done by the homeowner—this is
because assembly does not require taking the cover off the water heater.

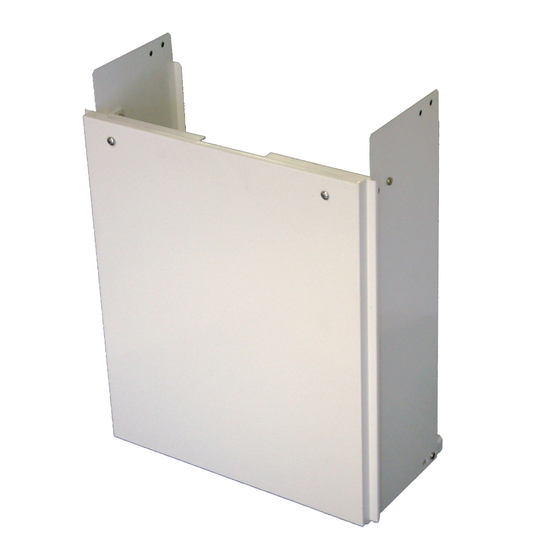

The pipe cover is approximately the same width and depth of the water heater and conceals
approximately 450 mm of pipework below the unit.
Pipe cover Suitable for
R1385 Rinnai INF A16-A26
Rinnai INF VT16-VT26*
R1402SC Rinnai INF HD250
R1408 Rinnai INF EF24
R1408SC
Rinnai INF HD200 / HDi200
R1416 Rinnai INF EF26
* Discontinued models
Important
Before installing the pipe cover turn off the power, water, and gas to the water heater.
IMPORTANT
Assembly

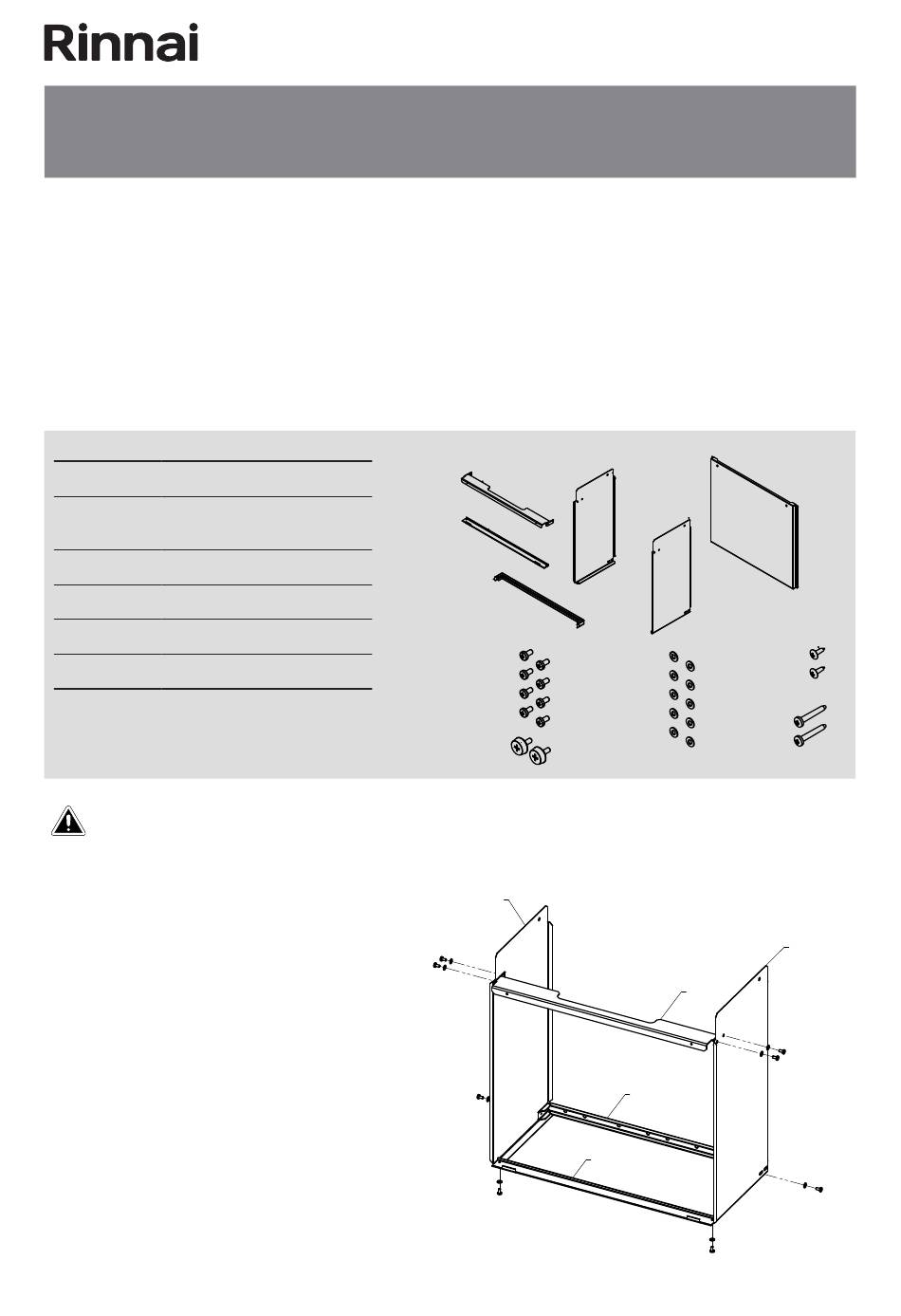

1. Assemble the top frame to the right and
left side panels with four M4 screws and
washers.
2. Secure the bottom bracket to the left
and right panels with two M4 screws and
washers.
3. Secure the rear bracket to the left and right
panels with two M4 screws and washers.
Rinnai New Zealand Ltd (0800 746 624)
Side panel LH
Top frame
Bottom bracket
Rear bracket
Screw M4 x 8
SS (x8)
Screw M4 INF
pipe cover (x2)
Side panel LH
Bottom bracket
1 of 2
Front panel
Side panel RH
PK screw #8 x 6
Nylon washer M4
SS (x 2)
(x10)
PK screw #10 x 40
ZP (x 2)
Side panel RH
Top frame
Rear bracket
INF pipe cover installation 9509-F I 06-20
