Hardware Requirement; Thunderbolt 3 Test - Intel Terasic FLIK Manual

2.1

Hardware Requirement


A Host PC with Thunderbolt 3 Port is required to perform FLIK function Tests.
The PC should be:

Built-in Thunderbolt 3 Port or with Thunderbotl3 Card Installed.

Windows/Linux Installed

Thunderbolt 3 driver installed

A FLIK kit

A Thunderbolt 3 Cable as shown in
2.2

Thunderbolt 3 Test

Below shows the procedure when the FLIK is first time to plug into the thunderbolt 3
port of the Host PC.
1. Make sure your Host PC had installed Thunderbolt 3 Driver.
2. Plug 12V DC to FLIK to power on the FLIK.
3. Connect FLIK and host PC by a Thunderbolt 3 cable.
FLIK Getting
Started Guide
Figure 2-2

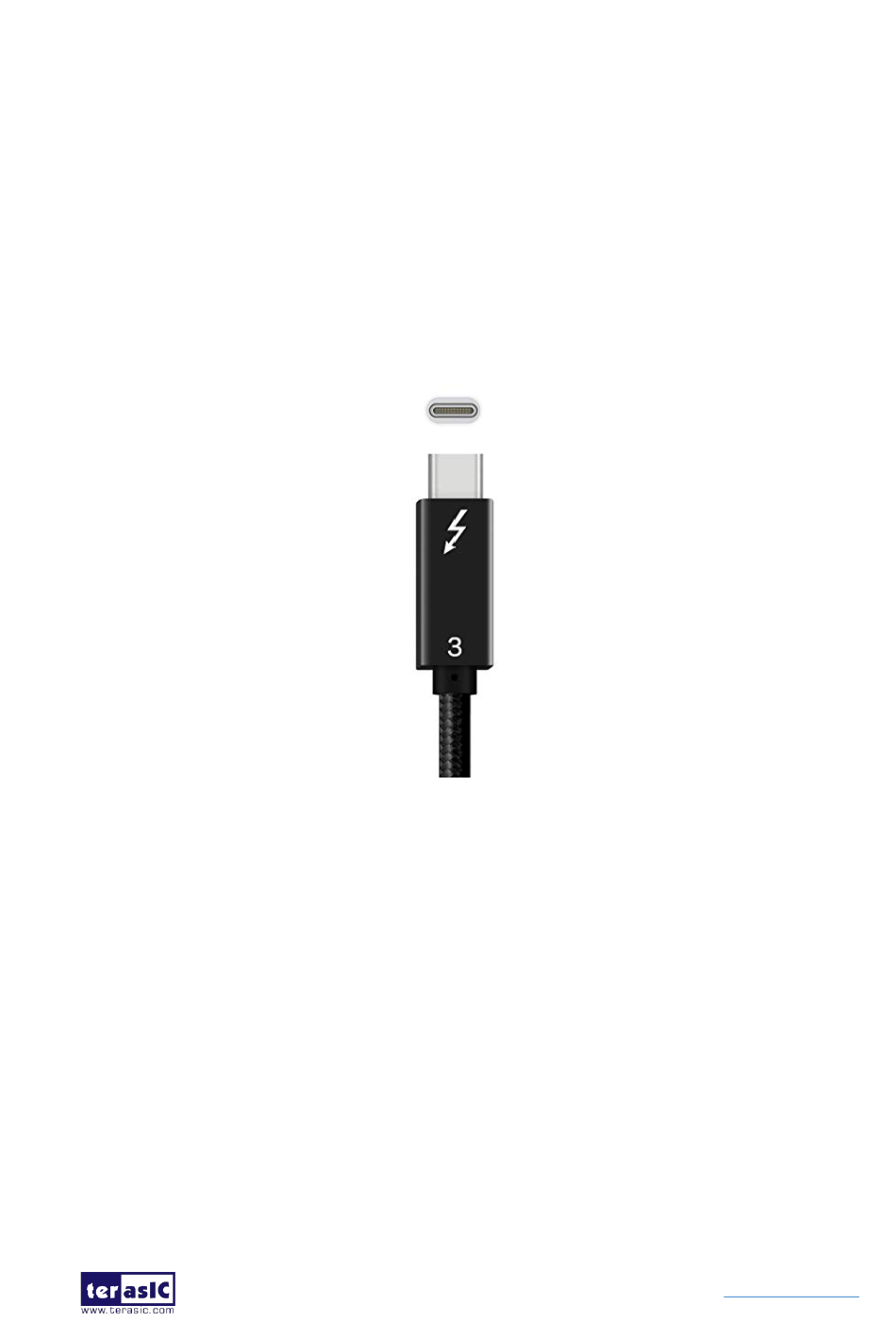

Figure 2-2 Thunderbolt 3 Cable
